3CX JCB 991/20030 Hydraulic CYL Seal Kit 60MM Rod x 110MM CYL Boom STD Lift Kits
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | 991/20030 JCB 3CX |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
Supply Ability | 1500 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | JCB Cylinder Seal Kit | Part Number | 991/20030 |
---|---|---|---|
CYL | 110MM | Rod | 60MM |
C.A.Tegory | Seal Kits, Repair Parts | Advantage | Long Service Life And Low Price |
High Light | JCB Seal Kit,Hydraulic Cylinder Seal Kit,Boom STD Lift Kits |
3CX JCB 991/20030 Hydraulic CYL Seal Kit 60MM Rod x 110MM CYL Boom STD Lift Kits
Product Name | JCB Cylinder Seal Kit |
Model Number | JCB 3CX |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
Part Number | 991/20030 |
Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
Size | Standard size |
Applicable Industries | Machinery repair shops, construction works, retail, other |
CertifiC.A.Tion | ISO9001 |
Condition | 100% new |
C.A.Tegory | Seal kits, repair parts |
Warranty | Unavailable |
OEM and ODM | Welcome |
Advantage | Long service life and low price |
Preservation Notice | Closed, dry and avoid the sun |
CYL | 110MM |
Rod | 60MM |
Product SpecifiC.A.Tion:
JCB 991/20030 hydraulic cylinder seal kit
991/20030 fits OEM cylinder, please verify kit before ordering.
991/20030 use with cylinder numbers: 561-70063, 561-70209, 561-70210
Rod seal: U-seal
Piston seal: piston seal
Rod: 60.00 MM
Bore: 110.00 MM
Fits: Loader/ Backhoe
3CX Loader/ Backhoe (Boom Std Lift - S/N 0930000-0959999 2001-2005; 0960000-1709999 2004-2010)
3CX-2WD Loader/ Backhoe (Boom Std Lift - S/N 0930000-0959999 2002-2005)
3CX-4WD Loader/ Backhoe (Boom Std Lift - S/N 0930000-0959999 2002-2005)
3CX-4WD Turbo Loader/ Backhoe (Boom Std Lift - S/N 0480988-0499999; 0920001-0929999)
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union or ESCROW through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Related Parts Of 3CX JCB 991/20030 Hydraulic CYL Seal Kit:
Number | Part Number | QTY. | Product Name |
1 | 332/F3000 | [1] | Kit - end cap Service |
2 | 590/40091 | [1] | Rod piston |
2A | 808/00303 | [1] | Bush split-55 outside dia |
3 | 595/27704 | [1] | Head piston |
4 | 826/01180 | [1] | Dowel |
5 | 2411/7920 | [2] | Ring wear 110 x 14.8 |
6 | 2411/1139 | [1] | Seal piston 110 x 7.8 |
7 | 561/70228 | [1] | Cylinder 110 x 43 |
7A | 808/00309 | [2] | Bearing liner 50.94 x 55.93 x 45 |
12 | 1450/0001 | [1] | Nipple grease, straight 1/8 BSP |
25 | 25/221624 | [1] | Piston pilot |
26 | 25/954600 | [2] | Cartridge |
42 | 816/90499 | [2] | Cap G1/4 HBU special |
50 | 991/20030 | [0] | Kit Seal |

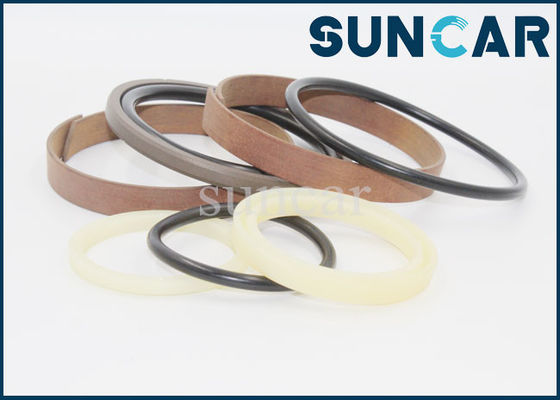

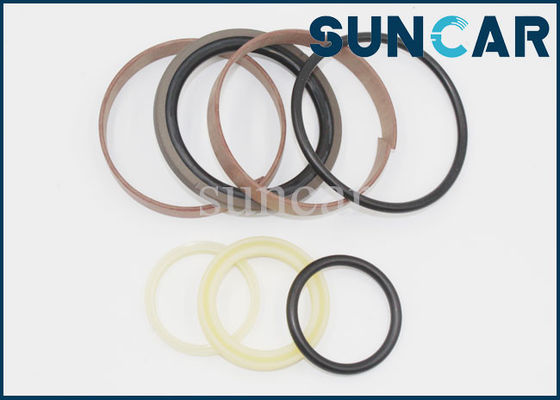

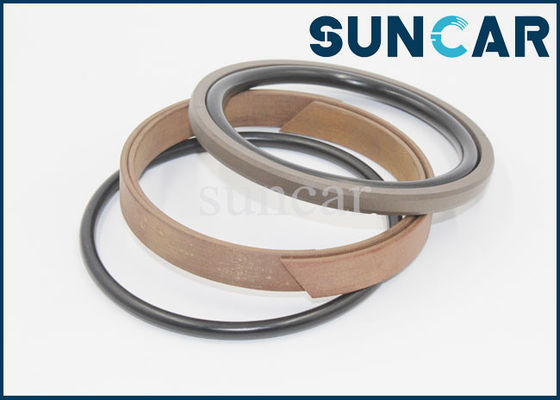

Product Image:
