CX700B CX700 CASE LZ006970 Boom Rebuild Kit Hydraulic Cylinder Seal Kit

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	LZ006970 CASE CX700B, CX700
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, Paypal, T/T, Transfer
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Hydraulic Boom Cylinder Seal Kit	Part Number	LZ006970
AppliC.A.Tion	Boom	Rod	130 MM
Bore	190 MM	Warranty	Unavailable
High Light	CASE Seal Kit , LZ006970 Boom Rebuild Kit , Hydraulic Cylinder Seal Kit

Leave a Message

Product Description

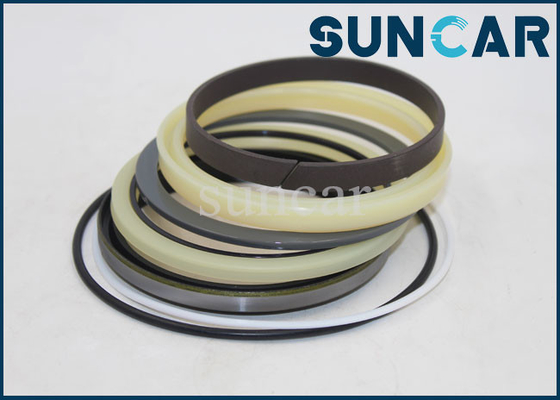

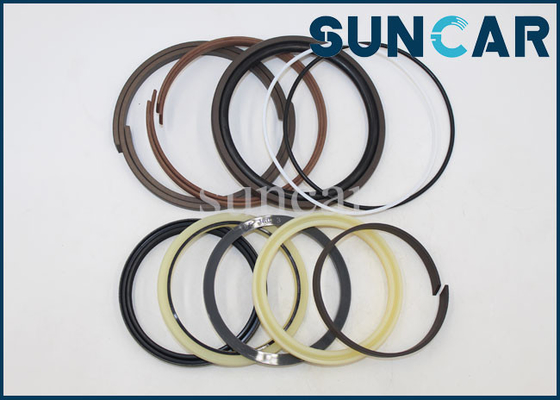

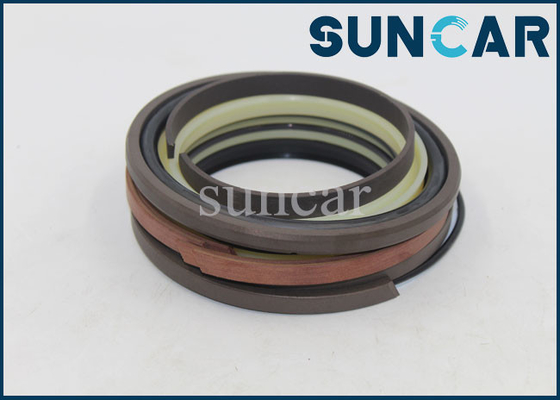

CX700B CX700 CASE LZ006970 Boom Rebuild Kit Hydraulic Cylinder Seal Kit

Product Name	Hydraulic Boom Cylinder Seal Kit
Model	CASE CX700B, CX700
Part Number	LZ006970
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature	High Sealing performance/ wear resistance
Rod	130 MM
Bore	190 MM
AppliC.A.Tion	Boom

Advantages:

(1) Quality stability.

(2) Professional R&D team.

(3) We have all specifiC.A.Tions of our products and can meet customers’ product diversity needs.

(4) We prefer to accept your lower MOQ in order to relieve your purchasing stress.

(5) Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.

Main Products:

We specialises in Hydraulic Breaker seal kit, Excavator seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit, Wear Ring/ O-ring / X-ring, Center Swing seal, Track adjuster seal, PTFE Seals: Rod Seals, Piston Seals, Rotary Seals and more.
We have the full range of mould size and stable and high quality production line to ensure delivery, Welcome OEM/ODM order.

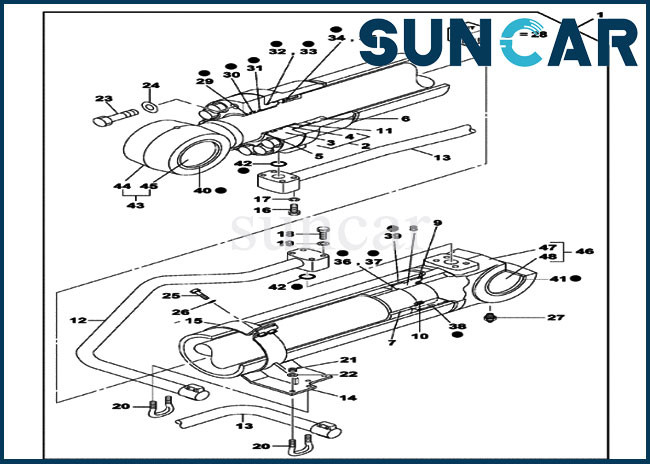

Related Parts:

Pos.	Part No	QTY	Parts name
1	KWV0010	[1]	HYDRAULIC CYLINDER
2	LU002150	[1]	CYLINDER END CAP
3	NSS	[1]	NOT SOLD SEPARAT
4	LK005070	[1]	WEAR RING
5	LA009990	[1]	SNAP RING
6	LH004550	[1]	SEALING RING COLLAR
7	LJ013480	[1]	PLUNGER
8	LJ013440	[1]	JACK PISTON
9	LE012250	[2]	RING
10	LV000400	[1]	SCREW
11	LA009980	[1]	SNAP RING
12	LR012850	[1]	HYD TUBE
13	LR012830	[1]	HYD TUBE
14	LD001170	[1]	CLAMP BRACKET
15	LD001120	[1]	CLAMP BRACKET
16	LA009930	[4]	BOLT
17	LA010040	[4]	WASHER
18	LA009930	[4]	BOLT
19	LA010040	[4]	WASHER
20	LA009850	[2]	U-BOLT
21	LA009880	[4]	NUT
22	LA00957	[4]	WASHER
23	LA010090	[12]	BOLT
24	LA010060	[12]	WASHER
25	LA009970	[4]	BOLT
26	LA010070	[4]	WASHER
27	153630A1	[1]	LUBE NIPPLE
28	LZ006970	[1]	SEAL KIT
29	NSS	[1]	NOT SOLD SEPARAT
30	NSS	[1]	NOT SOLD SEPARAT
31	NSS	[1]	NOT SOLD SEPARAT
32	154861A1	[1]	O-RING
33	NSS	[1]	NOT SOLD SEPARAT
34	154861A1	[1]	O-RING
35	NSS	[2]	NOT SOLD SEPARAT
36	NSS	[2]	NOT SOLD SEPARAT
37	154760A1	[1]	O-RING
38	NSS	[1]	NOT SOLD SEPARAT
39	NSS	[2]	NOT SOLD SEPARAT
40	NSS	[2]	NOT SOLD SEPARAT
41	NSS	[2]	NOT SOLD SEPARAT
42	154559A1	[2]	O-RING
43	LZ007020	[1]	PISTON ROD
44	NSS	[1]	NOT SOLD SEPARAT
45	KUV0036	[1]	BUSHING
46	LZ006990	[1]	HYD CYL SLEEVE
47	NSS	[1]	NOT SOLD SEPARAT
48	KWV0030	[1]	SELF LUB RING

CX700B CX700 CASE LZ006970 Boom Rebuild Kit Hydraulic Cylinder Seal Kit

CASE Seal Kit

LZ006970 Boom Rebuild Kit

Hydraulic Cylinder Seal Kit
