Sealing Parts LZ006980 Dipper Cylinder Seal Replacement Kits Fits CX700B CX700 Case

Name: Sealing Parts LZ006980 Dipper Cylinder Seal Replacement Kits Fits CX700B CX700 Case
Brand: SUNCAR
SKU: LZ006980 CASE CX700B, CX700
Rating: 4.8 (146 reviews)

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	LZ006980 CASE CX700B, CX700
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, Paypal, T/T, Transfer
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Dipper Cylinder Seal Replacement Kits	Part Number	LZ006980
AppliC.A.Tion	Dipper	Rod	140 MM
Bore	200 MM	Warranty	Unavailable
High Light	CASE Seal Kit , LZ006980 Dipper Sealing Kit , Cylinder Seal Replacement Kits

Leave a Message

Product Description

Sealing Parts LZ006980 Dipper Cylinder Seal Replacement Kits Fits CX700B CX700 Case

Product Name	Dipper Cylinder Seal Replacement Kits
Model	CASE CX700B, CX700
Part Number	LZ006980
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature	High Sealing performance/ wear resistance
Rod	140 MM
Bore	200 MM
AppliC.A.Tion	Dipper

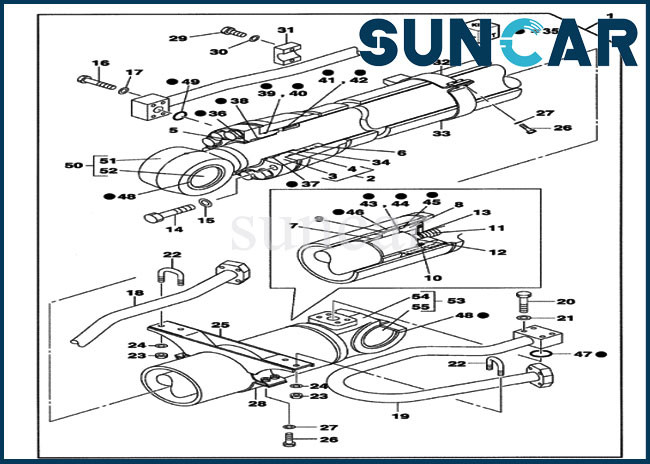

Related Parts:

Pos.	Part No	QTY	Parts name
1	KWV0012	[1]	HYDRAULIC CYLINDER
2	LU002160	[1]	CYLINDER END CAP
3	NSS	[1]	NOT SOLD SEPARAT
4	LK005120	[1]	WEAR RING
5	LA010000	[1]	SNAP RING
6	LH004530	[1]	SEALING RING COLLAR
7	LJ013490	[1]	PLUNGER
8	LJ013450	[1]	JACK PISTON
9	LE012260	[2]	RING
10	LV000410	[1]	SCREW
11	LJ013500	[1]	PLUNGER
12	LX000510	[11]	BALL
13	LR012930	[1]	CAP
14	LA010090	[12]	BOLT
15	LA010060	[12]	WASHER
16	LA009940	[4]	BOLT
17	LA010050	[4]	WASHER
18	LR012800	[1]	HYD TUBE
19	LR012870	[1]	HYD TUBE
20	LA009940	[4]	BOLT
21	LA010050	[4]	WASHER
22	LA009860	[2]	U-BOLT
23	LA009880	[4]	NUT
24	LA00957	[4]	WASHER
25	LS002650	[1]	SUPPORT
26	LA009970	[8]	BOLT
27	LA010070	[8]	WASHER
28	LD001140	[1]	CLAMP BRACKET
29	LA009920	[2]	BOLT
30	LA010040	[2]	WASHER
31	LA009900	[1]	CLAMP
32	LD001190	[1]	CLAMP BRACKET
33	LD001150	[1]	CLAMP BRACKET
34	LA010030	[1]	SNAP RING
35	LZ006980	[1]	SEAL KIT
36	NSS	[1]	NOT SOLD SEPARAT
37	NSS	[1]	NOT SOLD SEPARAT
38	NSS	[1]	NOT SOLD SEPARAT
39	154877A1	[1]	O-RING
40	NSS	[1]	NOT SOLD SEPARAT
41	154877A1	[1]	O-RING
42	NSS	[2]	NOT SOLD SEPARAT
43	NSS	[2]	NOT SOLD SEPARAT
44	154776A1	[1]	O-RING
45	NSS	[1]	NOT SOLD SEPARAT
46	NSS	[4]	NOT SOLD SEPARAT
47	154599A1	[1]	O-RING
48	NSS	[4]	NOT SOLD SEPARAT
49	154599A1	[1]	O-RING
50	LZ007030	[1]	PISTON ROD
51	NSS	[1]	NOT SOLD SEPARAT
52	KTV1125	[1]	SELF LUB RING
53	LZ007000	[1]	HYD CYL SLEEVE
54	NSS	[1]	NOT SOLD SEPARAT
55	KTV1125	[1]	SELF LUB RING

Product C.A.Tegories:

Hydraulic cylinder seal kit	Center joint seal kit
Transmission Seal Kit	Control valve seal kit
breaker hammer seal kit	Hydraulic pump seal kit
Travel motor seal kit	Main pump seal kit
Swing motor seal kit	Gear pump seal repair kit
Adjuster seal kit	Pilot valve seal kit
O-ring kit box	Hydraulic seal
Pump gasket	Regulator valve seal kit

Contact information:

If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals, seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.
