Excavator Arm Seal Kit K9002290 DX340LC DX380LC DOOSAN Cylinder Service Kits
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | K9002290 DOOSAN DX340LC, DX350LC, DX380LC, DX490LC-3, DX530LC-3 |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
Supply Ability | 3000 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Arm Cylinder Service Kits | Part Number | K9002290 |
---|---|---|---|
Rod | 115 MM | Bore | 170 MM |
Warranty | Unavailable | Shipping Mode | By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.) |
High Light | DOOSAN Seal Kit,Excavator Arm Seal Kit,K9002290 Cylinder Service Kits |
Excavator Arm Seal Kit K9002290 DX340LC DX380LC DOOSAN Cylinder Service Kits
Product Name | Arm Cylinder Service Kits |
Part Number | K9002290 |
Model |
DOOSAN DX340LC, DX350LC, DX380LC, DX490LC-3, DX530LC-3 |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic seal kit, excavator service kits |
Condition | New, genuine new |
Sample | Available |
Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
Feature | High sealing performance/ wear resistance |
AppliC.A.Tion | Arm |
Rod | 115 MM |
Bore | 170 MM |
Packing And Shipping:
- Usually, cartoon packing is for goods below 30KG.
- Plywood box packing is for over 30KG.
- Packing: Neutral packing, Suncar packing, and Original packing.
- Ships within 3 working days after placing an order and receiving payment
- Shipping: By international express( DHL, UPS, TNT, FEDEX, EMS, etc.)
- By air, shipping time is about a week.
- By sea, shipping time is about 20-40 days.
Seal ClassifiC.A.Tion:
(1) According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
(2) Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
(3) Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Related Parts:
Pos. | Part No | Qty | Parts name |
*. | K9002290 | [1] | SEAL KIT;ARM CYL |
-. | K1006192 | [1] | CYLINDER;ARM |
-. | K1006192A | [1] | CYLINDER;ARM |
-. | K1006192B | [1] | CYLINDER;ARM |
-. | K1006192C | [1] | CYLINDER;ARM |
1 | K9002272 | [1] | TUBE ASSEMBLY |
10 | K9001952 | [1] | RING;BACK UP |
11 | 115-00098 | [1] | WIPER;DUST |
12 | 115-00091 | [1] | RING;RETAINING |
13 | S8011601 | [1] | O-RING |
14 | K9001953 | [1] | RING;BACK UP |
15 | 2180-1216D150 | [1] | O-RING |
16 | K9002275 | [1] | RING;CUSHION |
17 | K9002276 | [1] | PISTON |
18 | K9002277 | [1] | SEAL;SLIPPER |
19 | 115-00112 | [2] | RING;WEAR |
2 | K1003915 | [1] | BUSH |
20 | 115-00110 | [2] | RING;SLYD |
21 | S8010901 | [1] | O-RING |
22 | K9001955 | [2] | RING;BACK UP |
23 | K9001956 | [1] | NUT;PISTON |
23 | K9003705 | [1] | NUT |
24 | S3523836 | [1] | SCREW;SET |
25 | K9002278 | [1] | PLUNGER;CUSHION |
26 | K9002279 | [1] | RING;STOP |
27 | S2228261 | [14] | BOLT;SOCKET |
28 | 1.420-00052 | [1] | VALVE;CHECK |
29 | 129-00071 | [1] | SPRING |
3 | K9002273 | [1] | ROD ASSEMBLY |
3 | K9002273A | [1] | ROD ASSEMBLY |
3 | K9002273B | [1] | ROD ASSEMBLY |
30 | 1.195-00022 | [1] | SUPPORT;SPRING |
31 | 2181-1116D3 | [1] | PLUG;HEX. SOCKET |
32 | K9002280 | [1] | PIPE BAND ASSEMBLY-H |
33 | 124-00129 | [1] | BAND;PIPE |
34 | S5100703 | [2] | WASHER;SPRING |
35 | S0560563 | [2] | BOLT |
36 | K9002281 | [1] | PIPE BAND ASSEMBLY-R |
37 | 124-00129 | [1] | BAND;PIPE |
38 | S5100703 | [2] | WASHER;SPRING |
39 | S0560563 | [2] | BOLT |
4 | K1003915 | [1] | BUSH |
40 | K9002282 | [1] | PIPE ASSEMBLY-R |
41 | S8000341 | [1] | O-RING |
42 | S5100703 | [4] | WASHER;SPRING |
43 | S2215961 | [4] | BOLT;SOCKET |
44 | K9001158 | [1] | U-BOLT |
45 | S5100603 | [2] | WASHER |
46 | S4012633 | [2] | NUT |
47 | K9001159 | [1] | CLAMP;PIPE |
48 | S5102903 | [1] | WASHER |
49 | S0521853 | [1] | BOLT |
5 | K9002274 | [1] | COVER;ROD |
50 | K9001173 | [1] | PORT;FLANGE |
51 | S8000341 | [1] | O-RING |
52 | S5100603 | [4] | WASHER |
53 | S2213363 | [4] | BOLT |
54 | S6710032 | [2] | NIPPLE;GREASE |
6 | 110-01002 | [1] | DD-BUSH |
7 | 115-00090 | [1] | RING;RETAINING |
8 | K9001950 | [1] | SEAL;BUFFER |
9 | K9001951 | [1] | U-PACKING |

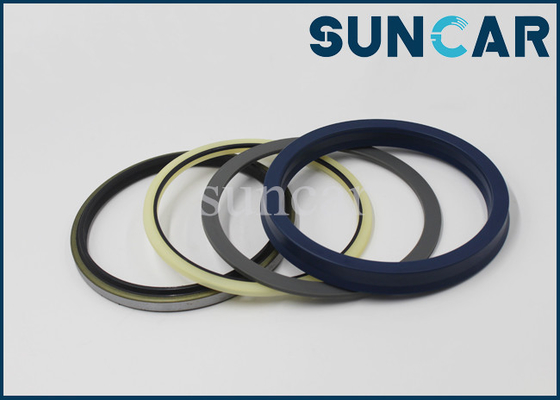

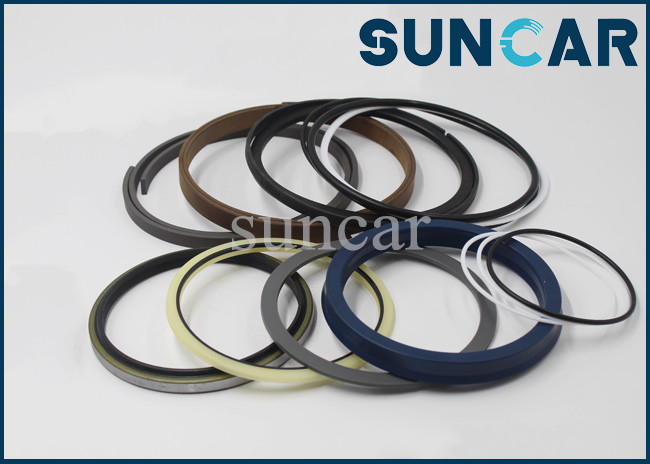

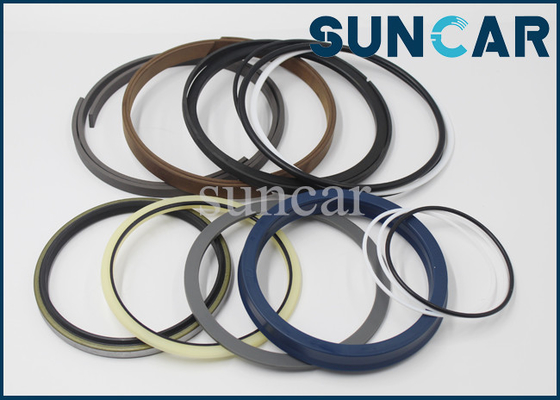

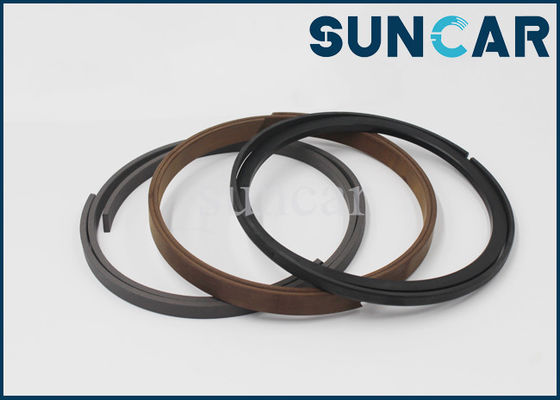

Product Show:
