Hydraulic Oil Seals
>
Standard Oil Seals TCN Shaft Seal

Standard Oil Seals TCN Shaft Seal

Model Number: TCN
MOQ: Acceptable trial order
Price: Negotiation
Packaging Details: PP bag inside, carton box outside
Payment Terms: Western Union, L/C, T/T, , D/A, D/P
Detail Information
Place of Origin:
CHINA(MAINLAND)
Material:
FKM, NBR
Temperature:
-35℃~+250℃
Pressure:
30MPA
Hardness:
50-90shore A
Rotational Speed:
0-25m/s
Medium:
LubriC.A.Ting Oil, Grease, Water
Supply Ability:
1500 pcs per month
Highlight:

Rotary Shaft Seals

,

Standard Shaft Seal

,

TCN Oil Seal

Product Description



Standard Oil Seals TCN Shaft Seal

TCN skeleton oil seal is a mechanical component used to seal oil. It isolates the parts of the transmission component that need to be lubriC.A.Ted from the output components so that lubriC.A.Tion and leakage are not allowed.


AppliC.A.Tion:
1. Fluid system (static & dynamic)
2. Hydraulic system (dynamic)
3. Pneumatic system (dynamic)
4. Oil or grease media sealing
5. Water media sealing
6. Automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,exercise equipment.

Product Parameter:

Products Name TCN Oil Seal
Material FKM, NBR
Temperature -35℃~+250℃
Pressure 30MPA
Hardness 50-90shore A
Rotational Speed 0-25m/s
Type hydraulic
Packing PP bag inside,carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Brand name
CertifiC.A.Tion ISO9001
Shipping Mode By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.)
Medium LubriC.A.Ting oil, grease, water
Feature High efficienty, long service life


Measures For Oil Leakage Due To Inadequate Oil Seal:

1. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter.

2. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards.

3. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled.

4. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.

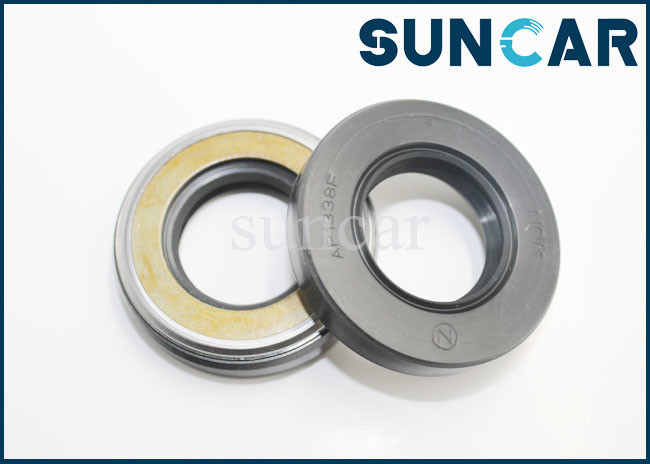

Product Image:

Standard  Oil Seals TCN Shaft Seal 0

Standard  Oil Seals TCN Shaft Seal 1

Standard  Oil Seals TCN Shaft Seal 2


Size of TCN Oil Seal:

25*45*11 48*70*12 90*115*13 150*180*14
28*48*11 50*72*12 95*120*13 170*200*16
30*50*11 55*78*12 100*125*13 190*225*16
32*52*11 60*82*12 105*135*14 34.93*57.15*7.9
34*51*11 62*58*12 110*140*14 145*175*14
35*55*11 65*90*13 115*145*14 35*55*12
38*58*11 70*95*13 120*150*14 72*95*13
40*62*11 70*95*13 125*155*14 45*68*12
40*62*12 75*100*13 130*160*14 22*42*11
42*65*12 80*105*13 135*165*14 52*75*9/12
45*68*12 85*110*13 140*170*14 52*75*12


Part Number:

708-3S-12150 096-7376 XKAH-00388 4260561
4320490 XKAH-00888 4396696 1297925
218496 4364328 XKAY-00444 708-8K-12141
218496 212231 8T-7925 4260561
708-21-12970 708-25-52861 XKAY-00274 708-27-22810
YN15V00009S027 4613831 708-8K-12141 708-27-22811
708-1T-11880 4310055 706-7G-11291 1994561
PTCV35V 708-2H-12140 4396696 4191666
708-8D-12220 4S00822 708-1F-12281 708-2H-22570
SA8230-27160 YN10V00032S775 3530541 708-27-22811
708-8D-12221 4212841 708-2G-12220 4232070
215823 SA8220-15000 708-2H-25380 706-77-40370
VOE14621703 XKAH-00929 708-27-22810 4191666
4340358 096-3998 353-0541 708-2H-22570
706-75-43410 8T7925 706-8J-41620 14552320
708-25-52860 VOE14535452 07012-00100 4232070
706-7E-11280 129-7925 XKAQ-00087 2180-1254
708-25-52860 XKAY-00521 7Y1766 XKAQ-00032
YN32W01060P1 07012-00115 07012-00110 199-4561
