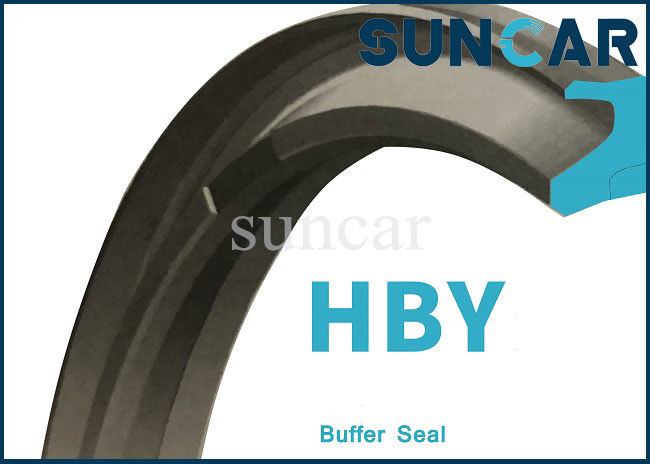

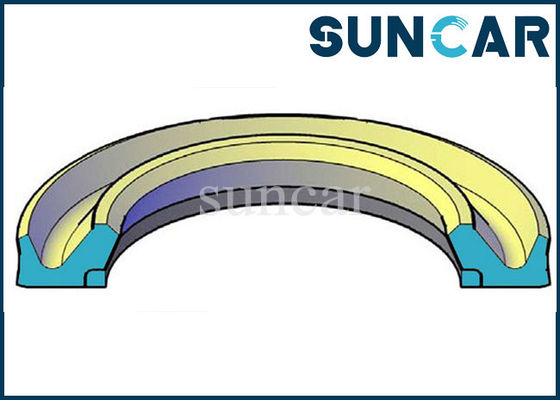

Mechanical Seal HBY Hydraulic Seals Rod Buffer Seal
Hydraulic rod buffer seal ring HBY is used together with rod seal. In this way it can improve seal durability because after absorbing shock and wave in high load capacity it can be isolated from high temperature fluid. HBY has a special-shaped slot on the sliding lip that can relieve back pressure to eliminate the pressure between the piston rod seal and the buffer ring.
Rod Buffer Seals:
The primary purpose of the buffer seal is to protect the main rod seal from the effects of shock pressure loading. It is important that the buffer seal allows adequate lubriC.A.Tion of the main seal and does not cause a pressure trap between itself and the main seal.
Product Parameter:
| Products Name | HBY Buffer Seal |
| Material | PUR(U801)+PA(12NM) |
| Speed | ≤1m/s |
| Pressure | ≤50MPa |
| Temperature Range | -55℃~+100℃ |
| Model Number | HBY |
| Style | Hydraulic |
| Medium | Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others |
| AppliC.A.Tion | Construction equipment, hammer breaker, excavator, bulldozer, sortingmachine, hydraulic cutter, wheel loader, tunnel excavator |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| Packing | PP bag inside,carton box outside |
| Brand name | SUNCAR |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
Step 2: Quotation and invoice
Step 3: Payment
Step 4: Delivery
Step 5: Receipt
Product Installation Image:
Buffer Seal Ring--HBY Size:
| 40*55.5*6 | 85*100.5*6 | 170*185.5*6 |
| 45*60.5*6 | 90*105.5*6 | 175*190.5*6 |
| 50*65.5*6 | 95*110.5*6 | 180*195.5*6 |
| 55*70.5*6 | 100*115.5*6 | 190*205.5*6 |
| 60*75.5*6 | 105*120.5*6 | 200*215.5*6 |
| 65*80.5*6 | 110*125.5*6 | 210*225.5*6 |
| 70*85.5*6 | 115*130.5*6 | 220*241*7.7 |
| 75*90.5*6 | 135*150.5*6 | 230*251*7.7 |
| 80*95.5*6 | 160*175.5*6 | 240*261*7.7 |
Part Number:
| FQ0253F3 | FQ0253F4 | 707-51-40630 | FQ0246F5 |
| FQ0254F5 | FQ0254F6 | 707-51-45630 | FQ0646F0 |
| FQ0255F4 | FQ0255F3 | FQ0255F7 | 3500952 |
| FQ0256F4 | FQ0256F5 | FQ0256F7 | 707-51-85630 |
| FQ0257F4 | FQ0257F5 | FQ0257F6 | FQ0433F4 |
| FQ0258F4 | FQ0258F3 | FQ0258F7 | FQ0603F0 |
| FQ0244F5 | FQ0244F4 | FQ0244F8 | FQ0451F0 |
| FQ0245F5 | FQ0245F4 | FQ0245F8 | 707-51-80630 |
| FQ0246F6 | FQ0265F5 | FQ0264F5 | 707-51-70640 |
| FQ0259F5 | FQ0871F3 | FQ0784F2 | 707-51-50640 |
| FQ0260F6 | FQ0246F9 | FQ0904F2 | 707-51-50630 |
| FQ0575F6 | FQ0259F6 | FQ1226F0 | 707-51-55630 |
| FQ0261F7 | Y240-130012 | FQ0868F5 | 707-51-60630 |
| FQ0629F6 | Y240-130013 | FQ0263F4 | 707-51-65630 |
| FQ0262F6 | 154-0732 | FQ0842F3 | 707-51-70630 |
| 4I-3611 | 707-51-75650 | 707-51-75640 | 707-51-75630 |
|
