| Brand Name: | SUNCAR |
| Model Number: | CPH |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | PP bag inside,carton box outside （as your request） |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |

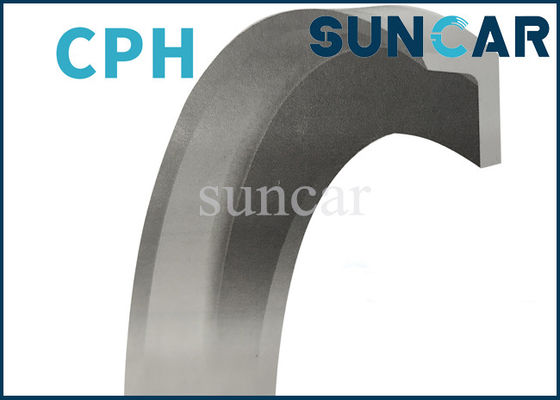

CPH Imported Hydraulic Oil Seal Piston Seals For Hydraulic Cylinders
| Products Name: | CPH Imported Hydraulic Oil Seal Piston Seals For Hydraulic Cylinders |
| Material: | NBR A102/A103/A104/A505 |
| Type Applicable: | Excavator & Wheel Loader & Backhoe Loader & bulldozer Inner Spare Parts |
| Type: | CPH |
| Color: | As your request |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability: | 30000 Piece/Pieces per Month |
| MOQ: | 1 PCS(negotiation) |
| Feature: | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name: | Suncar/OEM |
| CertifiC.A.Tion: | ISO9001 |
| Shipping Mode: | By air, by sea ,by express (DHL,Fedex,UPS ,TNT etc.) |
| Size | Standard Size |
| Dilvery: | 5-7 work days |
Product Parameter :
| Material | Power-transmission fluid | Temperature | Speed | Pressure | Max. Gap F | Chamfers & Rod (mm) | Tolerance | Surface Finishing | ||||||
| NBR A102/A103/A104/A505 | Mineral Oil | -40 – +110 | ≦ 1.5 m/s | 160 bar | F ≦ 1.0 mm | μm Ra | μm Rt | |||||||
| 250 bar | F ≦ 0.8 mm | S ≦ | 7 | 7.5 | 11.5 | 14 | ØD1 | H9 | 0.1-0.4 | ≦ 4 | ||||
| 400 abr | F ≦ 0.6 mm | C ≧ | 4 | 4 | 6 | 7.5 | Ød1 | -0.2 | ≦ 1.6 | ≦ 10 | ||||
| 500 bar | F ≦ 0.4 mm | r1 ≧ | 1.6 | 1.6 | 1.6 | 1.6 | L | 0.2 | ≦ 3.2 | ≦ 16 | ||||
Part Of CPH
| NO. | NAME | MATERIAL | OEM | SIZE |
| CPH-30 | Piston seal | NBR A102/A103/A104/A505 | CC0019C3 | 30*13*8/2.5 |
| CPH-30 | Piston seal | NBR A102/A103/A104/A505 | CC0020C0 | 30*12*10*2.5 |
| CPH-30 | Piston seal | NBR A102/A103/A104/A505 | CC0020C1 | 30*15*10*2.5 |
| CPH-35 | Piston seal | NBR A102/A103/A104/A505 | CC0026C0 | 35*18*10/2.5 |
| CPH-40 | Piston seal | NBR A102/A103/A104/A505 | CC0034C1 | 40*16*8/2.5 |
| CPH-40 | Piston seal | NBR A102/A103/A104/A505 | CC0035C0 | 40*20*10/2.5 |
| CPH-42 | Piston seal | NBR A102/A103/A104/A505 | CC0040C0 | 42*23*12/3 |
| CPH-45 | Piston seal | NBR A102/A103/A104/A505 | CC0044C0 | 45*25*10/2.5 |
| CPH-50 | Piston seal | NBR A102/A103/A104/A505 | CC0055C1 | 50*25*12/3 |
| CPH-55 | Piston seal | NBR A102/A103/A104/A505 | CC0067C0 | 55*40*10/3 |
| CPH-60 | Piston seal | NBR A102/A103/A104/A505 | CC0074C0 | 60*40.5*8/2.5 |
| CPH-60 | Piston seal | NBR A102/A103/A104/A505 | CC0077C0 | 60*30*12/3 |
| CPH-65 | Piston seal | NBR A102/A103/A104/A505 | CC0096C0 | 65*34.5*13*3.5 |
| CPH-70 | Piston seal | NBR A102/A103/A104/A505 | CC0106C2 | 70*38*12/3 |
| CPH-75 | Piston seal | NBR A102/A103/A104/A505 | CC0117C1 | 75*38*12/3 |
| CPH-80 | Piston seal | NBR A102/A103/A104/A505 | CC0132C0 | 80*40*15/4 |
| CPH-80 | Piston seal | NBR A102/A103/A104/A505 | CC0134C0 | 80*40*16/4 |
| CPH-90 | Piston seal | NBR A102/A103/A104/A505 | CC0156C0 | 90*38*15/4.3 |
| CPH-90 | Piston seal | NBR A102/A103/A104/A505 | CC0157C0 | 90*45*16/4 |
| CPH-90 | Piston seal | NBR A102/A103/A104/A505 | CC0159C0 | 90*50*17/5 |
| CPH-100 | Piston seal | NBR A102/A103/A104/A505 | CC0171C0 | 100*55*16/4 |
| CPH-100 | Piston seal | NBR A102/A103/A104/A505 | CC0174C5 | 100*50*16/4 |
| CPH-120 | Piston seal | NBR A102/A103/A104/A505 | CC0174C4 | 120*60*16/4 |
| CPH-120 | Piston seal | NBR A102/A103/A104/A505 | CC0207C0 | 120*70*16/4 |
| CPH-125 | Piston seal | NBR A102/A103/A104/A505 | CC0207C1 | 125*75*16/5 |
| CPH-130 | Piston seal | NBR A102/A103/A104/A505 | CC0219C0 | 130*80*20/5 |
| CPH-150 | Piston seal | NBR A102/A103/A104/A505 | CC0230C1 | 150*75*20/5 |
| CPH-150 | Piston seal | NBR A102/A103/A104/A505 | CC0255C0 | 150*100*20/5 |
| CPH-180 | Piston seal | NBR A102/A103/A104/A505 | CC0282C0 | 180*90*20/5 |
| CPH-180 | Piston seal | NBR A102/A103/A104/A505 | CC0285C0 | 180*80*20/5 |
| CPH-200 | Piston seal | NBR A102/A103/A104/A505 | CC0293C5 | 200*150*20/5 |
| CPH-205 | Piston seal | NBR A102/A103/A104/A505 | CC0303C1 | 205*134*23/4 |
| CPH-257 | Piston seal | NBR A102/A103/A104/A505 | CC0328C1 | 257*192*22/5.5 |
Our Description:
We manufacture and supply a range of high quality excavator seal kit. The supplied seal kit are manufactured by our factory using the best quality raw materials and the latest technology.This seal kit is well received by customers in the market because of its high durability, tensile strength and good resistance to harsh environments.The supplied seal kit can be obtained from us at a market-leading price.
General Order Process:
FAQ:
Q1:What about the delivery time?
Within 7-10days after received your order.(Usually the sample leadt time
about1-5days ,bulk about 7-10days)
Q2:Are you provide the sample?
Yes,we can provide the sample generally.
Q3:What's the shipping way?
Air shipping,sea shipping and the express,but for details please contact us to know clear.
Q4:What's your MOQ?
We accept the trail order.
WELCOME FEEL FREE TO CONTACT US INQUIRY FOR OUR PRODUCTS!
If you unsure whether this is correct for your machine, please contact us. This product is available to ship worldwide, We have professional product design capability. We develop the most competitive products in the market to our customers for choices.
We will provide professional and efficient service, any questions about product service, please contact us directly, we will reply you within 24 hours.
|
|
