| Brand Name: | SUNCAR |
| Model Number: | KDAS/DAS |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
KDAS/DAS Hydraulic Piston Seal Double Acting Combined Oil Seals

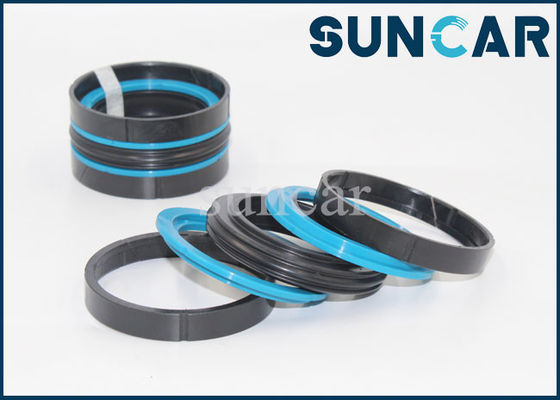

KDAS is a robust assembly designed specifically for one piece pistons. The assembly comprises a rubber sealing element, two spit support rings and two split L-shaped bearings, one of each loC.A.Ted either side of the seal. The nitrile rubber sealing element is designed with multi-lips for efficient dynamic sealing with minimal low pressure friction. KDAS combination sealing ring (5 sets) by a rubber seal, two Back-up ring and the two "L" type.
Product Parameter:
| Product Name | KDAS/DAS Hydraulic Piston Seal |
| Material | PTFE NBR FKM PU AU PA |
| Model Number | KDAS/DAS |
| Style | Hydraulic |
| Hardness | 20~90 Shore A |
| Speed | ≤0.5m/s |
| Temperature | -35℃~110℃ |
| Pressure | ≤35MPa |
| Medium | Hydraulic oil, anti-fire fluid, water, gas, etc. |
| Size | ID*OD*High, standard or custom size |
| Feature | Good electric insulation, high temperature resistance |
| CertifiC.A.Tion | ISO9001 |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Shipping | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Brand Name | SUNCAR |
Use:
KDAS/DAS combination seals are often used as sealing elements in reciproC.A.Ting hydraulic cylinders and pistons. KDAS/DAS combination seal is a double-acting piston seal, two back up rings and two wear rings.
AppliC.A.Tion:
Excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, sliding cars, agricultural machinery, logging equipment, etc.
Advantages:
1) Good sealing effect.
2) Suitable for holding cylinders.
3) Insensibility against shock loads and pressure peaks.
4) High resisitance against extrusion.
5) Capable of installation in closed grooves for reduced machining costs.
6) Economic sealing and guiding solution.
7) Easy installation.

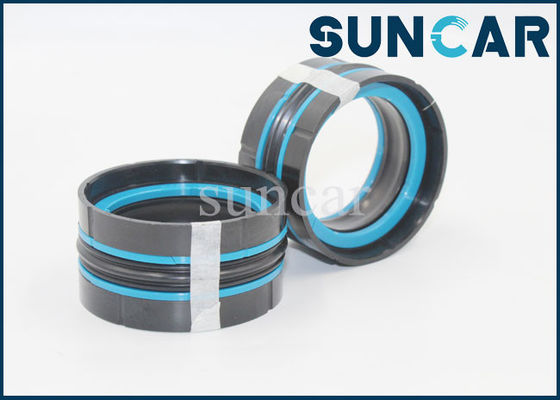

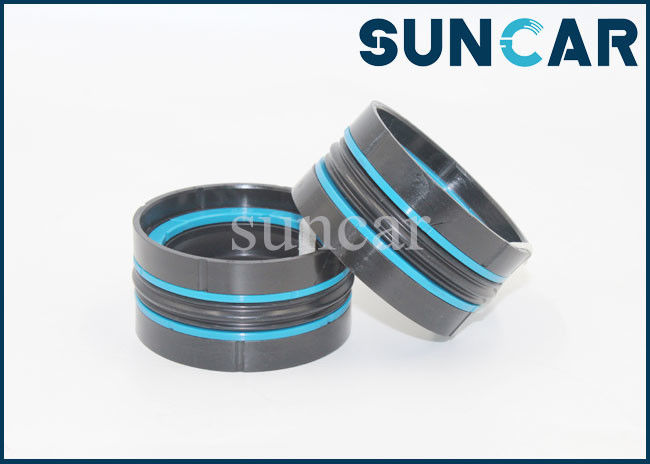

Product Image:
Part Number:
| VOE4833022 | VOE4833025 | VOE4833038 |
| VOE4833023 | VOE4833026 | VOE4786773 |
| VOE4833024 | VOE4833027 | VOE4786774 |
Piston Seal--Size Of KDAS:
| 20*11*13.5/17.7 | 65*51*20.5/28.9 | 135*110*25.4/38.1 |
| 22*13*13.5/17.7 | 65*49*20.5/26.7 | 140*115*25.4/44.4 |
| 25*15*12/20 | 65*50*18.4/31.1 | 140*115*25.4/38.1 |
| 25*15*12.5/20.5 | 70*50*22.4/35.1 | 140*118*26.5/36.7 |
| 25*15*16.4/29.1 | 70*54*20.5/26.7 | 140*123*26.5/40.9 |
| 25*16*13.5/17.7 | 70*58*20.5/28.9 | 145*120*25.4/44.4 |
| 28*19*13.5/17.7 | 75*55*22.4/35.1 | 145*120*25.4/38.1 |
| 30*17*28.1 | 75*59*20.5/26.7 | 150*125*25.4/44.4 |
| 30*21*13.5/17.7 | 80*60*22.4/35.1 | 150*125*25.4/38.1 |
| 32*22*15.5/20.7 | 80*62*22.5/29.7 | 150*128*26.5/36.7 |
| 32*22*16.4/29.1 | 80*66*22.5/32.9 | 150*133*26.5/40.9 |
| 32*24*15.5/21.9 | 85*65*22.4/35.1 | 155*130*25.4/44.4 |
| 35*25*15.5/20.7 | 90*70*22.4/35.1 | 155*130*25.4/38.1 |
| 35*25*16.4/29.1 | 90*72*22.5/29.7 | 160*130*25.4/38.1 |
| 40*24*18.4/31.1 | 90*76*22.5/32.9 | 160*130*25.4/44.4 |
| 40*26*15.5/20.7 | 95*75*22.4/35.1 | 160*135*25.4/44.4 |
| 40*30*16.4/29.1 | 100*75*22.4/35.1 | 160*138*26.5/36.7 |
| 40*30*12.5/20.5 | 100*80*25/37.7 | 160*143*26.5/40.9 |
| 40*32*15.5/21.9 | 100*82*22.5/29.7 | 165*140*25.4/44.4 |
| 42*28*15.5/20.7 | 100*86*22.5/32.9 | 170*145*25.4/50.8 |
| 45*29*18.4/31.1 | 105*80*22.4/35.1 | 170*148*26.5/36.7 |
| 45*31*15.5/20.7 | 110*85*22.4/35.5 | 175*150*25.4/50.8 |
| 45*35*16.4/29.1 | 110*92*22.5/29.7 | 180*150*35.4/48.1 |
| 50*34*18.4/31.1 | 110*96*22.5/32.9 | 180*155*45 |
| 50*34*20.5/26.7 | 115*90*22.4/35.1 | 180*155*25.4/50.8 |
| 50*38*20.5/28.9 | 115*97*22.5/29.7 | 185*160*25.4/50.8 |
| 55*39*18.4/31.1 | 120*95*22.4/35.1 | 190*165*25.4/50.8 |
| 55*39*20.5/26.7 | 120*106*22.5/32.9 | 195*170*25.4/50.8 |
| 56*40*20.5/26.7 | 125*100*25.4/38.1 | 200*175*25.4/50.8 |
| 58*48*28.9 | 125*103*26.5/36.9 | 210*185*25.4/50.8 |
| 60*44*18.4/31.1 | 125*108*26.5/40.9 | 220*190*35.4/48.1 |
| 60*44*20.5/26.7 | 127*101.6*50.8 | 220*195*25.4/50.8 |
| 60*48*28.9 | 130*105*25.4/44.4 | 230*205*25.4/50.8 |
| 63*48*20.5/28.9 | 130*105*25.4/38.1 | 240*215*25.4/50.8 |
| 63*47*18.4/31.1 | 130*113*26.5/40.9 | 250*220*35.4/48.1 |
| 63*47*19.4/32.1 | 133*115*22.4/41.44 | 250*225*25.4/50.8 |
Tip:
The part number and sizes of KDAS/DAS that we supply are too many to put in the list. Please e-mail us your inquiry or contact us for more information.
|
|
