POM NBR Hydraulic Oil Seals OK Hydraulic Piston Seal ISO9001

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number OK piston seal
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1000 pcs per month
Product Details
Product Name Ok Piston Seal Material POM+NBR
Pressure ≦800 Bar Temperature -30℃~+110℃
Hardness NBR-70 Shore A Speed ≦1m/s
Color Black Function Resise Shock Loads, Wear, Comtamination, And Will Resist Extrusion Or Chipping
High Light

NBR OK Hydraulic Seals

,

Hydraulic Piston Seal

,

POM Hydraulic Oil Seals

Leave a Message
Product Description



Hydraulic Oil Seal OK Piston Seal Compact Seals

Piston seal maintain sealing contact in sliding motion between the piston and cylinder bore. OK piston seal is a double-acting piston seal suitable for heavy hydraulic machinery applications. Sealing kit is suitable for working pressures up to 500 bar which, under certain conditions, may even be exceeded.



Product Parameter:

Material POM+NBR
Product name Ok Piston Seal
Pressure ≦800 bar
Temperature -30℃~+110℃
Hardness NBR-70 Shore A
Speed

1m/s

Application Hydraulic
Color Black
Brand Name SUNCAR
Size Standard
Packing PP bag inside, carton box outside
Shipping By air, by sea, by express(FedEx, UPS DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Certification ISO9001
Function Resise shock loads, wear, comtamination, and will resist extrusion or chipping



Advantages:

1. Low friction, high efficiency.

2. Easy onto a solid piston without tools.

3. Unusually high wear resistance.

4. High resistance qgainest extrusion.

5. Perfect sealing performance.

6. Good temperature tolerance.

7. Double lips prevent dust pollution.



Direction For Use:

1. Clean the OK seal mating surfaces and shafts.

2. Ensure that the shaft is dry and free of grease or oil, especially in the absence of axial support.

3. Such a group of parts should have an axial gap. To avoid damage to the sealing lip, do not pull the seal on the sharp edge during installation.

4. These seals are typically incorporated into closed channels. Special installation tools are required where the entrance is restricted.

5. Verify whether the OK seal is evenly stretched around the shaft.



How To Keep In Stock For The Seal?

  • First, do not open the original packing to keep them clean to avoid any damage.
  • Second, should be stored away from direct sunlight and keep in low humidity environment. Sunlight and moisture make rubber get ageing asap, and get the size of rubber or plastic material changing.
  • Third, once it was opened, make sure there are no any other objects inside when repacked, and please kindly use the original packing bag.
  • Fourth, should be stored away from electric machinery which could be produced ozone.
  • At last, do not string up the seal and hang on the nail or metal wire, or the shape of seal get changing and damage the end of seal lip.
  • When the color of seal is changing or there is white powder(Frosting appears), there is no effect on the seal.

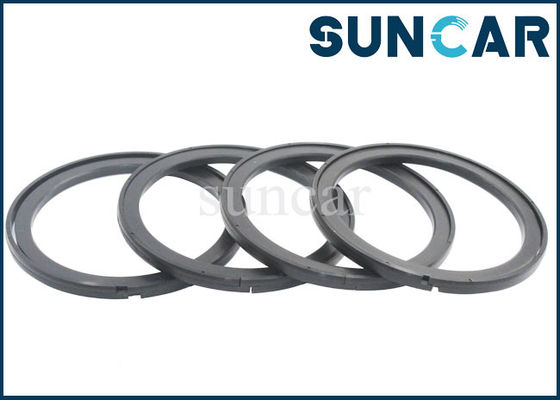

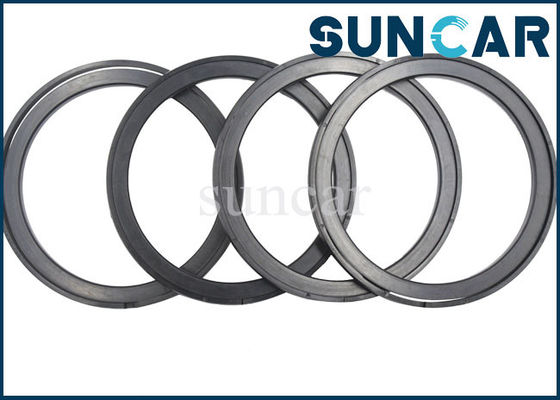

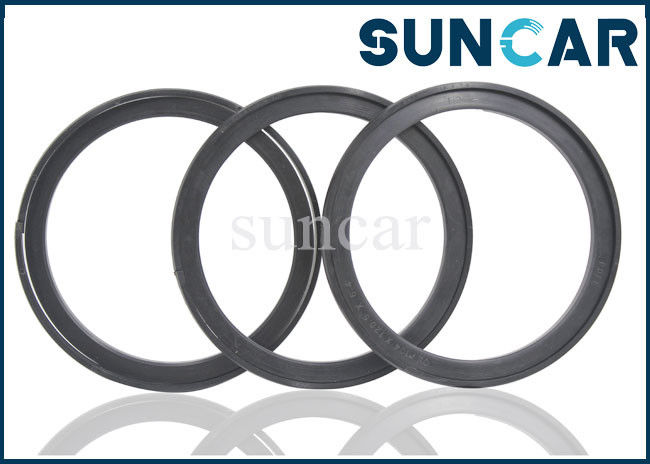

Product Image:

POM NBR Hydraulic Oil Seals OK Hydraulic Piston Seal ISO9001 0

POM NBR Hydraulic Oil Seals OK Hydraulic Piston Seal ISO9001 1

POM NBR Hydraulic Oil Seals OK Hydraulic Piston Seal ISO9001 2



Some Standard Size Of OK Piston Seals:

25*16*4.2 75*59.5*6.3 140*119*8 250*229*8
32*21*4.2 80*59*8 145*124*8 260*239*8
40*26.3*5.8 80*64.5*6.3 150*129*8 270*249*8
40*29*4.2 85*64*8 152.4*131.5*8 280*255.5*8
50*34.5*6.3 90*69*8 160*139*8 290*271*9.5
50*36.3*5.8 90*74.5*6.3 165*144*8 300*272*9.5
50*39*4.2 95*74*8 170*149*8 320*292*9.5
60*41.7*7 100*79*8 175*154*8 330*302*9.5
60*49*4.2 105*84*8 180*159*8 350*322*9.5
63*44.7*7 110*89*8 190*169*8 370*342*9.5
63*47.5*6.3 115*94*8 200*179*8 420*392*9.5
63*52*4.2 120*99*8 210*189*8 450*422*9.5
70*51.7*7 125*104*8 220*199*8 480*452*9.5
70*59*4.2 130*109*8 230*209*8 240*225*8



Part Number:

VOE11107806 VOE11107814 VOE11107304 VOE11107817
VOE11107806 VOE11107812 VOE11107810 VOE11107818
VOE11107273 VOE11107812 VOE11107810 VOE11107207
VOE11107304 VOE11107103 VOE11107811

VOE11107821
