U-shaped Seal OKH Compact Piston Seals

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number OKH
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 1000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OKH Piston Seal Material NBR A566/NBR A567
Temperature -30℃~100℃ Pressure 14MPa
Speed ≦1m/s Size Standard Or Nonstandard
High Light

Hydraulic Piston Seal

,

Compact Piston Seals

,

OKH U-shaped Seal

Leave a Message
Product Description



U-shaped Seal OKH Compact Piston Seals

OKH is a U-shaped seal, but because one seal can seal in both directions, it saves a lot of installation space. OKH has made improvements to anti-creeping. It has superior A5606, can use special low-temperature oil, and can be combined with anti-wear ring and retaining ring BRL type.



Product Parameter:

Product Name OKH Piston Seal
Material NBR A566/NBR A567
Temperature -30℃~100℃
Pressure 14MPa
Speed ≦1m/s
Packing PP bag inside, carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Brand name SUNCAR
CertifiC.A.Tion ISO9001
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Size Standard or nonstandard
Feature

Corrosion resistance; high temperature resistance; high pressure resistance; wear resistance.



How To Keep In Stock For The Seal?

  • First, do not open the original packing to keep them clean to avoid any damage.
  • Second, should be stored away from direct sunlight and keep in low humidity environment. Sunlight and moisture make rubber get ageing asap, and get the size of rubber or plastic material changing.
  • Third, once it was opened, make sure there are no any other objects inside when repacked, and please kindly use the original packing bag.
  • Fourth, should be stored away from electric machinery which could be produced ozone.
  • At last, do not string up the seal and hang on the nail or metal wire, or the shape of seal get changing and damage the end of seal lip.
  • When the color of seal is changing or there is white powder(Frosting appears), there is no effect on the seal.



The Role Of The Seal:

Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:

Piston Seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.

Rod Seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.

Buffer Seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.

Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.

(Rod and Piston) Functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

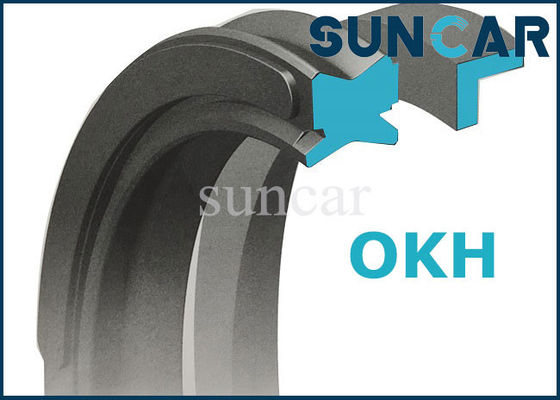

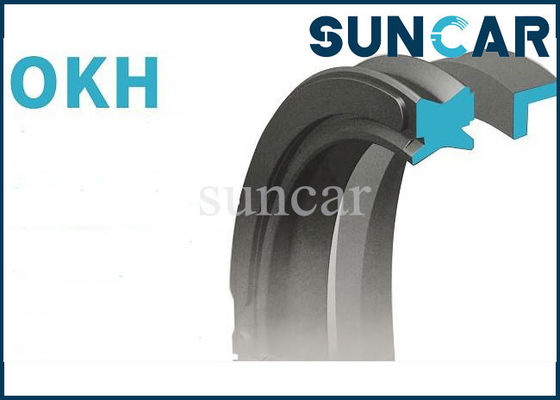

Product Image:

U-shaped Seal OKH Compact Piston Seals 0

U-shaped Seal OKH Compact Piston Seals 1



Product Size That We Can Provide:

40*30*6.5 60*50*6.5 70*60*6.5 85*72*8
45*35*6.5 63*53*6.5 75*65*6.5 90*77*8
50*40*6.5 65*55*6.5 80*67*8

100*85*9



Part Number:

CQ0371C0 CQ0371C1 CQ0329C0 CQ0374C0
CQ0372C0 CQ0372C1 CQ0313C1 CQ0329C1
CQ0311C1 CQ0311C2 CQ0375C0 CQ0375C1
CQ0373C0 CQ0373C1 CQ0330C0 CQ0376C1
CQ0316C0 CQ0316C1 CQ0376C0 CQ0377C0
CQ0374C1 CQ0313C2 CQ0330C1 CQ0377C1
