Brand Name: | SUNCAR |
Model Number: | OSI |
MOQ: | 100 PCS |
Price: | Negotiation |
Packaging Details: | PP bag inside, carton box outside |
Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
OSI Piston Seal Hydraulic Mechanical PUR Oil Seals
Piston seals are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurized fluid does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore. The choice of piston seal is decided by the way in which the cylinder operates. OSI hydraulic piston seal has medium sliding resistance, small cross-section design, can be fitted into an integral groove, and a seal with a smaller cross-section than ODI.
Product Parameter:
Product Name | OSI Piston Seal |
Material | PUR U801 |
Temperature | -30℃~+100℃ |
Pressure | ≤30Mpa |
Speed | ≤1m/s |
Hardness | 90-95 A |
Packing | PP bag inside, carton box outside |
Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
Brand name | SUNCAR |
CertifiC.A.Tion | ISO9001 |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Feature | Excellent durability and flexibility in using |
Advantage:
● Insensibility against shock loads and pressure peaks.
● High resistance against extrusion.
● Sufficient lubriC.A.Tion due to pressure medium between the sealing lips.
● Suitable for hardest working conditions.
● Easy installation.
AppliC.A.Tion:
Tapered grinder, heating fans, ventilator anesthesia machine etc, roller lathe, machine tool accessories, medical equipment, survey accessories, die casting mold, dye pigments, coupling type, pump, oil cylinder, etc.
Guarantee:
If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.

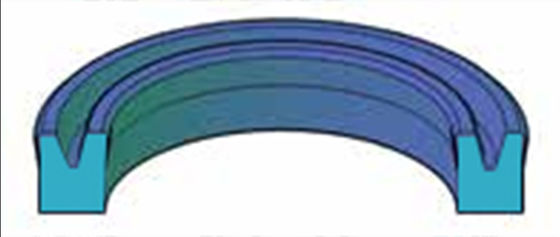

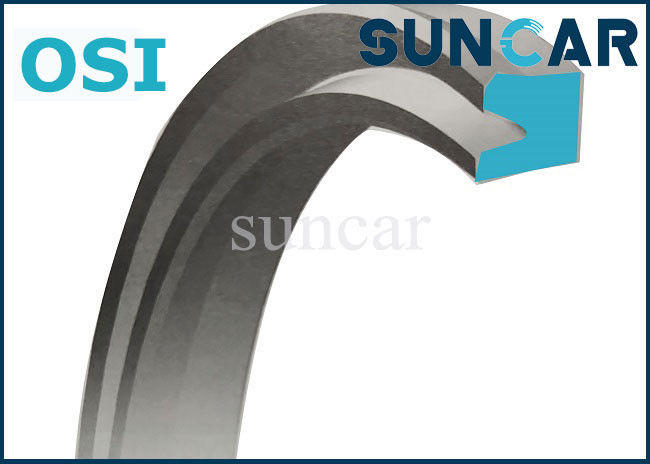

Product Image:
Product Size That We Can Provide:
35*27*5 | 70*60*6 | 120*105*9 | 200*180*12 |
35.5*27.5*5 | 71*60*7 | 120*106*8.5 | 210*190*12 |
35.5*28*5 | 71*61*6 | 125*112*8.5 | 220*200*12 |
40*30*6 | 73*63*6 | 125*112*9 | 224*204*12 |
41.5*31.5*6 | 75*65*6 | 130*115*9 | 225*205*12 |
45*35*6 | 77*67*6 | 140*125*9 | 230*210*12 |
45*35.5*6 | 80*70*6 | 145*130*9 | 240*220*12 |
50*40*6 | 80*71*6 | 150*135*9 | 250*230*12 |
55*45*6 | 85*75*6 | 150*136*8.5 | 260*240*12 |
56*45*7 | 90*80*6 | 155*140*9 | 270*250*12 |
56*46*6 | 100*85*9 | 160*145*9 | 280*255*16 |
60*50*6 | 105*90*9 | 170*155*9 | 290*265*16 |
63*53*6 | 110*95*9 | 175*160*9 | 300*275*16 |
65*55*6 | 112*98*8.5 | 180*165*9 |
190*175*9 |
Part Number:
FU0420L0 | FU1193L0 | FU0825L0 | FU1481L0 |
FU0450L0 | FU1212L0 | FU0846L0 | FU1511L0 |
FU2141L0 | FU2148L0 | FU2145L0 | FU1539L0 |
FU0490L0 | FU2847L0 | FU0877L0 | FU1572L0 |
FU2142L0 | FU1926L0 | FU0889L0 | FU1594L0 |
FU0563L0 | FU1278L0 | FU0897L0 | FU1606L0 |
FU2143L0 | FU1320L0 | FU0922L0 | FU1618L0 |
FU0613L0 | FU2405L0 | FU0936L0 | FU1635L0 |
FU0692L0 | FU1356L0 | FU2146L0 | FU1655L0 |
FU1120L0 | FU1730L0 | FU1152L0 | FU1745L0 |
FU2144L0 | FU0720L0 | FU0742L0 | FU0784L0 |
FU0807L0 | FU2147L0 | FU0979L0 | FU1019L0 |
FU1078L0 | FU2149L0 | FU1386L0 | FU1404L0 |
FU1441L0 | FU1458L0 | FU1760L0 | FU1675L0 |
