SPG Cylinder Piston Seals For Hydraulic Seal
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Certification | ISO9001 |
| Model Number | SPG |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Supply Ability | 1000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | SPG | Tolerance | +/-0.01 Mm To +/-3.05 Mm |
|---|---|---|---|
| Hardness | 90-95 Shore A | Speed | ≤5m/s |
| Temperature | -30℃--200℃ | Medium | Almost All Media |
| High Light | SPG Cylinder Sealing,Hydraulic Piston Seal |
||
Product Description

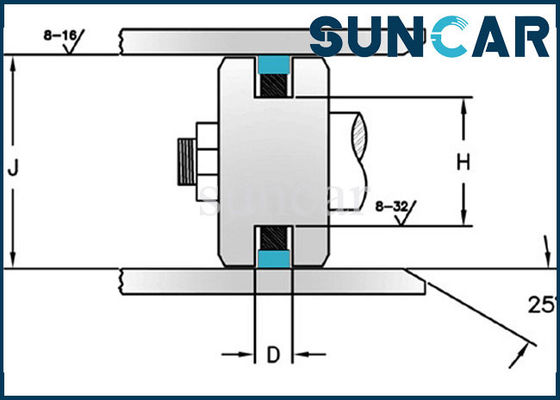

SPG Cylinder Piston Seals For Hydraulic Seal
SPG is a compact double acting piston seal for medium to heavy duty applications. It is a combination of a slipper seal and an energizing square ring. SPG as only the PTFE face ring is in contact with the sliding surface, friction is very low and stick slip movement is eliminated.
Product parameter:
| Product Name | SPG Piston Seal |
| Material | PTFE+NBR |
| Model Number | SPG |
| Tolerance | +/-0.01 mm to +/-3.05 mm |
| Hardness | 90-95 Shore A |
| Speed | ≤5m/s |
| Temperature | -30℃--200℃ |
| Pressure | ≤40Mpa |
| Medium | Almost all media |
| Size | According to excavator model |
| OEM | Accept |
| Certification | ISO9001 |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Shipping | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Brand Name | SUNCAR |
Characteristic:
A combination of a based material slipper seal of PTFE with law coefficient of friction, no stick-slip behavior and high wear resistance. Double sealing performance saves installation space.
Application Range:
Standard compact seal for wide application. Design and apply please referring to NOK's SPG series standard.
Product Advantages:
- High static and dynamic sealing effect;
- High resistance against extrusion;
- Low friction,high efficiency;
- Stick-slip free starting,no sticking;
- High abrasion resistance,high operational reliability;
- Wide range of application temperatures and high resistance to chemicals,depending on the choice of square ring Material.
- Easy installation.

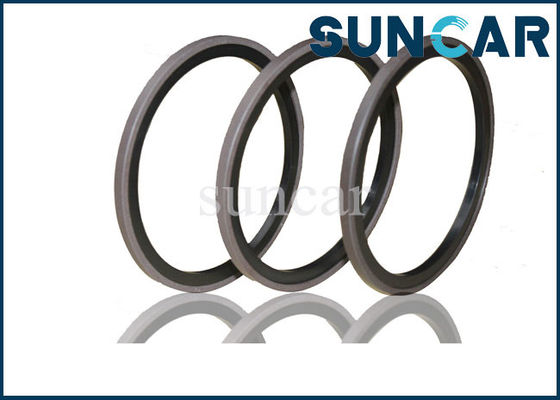

Product Image:

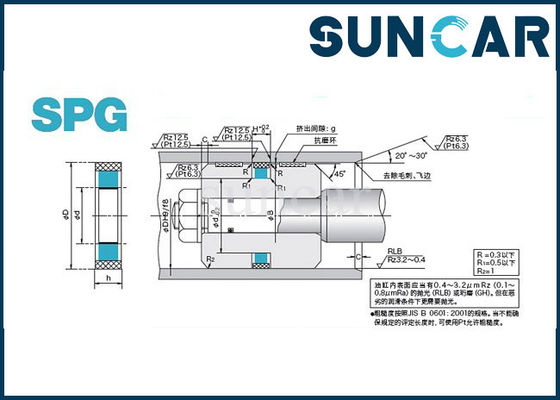

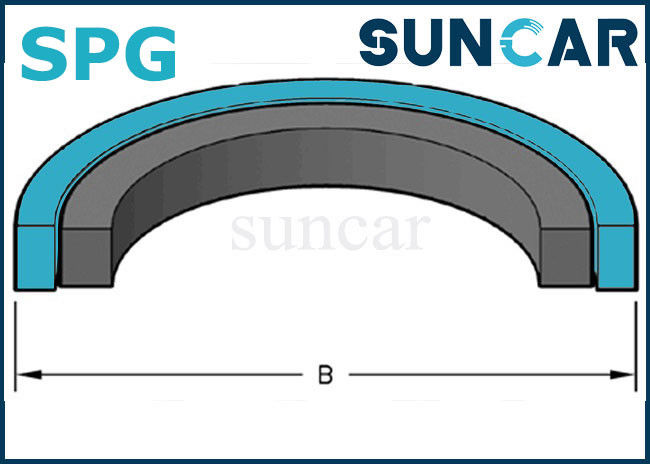

SPG - Piston Seal:
| 30*20.5*4.3 | 95*80*7.3 | 215*193*10.8 | 900*870*24.5 |
| 31.5*22*4.3 | 100*85*7.3 | 220*198*10.8 | 930*890*19 |
| 32*22.5*4.3 | 105*90*7.3 | 224*202*10.8 | 935*920*12.7 |
| 35*25.5*4.3 | 108*92*7.3 | 225*203*10.8 | 950*925*17.7 |
| 35.5*26*4.3 | 110*94*7.3 | 230*208*10.8 | 1000*960*19.7 |
| 40*30*4.3 | 110*94*4.9 | 240*218*10.8 | 1060*1020*19.7 |
| 45*35*4.3 | 112*96*7.3 | 250*228*10.8 | 1120*1080*19.7 |
| 50*40*4.3 | 115*109*7.3 | 260*236*11.7 | 1150*1110*19.7 |
| 50*40*4.9 | 120*104*7.3 | 270*246*11.7 | 1180*1130*19.7 |
| 55*45*4.3 | 125*109*7.3 | 280*256*11.7 | 1210*1170*19 |
| 56*46*4.3 | 130*114*7.3 | 290*266*11.7 | 1250*1210*19.7 |
| 60*50*4.3 | 135*119*7.3 | 300*276*11.7 | 1260*1220*19.7 |
| 60*50*4.9 | 140*124*7.3 | 310*286*11.7 | 1400*1350*19.7 |
| 63*48*7.3 | 140*120.62*9.7 | 320*296*11.7 | 1500*1460*19.7 |
| 65*50*7.3 | 145*129*7.3 | 330*308*9.75 | 1650*1600*24 |
| 69*54*7.3 | 150*134*7.3 | 360*336*11.7 | 165.10*142.11*9.63 |
| 70*55*7.3 | 155*139*7.3 | 400*376*11.7 | 127.00*107.32*9.63 |
| 70*60*4.9 | 160*144*7.3 | 485*455*14.8 | 209.55*184.28*9.63 |
| 71*56*7.3 | 170*148*10.8 | 500*470*14.8 | 209.55*184.28*9.63 |
| 75*60*7.3 | 180*158*10.8 | 550*515*17.2 | 158.75*135.76*9.63 |
| 80*65*7.3 | 190*168*10.8 | 600*570*14.8 | 184.15*161.16*9.63 |
| 80*65*4.9 | 200*178*10.8 | 650*620*14.8 | 139.70*120.02*9.63 |
| 85*70*7.3 | 204*182*10.8 | 720*690*14.8 | 101.60*84.71*6.40 |
| 90*75*7.3 | 210*188*10.8 | 800*785*12.7 | 76.2*62.48*4.88 |
Part Number:
| GS0327V0 | GS0351V0 | GS0362V0 | GS0587V0 |
| GS0328V0 | GS0806V1 | GS0363V0 | GS0584V0 |
| GS0329V0 | GS0353V0 | GS0364V0 | GS3007V0 |
| GS0330V0 | GS0362V0 | GS0365V0 | GS0599V1 |
| GS0331V0 | GS0885V0 | GS0366V0 | GS0465V0 |
| GS0332V0 | GS0354V0 | GS0700V0 | GS0281V1 |
| GS0333V0 | GS3133V1 | GS0701V0 | GS0851V0 |
| GS0334V0 | GS0355V0 | GS0702V0 | GS0402V0 |
| GS0335V0 | GS0356V0 | GS0703V0 | GS0852V0 |
| GS0336V0 | GS0357V0 | GS0704V0 | GS0579V0 |
| GS0337V0 | GS0358V0 | GS0705V0 | GS0379V2 |
| GS0338V0 | GS0359V0 | GS0706V0 | GS0324V2 |
| GS0339V0 | GS0360V0 | GS0408V0 | GS0527V0 |
| GS0340V0 | GS0361V0 | GS0917V0 | GS0492V0 |
| GS0341V0 | GS0548V0 | GS3361V0 | GS0520V0 |
| GS0342V0 | GS0842V0 | GS0504V1 | GS0407V2 |
| GS0343V0 | GS0350V0 | GS0261V2 | GS0466V1 |
| GS0344V0 | GS3509V0 | GS0346V0 | GS0521V0 |
| GS0345V0 | GS0348V0 | GS0352V0 | GS0285V2 |
| GS0310V0 | GS0311V0 | GS0347V0 | GS0512V0 |
| GS0349V0 | 1931770 | 1931394 | 193-1770 |
| 6J1972 | 5J4988 | 5J4990 | 9X-3595 |
| 193-1394 | 9X-3598 | 5J-4991 | 5J-5020 |
| 5J-5559 | 5J-7019 | 5J4991 | 6J-1972 |
| 193-1368 | 9X3598 | 5J5020 | 5J-4988 |
| 5J-5402 | 1931368 | 9X3595 | 5J7019 |
| 5J4993 | 5J5402 | 5J-4993 |
5J-4990 |
Tip:
The sizes we supply are too many to put in the list. Please e-mail us your inquiry or contact us for more information.
