SPGN Piston Seal Hydraulic Cylinder Compact Seals

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number SPGN
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 300 Piece per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material NBR+PA Medium Barely Flammable Fluids, Hydraulic Oil, Water, Air, Etc.
Temperature -30℃~110℃ Pressure 0~50MPa
Speed ≦1.5m/s AppliC.A.Tion Widely Used As Piston Seal; Especially For Small And Medium Sized Excavators; Same AppliC.A.Tion With SPGO
High Light

Hydraulic Piston Seal


SPGN Piston Seal


Cylinder Compact Seals

Leave a Message
Product Description


SPGN Piston Seal Hydraulic Cylinder Compact Seals

SPGN is a double-acting piston, hydraulic seal with compact seal. SPGN seal is also a center joint seal, and its sliding resistance is extremely small. SPGN seals can be sealed in both directions, saving a lot of installation space. The sliding material uses nylon resin, which has excellent durability.



1. SPGN has designed a cutout for inputting hydraulic pressure to prevent air leakage.

2. Because the seal ring is cut in sections, it has superior assembly performance.

3. Compared with SPGW, it can save space.



1. Has good solvent, oil, water and hydraulic fluid resistance.

2. Good compression set, abrasion resistance and tensile strength.



Not recommended for using in highly polar solvents such as acetone, and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.


Product Parameter:

Product Name SPGN Piston Seal
Material NBR+PA
Product Type Piston Seal
Temperature -30℃~110℃
Pressure 0~50MPa
Speed ≦1.5m/s
Packing PP bag inside, carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Brand name SUNCAR
CertifiC.A.Tion ISO9001
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Size Standard or custom
AppliC.A.Tion Widely used as piston seal; especially for small and medium sized excavators; same appliC.A.Tion with SPGO

Barely flammable fluids, hydraulic oil, water, air, etc.


Product Image:

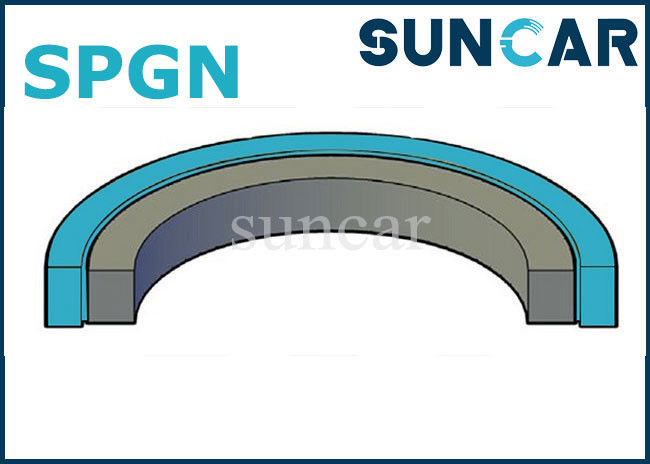

SPGN Piston Seal Hydraulic Cylinder Compact Seals 0

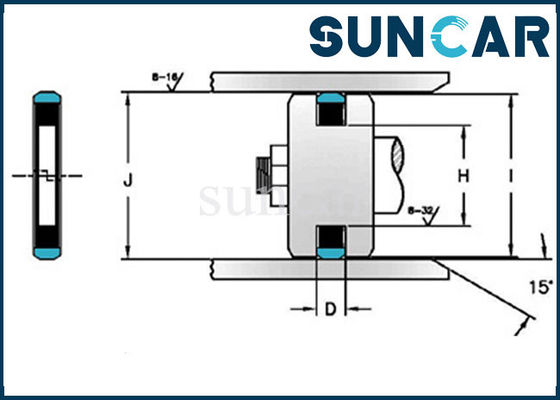

SPGN Piston Seal Hydraulic Cylinder Compact Seals 1

SPGN Piston Seal Hydraulic Cylinder Compact Seals 2


The role of the seal:

Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.

Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.

Rod and piston: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.


We Offer The Below Sizes:

75*54*7.8 110*89*7.8 145*124*7.8 100*79*7.8
80*59*7.8 115*94*7.8 150*129*7.8 135*114*7.8
85*64*7.8 120*99*7.8 160*139*7.8 190*169*7.8
90*69*7.8 125*104*7.8 170*149*7.8 105*84*7.8
95*74*7.8 130*109*7.8 180*159*7.8 200*179*7.8


Part Number:

GS4243V0 GS4244V0 GS4245V0 GS4246V0
GS4248V0 GS4249V0 GS4250V0 GS4251V0
GS4253V0 GS4254V0 GS4255V0 GS4256V0
GS4258V0 GS4259V0 GS4261V0 GS4263V0
GS4266V0 GS4247V0 GS4252V0 GS4257V0


Our promise to customers:

1. We provide competitive prices and high-quality products.

2. We carefully inspect each product before shipment to ensure that our products meet high quality standards.

3. If you need custom size and color, please contact us, we will ensure that the product meets your requirements.

4. Ensure punctual delivery.

5. Free proofing(applicable to all customers).

6. First reply and quotation, warm and friendly after-sales service.
