Hydraulic O-Ring Seals SPGO Piston Compact Seals

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number SPGO
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 300 pcs per month
Product Details
Material PTFE+NBR Speed 1.5m/s
Pressure Range 0-35MPa Temperature -30℃~+120℃
Hardness 30-90(A) Application Excavator, Standard Cylinders, Mobile Hydraulics, Presses
High Light

O-Ring Seals

,

Hydraulic Piston Seal

,

SPGO Piston Compact Seals

Leave a Message
Product Description

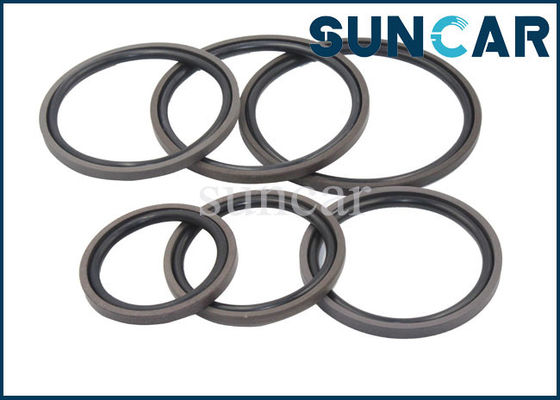

Hydraulic O-Ring Seals SPGO Piston Compact Seals

SPGO is a standard combination seal for a wide range of applications. It has the same performance as SPG and uses JIS standard O-ring, saving a lot of installation space. SPGO is a low friction piston seal. Application Industry:engineering machinery industry,petroleum industry,hydraulic & pneumatic industry,intelligent manufacturing & new energy.



Product Parameter:

Item SPGO Piston Seal
Material PTFE+NBR
Size Standard
Speed 1.5m/s
Pressure range 0-35MPa
Temperature -30℃~+120℃
Medium

Mineral oil based hydraulic fluids, barely flammable hydraulic fluids,

water, air and others

Hardness 30-90(A)
OEM/ODM Available
Packing PP bag inside, carton box outside
Shipping By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Deliver time 3--5 working days after payment
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Factory history Ten years long
Application Excavator, standard cylinders, mobile hydraulics, presses
Brand Name SUNCAR
Certification ISO9001



Characteristic Of SPGO Piston Seal:

The sliding material of SPGO piston seals is PTFE, which has extremely low friction resistance, can avoid crawling and ensure high wear resistance. SPGO can save installation space due to the two-way sealing capability of a single seal, and has good wear resistance, high pressure resistance, high temperature resistance and adaptability under different working conditions.



FAQ:

Q1: What is the delivery date when you order?

A: It depends on the order quantity. If the products you need are in stock, we will arrange dispatch within 3 days after your payment.



Q2: What is MOQ?

A: We accept trial orders, please contact the salesperson for specific quantities.



Q3: What are your advantages?

A: We have a professional technical team, not only provide seals for customers, but also provide customers with customized sealing solutions. If you have sealing technology problems, please contact us.



Product Image:

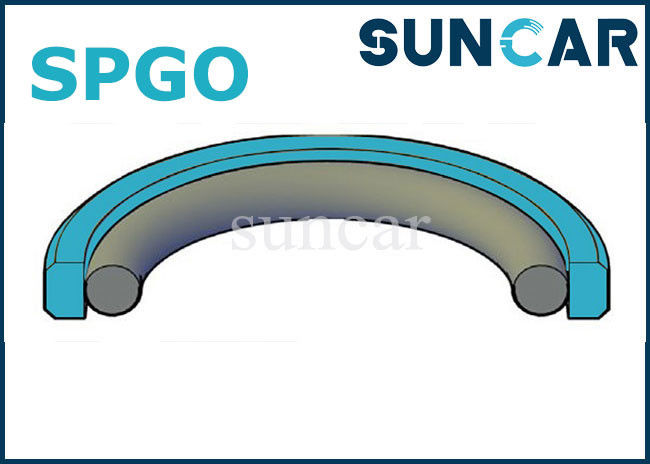

Hydraulic O-Ring Seals SPGO Piston Compact Seals 0

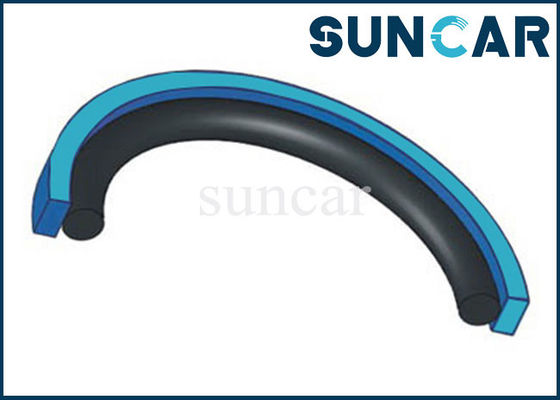

Hydraulic O-Ring Seals SPGO Piston Compact Seals 1

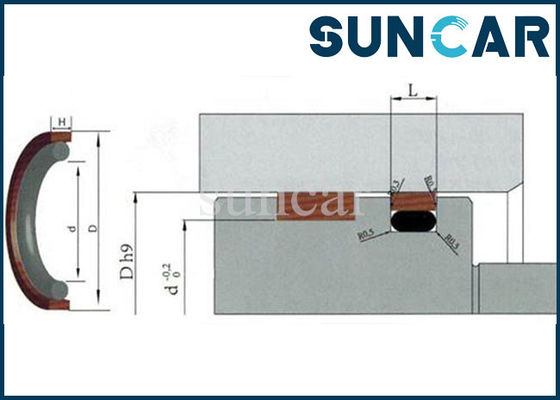

We Offer The Below Sizes:

20*14*3 60*46*6.3 120*106*6.3 215*7.9
25*19*3 63*4.2 120*96*7.9 220*7.9
30*3.2 63*49*6.3 125*111*6.3 220*200*9.8
30*21.5*3.8 65*56.5*3.8 125*7.9 225*7.9
30*4.2 65*4.2 130*116*6.3 224*204*9.8
31.5*23*3.8 65*51*6.3 130*7.9 230*7.9
32*23.5*3.8 70*4.2 135*121*6.3 230*210*9.8
35*3.2 70*56*6.3 135*7.9 240*7.9
35*26.5*3.8 71*57*6.3 140*126*6.3 240*220*9.8
35*4.2 75*4.2 140*7.9 250*7.9
35.5*27*3.8 75*61*6.3 145*7.9 250*230*9.8
38*4.2 80*4.2 150*136*6.3 260*7.9
40*3.2 80*66*6.3 150*7.9 260*240*9.8
40*31.5*3.8 80*7.9 155*7.9 270*7.9
40*4.2 85*4.2 160*146*6.3 270*250*9.8
40*26*6.3 85*71*6.3 160*7.9 280*7.9
45*3.2 85*7.9 165*7.9 280*260*9.8
45*36.5*3.8 90*4.2 170*7.9 290*7.9
45*4.2 90*76*6.3 170*150*9.8 290*270*9.8
45*31*6.3 90*7.9 175*7.9 300*7.9
48*4.2 95*81*6.3 180*7.9 300*280*9.8
50*41.5*3.8 95*7.9 180*160*9.8 310*7.9
50*4.2 100*86*6.3 185*7.9 310*290*9.8
50*36*6.3 100*7.9 190*7.9 320*7.9
53*44.5*3.8 105*91*6.3 190*170*9.8 320*300*9.8
55*46.5*3.8 105*7.9 195*7.9 340*320*9.8
55*4.2 110*96*6.3 200*7.9 350*330*9.8
55*41*6.3 110*7.9 200*180*9.8 360*340*9.8
56*47.5*3.8 112*98*6.3 205*7.9 375*355*9.8
60*51.5*3.8 115*101*6.3 210*7.9 380*360*9.8
60*4.2 115*7.9 210*190*9.8 400*380*9.8



Part Number:

GS1800V0 GS1817V0 GS1819V0 GS1854V0
GS1801V0 GS1837V0 GS1820V0 GS1855V0
GS1802V0 GS1838V0 GS1821V0 GS1856V0
GS1803V0 GS1839V0 GS1822V0 GS1857V0
GS1804V0 GS1840V0 GS1823V0 GS1834V0
GS1805V0 GS1841V0 GS1821V0 GS1835V0
GS1806V0 GS1842V0 GS1822V0 GS1836V0
GS1807V0 GS1843V0 GS1823V0 GS1830V0
GS1808V0 GS1837V0 GS1824V0 GS1831V0
GS1809V0 GS1845V0 GS1825V0 GS1832V0
GS1810V0 GS1846V0 GS1826V0 GS1833V0
GS1811V0 GS1847V0 GS1827V0 GS1850V0
GS1812V0 GS1848V0 GS1828V0 GS1851V0
GS1813V0 GS1849V0 GS1829V0 GS1852V0
GS1814V0 GS1815V0 GS1816V0 GS1818V0
1754721 1991141 860255 GS1853V0
961570 963893 861345 1403750
