Hydraulic Cylinder IUIS Piston Rod Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number IUIS
Minimum Order Quantity Accept trial order
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 500 pcs per month
Product Details
Product Name IUIS Piston Rod Seal Material PUR U801/PUR U641
Speed ≤1m/s Temperature -30~100℃
Pressure ≤30Mpa Application Excavator, Bulldozer, Loaders, Trucks, Presses, Standard Cylinders, Mobile Hydraulics
High Light

Hydraulic Rod Seals

,

IUIS Piston Rod Seals

,

Hydraulic Oil Seals

Leave a Message
Product Description



Hydraulic Cylinder IUIS Piston Rod Seal

IUIS type seals belong to the hydraulic seal series. IUIS has made improvements to prevent damage caused by back pressure and has good heat resistance. It is a small cross-section design, which can be installed in an integral groove with medium sliding resistance.


Product parameter:

Product Name IUIS Piston Rod Seal
Material PUR U801/PUR U641
Model Number IUIS
Speed ≤1m/s
Temperature -30~100℃
Pressure ≤30Mpa
Customized OEM & ODM are welcomed
Application Excavator, bulldozer, loaders, trucks, presses, standard cylinders, mobile hydraulics
Certification ISO9001
Packing PP bag inside, carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Shipping By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Brand Name SUNCAR


Seal Classification:

Static seal: There are three main categories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.

Dynamic seal: It can be divided into two basic types: rotary seal and reciprocating seal.


Contact information:

If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits , or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.



Product Image:

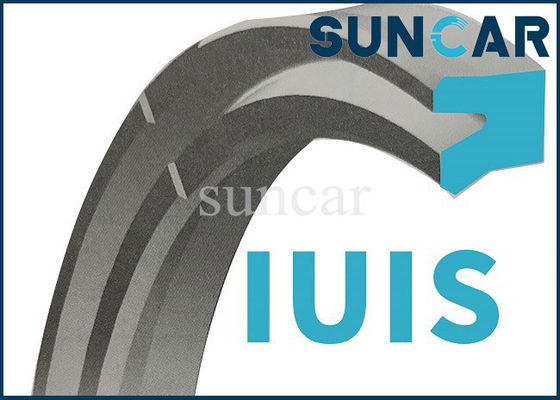

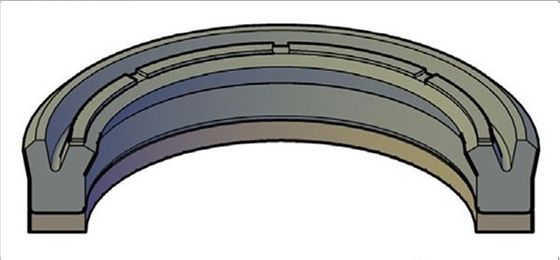

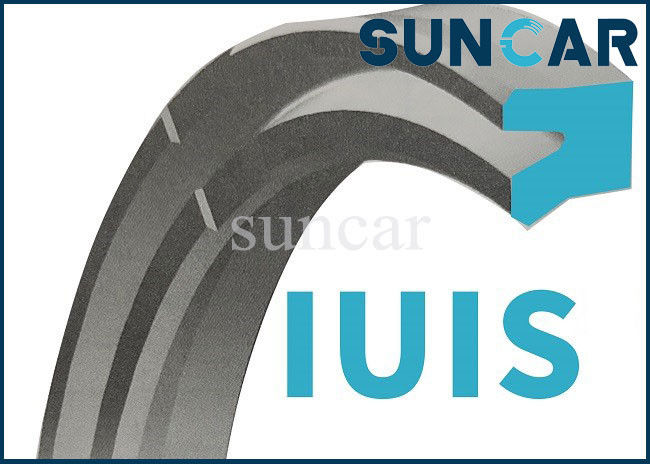

Hydraulic Cylinder IUIS Piston Rod Seal 0

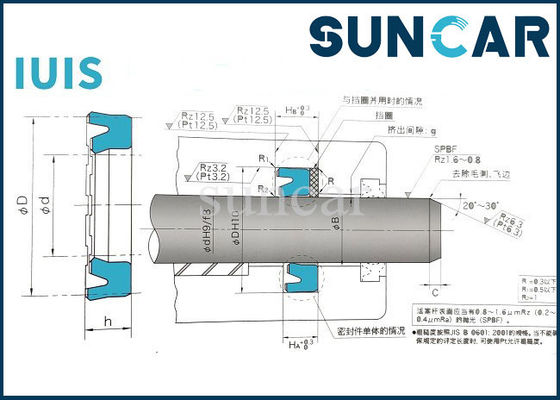

Piston Rod Seal--IUIS Size:

18*26*5 70*80*6 140*150*6 160*175*9
22.4*30*5 80*90*6 140*150*6 160*175*9
28*35.5*5 85*100*9 140*150*6 160*175*9
30*40*6 90*105*9 140*150*6 160*175*9
35*45*6 95*110*9 140*150*6 170*180*6
35.5*45*6 100*115*9 140*155*9 170*180*6
40*50*6 125*140*9 140*155*9 170*185*9
45*55*6 130*145*9 140*155*9 170*185*9
45*56*7 135*150*9 140*155*9 170*185*9
50*60*6 135*150*9 155*165*6 175*190*9
55*65*6 135*150*9 155*165*6 175*190*9
56*66*6 135*150*9 155*165*6 180*200*12


Part Number:

FU0180R0 FU0180R1 FU1280R1 FU1280R0
FU0260R0 FU0260R1 FU1323R0 FU1323R1
FU0320R0 FU0320R1 FU1323R0 FU1323R1
FU0357R0 FU0357R1 FU1323R0 FU1323R1
FU0424R1 FU0424R2 FU1323R0 FU1323R1
FU0451R0 FU0451R1 FU1406R0 FU14406R1
FU0497R0 FU0497R1 FU1406R0 FU14406R1
FU0567R1 FU0567R2 FU1406R0 FU14406R1
FU0572R0 FU0572R1 FU1406R0 FU14406R1
FU0619R0 FU0619R1 FU1443R2 FU1443R0
FU0694R1 FU0694R2 FU1443R2 FU1443R0
FU0722R0 FU0722R1 FU1443R2 FU1443R0
FU0849R1 FU0849R0 FU1459R1 FU1459R0
FU0939R0 FU0939R1 FU1459R1 FU1459R0
FU0984R0 FU0984R1 FU1483R0 FU1483R1
FU1024R0 FU1024R1 FU1483R0 FU1483R1
FU1051R0 FU1051R1 FU1252R0 FU1252R1
