Brand Name: | SKF |
Model Number: | PTB |
MOQ: | 100 PCS |
Price: | Negotiation |
Packaging Details: | PP bag inside, carton box outside |
Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

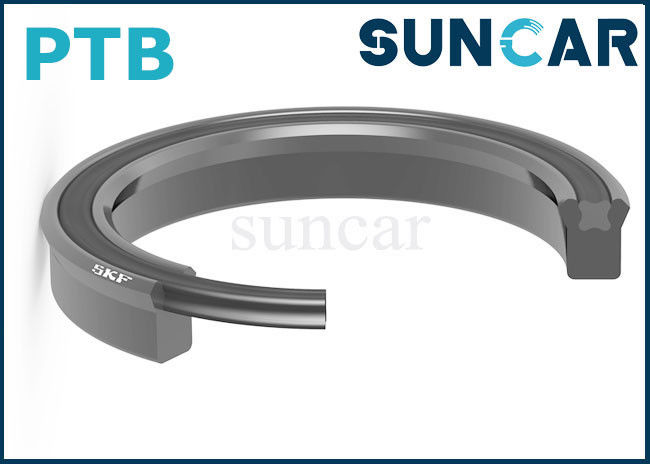

SKF PTB Piston Rod Seal For Cylinder Rod Seal
PTB seals are energized U-cup rod seals and are made of LUBRITHANE (TPU). They are suitable for pressures up to 400 bar (5 800 psi) in medium duty appliC.A.Tions and are available in metric and inch sizes.
Product Parameter:
Product Name | SKF PTB Piston Rod Seal |
Material | LUBRITHANE (TPU) |
Model Number | PTB |
Speed | Up to 1 m/s (3.2 ft/s) |
Pressure | Up to 400 bar (5800 psi) |
Hardness | 70-90 Shores |
Customized | OEM & ODM are welcomed |
AppliC.A.Tion | Cylinder |
CertifiC.A.Tion | ISO9001 |
Packing | PP bag inside, carton box outside |
Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
Shipping | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Brand Name | SKF |
Type | PTB (Piston rod seal) |
We Could Supply The Following Spare Parts:
Hydraulic seal
O-ring kit box
Pump gasket
Adjuster seal kit
Pilot valve seal kit
Main pump seal kit
Center joint seal kit
Travel motor seal kit
Transmission Seal Kit
Control valve seal kit
Swing motor seal kit
Regulator valve seal kit
Hydraulic pump seal kit
breaker hammer seal kit
Gear pump seal repair kit
Hydraulic cylinder seal kit

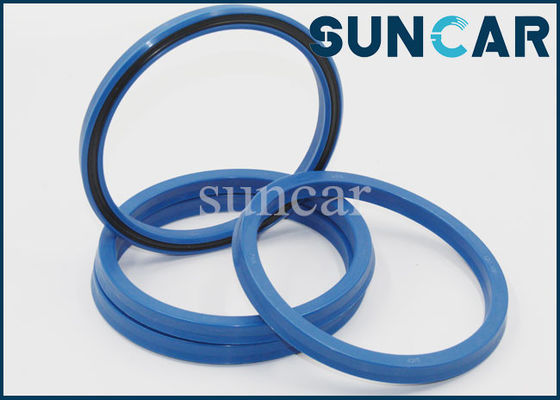

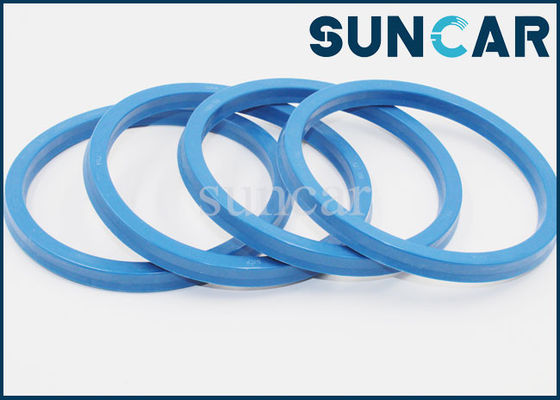

Product Image:

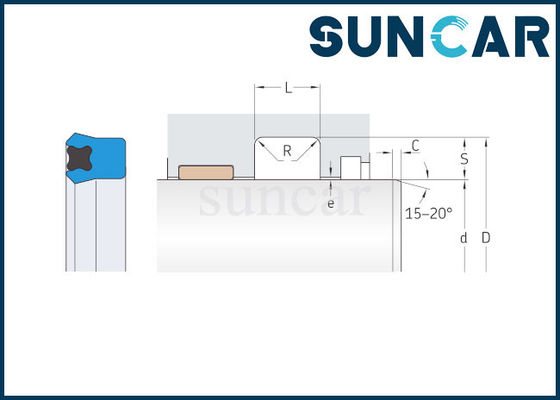

Piston Rod Seal--PTB Size:
8*16*6.3 | 31.5*41.5*6.6 | 60*75*11 | 97*105*14.3 |
9*17*6.3 | 32*40*6.3 | 60*75*12.1 | 98*110*17.6 |
9*19*8.8 | 32*40*8.3 | 60*80*13.2 | 100*108*8.8 |
10*16*6.6 | 32*40*8.8 | 60*80*16 | 100*115*9.9 |
10*18*6.3 | 32*42*8 | 62*72*13.2 | 100*115*11 |
10*18*8.8 | 32*42*11 | 63*71*8.8 | 100*115*13.2 |
10*20*8.3 | 32*44*6.1 | 63*73*6.6 | 100*120*13.2 |
10*20*8.8 | 32*44*6.9 | 63*73*13.2 | 100*120*16 |
11.2*19.2*5.5 | 32*45*11 | 63*75*9.6 | 100*125*13.6 |
12*18*6.6 | 32*47*11 | 63*78*9.9 | 100*125*16.5 |
12*19*5.1 | 32*48*11 | 63*78*11 | 105*120*9.9 |
12*20*5.5 | 33*40*8.8 | 63*78*11.7 | 105*120*11 |
12*20*7 | 33*43*11 | 63*83*13.2 | 105*125*12.5 |
12*22*6.6 | 35*43*7 | 63*83*16.5 | 105*125*13.2 |
12*22*8 | 35*43*8.8 | 64*80*13.2 | 105*125*16.5 |
12*22*8.8 | 35*45*6.6 | 65*73*8.8 | 109*125*11.6 |
12.5*22.5*8.8 | 35*45*8 | 65*75*6.6 | 110*125*9.9 |
13*19*4.4 | 35*45*8.8 | 65*75*8.8 | 110*125*10.1 |
14*21*5.1 | 35*45*11 | 65*75*11 | 110*125*11 |
14*22*5.5 | 35*50*9.9 | 65*75*13.2 | 110*125*13.2 |
14*24*6.1 | 35*50*11 | 65*78*11 | 110*130*11 |
14*24*8.8 | 35*50*2.5 | 65*80*9.9 | 110*130*13.2 |
15*22*5.5 | 35*51*11 | 65*80*11 | 110*130*16.5 |
15*25*8.8 | 35*55*11 | 65*80*13.2 | 110*135*19.8 |
16*22*4.4 | 35.5*45*6.6 | 65*85*13.2 | 112*125*7.7 |
16*24*5.5 | 36*44*5.8 | 67*77*6.6 | 115*130*9.4 |
16*26*8.8 | 36*44*6.6 | 70*78*8.8 | 115*130*9.9 |
17*25*11 | 36*44*8.8 | 70*80*6.6 | 115*130*11 |
18*25*5.1 | 36*46*8.8 | 70*80*11 | 115*135*13.2 |
18*26*5.5 | 36*46*11 | 70*80*13.2 | 115*135*16.5 |
18*28*8.8 | 36*52*11 | 70*83*11 | 115*140*19.8 |
20*26*5.5 | 37*47*8.8 | 70*85*9.9 | 118*133*9.9 |
20*27*6.6 | 37*47*5.5 | 70*85*11 | 120*130*16.5 |
20*28*5.5 | 40*48*5.5 | 70*85*12.5 | 120*135*9.9 |
20*28*6.3 | 40*48*6.6 | 70*85*13.2 | 120*140*11 |
20*28*7.9 | 40*48*8.8 | 70*90*13.2 | 120*140*13.2 |
20*30*6.6 | 40*50*6.6 | 70*90*16.5 | 120*140*16 |
20*30*7.9 | 40*50*7.2 | 71*80*6.6 | 120*140*16.5 |
20*30*8.8 | 40*50*8 | 71*80*7.2 | 125*140*9.9 |
20*32*6.6 | 40*50*8.8 | 72*82*8.8 | 125*140*16.5 |
20*32*8.8 | 40*50*11 | 72*87*9.9 | 125*145*16 |
20*35*11 | 40*53*8.8 | 75*83*6.6 | 125*145*16.5 |
20*35*3.2 | 40*55*9.9 | 75*85*6.6 | 125*150*19.8 |
20*40*3.2 | 40*55*11 | 75*85*8.8 | 130*145*9.9 |
22*29*5.1 | 40*56*11 | 75*85*11 | 130*150*13.2 |
22*30*5.5 | 40*60*13.2 | 75*85*13.2 | 130*150*14.3 |
22*30*6.3 | 41.7*50.7*7.8 | 75*88*11 | 130*150*16.5 |
22*30*6.6 | 42*55*7.7 | 75*90*6.6 | 130*150*17.6 |
22*30*7.7 | 45*53*5.8 | 75*90*9.9 | 130*160*18.7 |
22*30*8.8 | 45*53*8.8 | 75*90*11 | 135*150*9.9 |
22*32*6.6 | 45*55*6.6 | 75*90*12.1 | 135*155*16.5 |
22*32*8 | 45*55*8 | 75*90*12.5 | 136*150*9.9 |
22*32*8.8 | 45*55*11 | 75*90*13.2 | 140*155*9.9 |
22*35*8.8 | 45*56*7.7 | 75*95*13.2 | 140*160*13.2 |
22*35*11 | 45*60*9.9 | 75*100*16.5 | 140*160*15.4 |
22*40*3.2 | 45*60*11 | 78*90*12.1 | 140*160*16 |
22.4*30*5.5 | 45*60*12.7 | 80*88*8.8 | 140*160*16.5 |
22.4*32.4*8.8 | 45*63*13.2 | 80*90*6.6 | 145*160*7.7 |
23.5*31.5*5.5 | 45*65*13.2 | 80*90*8.8 | 145*160*9.9 |
25*33*5.5 | 45*70*16.5 | 80*90*11 | 150*160*8.8 |
25*33*6.1 | 48*63*11.2 | 80*90*13.2 | 150*165*9.9 |
25*33*6.3 | 48*68*13.2 | 80*92*10.5 | 150*170*16.5 |
25*33*8.8 | 50*58*8.8 | 80*93*11 | 150*170*17.6 |
25*33*11 | 50*60*6.6 | 80*95*9.9 | 150*180*19.8 |
25*35*8 | 50*60*8 | 80*95*11 | 155*180*16.5 |
25*35*8.8 | 50*60*8.8 | 80*95*12.1 | 155*180*17.6 |
25*35*11 | 50*60*11 | 80*95*12.5 | 160*175*9.9 |
25*38*8.8 | 50*60*13.2 | 80*100*13.2 | 160*180*16.5 |
25*38*11 | 50*63*8.8 | 80*100*16 | 160*185*17.6 |
25*40*11 | 50*63*11 | 80*100*16.5 | 160*185*19.8 |
28*35*5.5 | 50*65*9.9 | 82*92*11 | 160*190*25 |
28*36*5.8 | 50*65*11 | 84*98*13.2 | 165*180*10.5 |
28*36*8.8 | 50*65*12.5 | 85*95*6.6 | 165*190*17.6 |
28*37*8.6 | 50*70*11 | 85*100*9.9 | 170*190*16.5 |
28*38*8 | 50*70*13.2 | 85*100*11 | 170*195*17.6 |
28*38*8.8 | 53*63*6.6 | 85*100*13.2 | 170*200*16.5 |
28*38*11 | 53*63*11 | 85*105*13.2 | 175*185*12.5 |
28*40*6.6 | 55*65*6.6 | 87*110*11 | 175*200*16.5 |
28*40*11 | 55*65*11 | 88*102*11.6 | 175*200*19.8 |
28*43*11.2 | 55*65*13.2 | 90*98*8.8 | 180*200*13.8 |
28*48*13.2 | 55*68*11 | 90*100*6.6 | 180*205*16.5 |
30*37*6.6 | 55*70*9.9 | 90*100*7.7 | 180*205*17.6 |
30*38*6.3 | 55*70*13.2 | 90*105*9.9 | 190*210*13.2 |
30*38*6.9 | 55*75*13.2 | 90*105*11 | 190*210*16.5 |
30*38*8.8 | 55*80*6.5 | 90*105*12.5 | 190*215*16.5 |
30*40*6.6 | 60*68*8.8 | 90*105*13.2 | 190*215*17.6 |
30*40*7.2 | 60*70*6.6 | 90*110*13.2 | 199*224*17.6 |
30*40*8 | 60*70*8.8 | 90*110*16 | 200*220*13.8 |
30*40*11 | 60*70*9.9 | 92*102*11 | 200*220*16.5 |
30*42*9.9 | 60*70*11 | 95*105*6.6 | 200*225*16.5 |
30*42*11 | 60*70*13.2 | 95*110*9.9 | 200*225*17.6 |
30*45*9.9 | 60*71*7.7 | 95*110*11 | 205*235*19.8 |
