| Brand Name: | SUNCAR |
| Model Number: | SPNC |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
SPNC Rod Seal Combined Piston Rod Seals
SPNC can be directly used in O-ring grooves. Compared with O-rings, it has less sliding resistance and longer life. It can also be used as a pneumatic seal. Because a seal can be sealed in both directions, it can reduce the space for the seal configuration.
Use and Performance:
SPNC is suitable for occasions with wide pressure working range and high sliding speed, standard combined sealing, low friction and strong wear resistance.
Product Parameter:
| Products Name | SPNC Piston Rod Seal |
| Type | Shaft Seal |
| Material | PTFE 31BF+NBR A305 |
| Speed | ≤1.5m/s |
| Pressure | 35≤MPa |
| Temperature | -30℃~+100℃ |
| Main Function | Prevent external leakage |
| Medium | General hydraulic oil, water glycol hydraulic oil and water emulsion type hydraulic oil. |
| AppliC.A.Tion Scope | Hydraulic equipment |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
Our Service:
Experienced sealing products supplier.
Professional design team and sales department for your service.
All the questions will be dealt in 24 hours.
Stable quality---coming from good materials.
Lower price---not cheapest but the lowest at the same quality.
Good service---satisfied factory service before and after sale.
Delivery time---7days-15days for mass production.
Your inquiry will be replied in one working day.

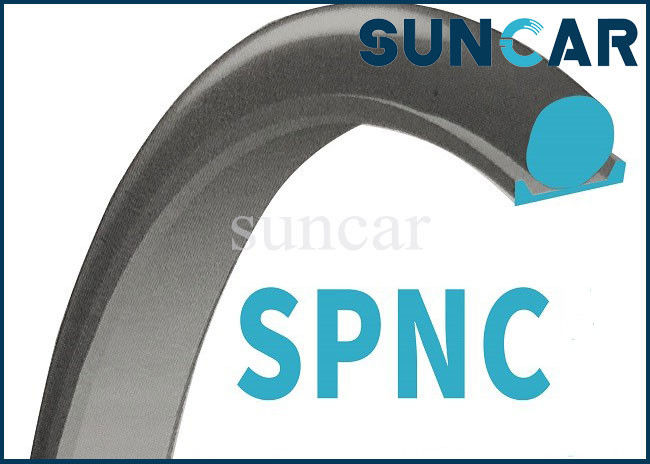

Product Image:
Piston Rod Seal--SPNC Size:
| 3*6*2.3 | 31.5*37.5*4.4 | 71*81*7 | 200*215*10.5 |
| 4*7*2.3 | 32*38*4.4 | 75*85*7 | 205*220*10.5 |
| 5*8*2.3 | 34*40*4.4 | 80*90*7 | 209*224*10.5 |
| 6*9*2.3 | 35*41*4.4 | 85*95*7 | 210*225*10.5 |
| 7*10*2.3 | 35.5*41.5*4.4 | 90*100*7 | 215*230*10.5 |
| 8*11*2.3 | 36*42*4.4 | 95*105*7 | 220*235*10.5 |
| 9*12*2.3 | 38*44*4.4 | 100*110*7 | 225*240*10.5 |
| 10*13*2.3 | 39*45*4.4 | 102*112*7 | 230*245*10.5 |
| 10*14*3 | 40*46*4.4 | 105*115*7 | 235*250*10.5 |
| 11*15*3 | 41*47*4.4 | 110*120*7 | 240*255*10.5 |
| 11.2*15.2*3 | 42*48*4.4 | 112*122*7 | 245*260*10.5 |
| 12*16*3 | 44*50*4.4 | 115*125*7 | 250*265*10.5 |
| 12.5*16.5*3 | 45*51*4.4 | 120*130*7 | 255*270*10.5 |
| 14*18*3 | 46*52*4.4 | 125*135*7 | 260*275*10.5 |
| 15*19*3 | 48*54*4.4 | 130*140*7 | 265*280*10.5 |
| 16*20*3 | 49*55*4.4 | 132*142*7 | 270*285*10.5 |
| 18*22*3 | 50*56*4.4 | 135*145*7 | 275*290*10.5 |
| 20*24*3 | 48*58*7 | 140*150*7 | 280*295*10.5 |
| 21*25*3 | 50*60*7 | 145*155*7 | 285*300*10.5 |
| 22*26*3 | 52*62*7 | 150*160*7 | 290*305*10.5 |
| 22*28*4.4 | 53*63*7 | 150*165*10.5 | 295*310*10.5 |
| 22.4*28.4*4.4 | 55*65*7 | 155*170*10.5 | 300*315*10.5 |
| 24*30*4.4 | 56*66*7 | 160*175*10.5 | 315*330*10.5 |
| 25*31*4.4 | 58*68*7 | 165*180*10.5 | 320*335*10.5 |
| 25.5*31.5*4.4 | 60*70*7 | 170*185*10.5 | 335*350*10.5 |
| 26*32*4.4 | 62*72*7 | 175*190*10.5 | 340*355*10.5 |
| 28*33*4.4 | 63*73*7 | 180*195*10.5 | 355*370*10.5 |
| 29*35*4.4 | 65*75*7 | 185*200*10.5 | 360*375*10.5 |
| 29.5*35.5*4.4 | 67*77*7 | 190*205*10.5 | 375*390*10.5 |
| 30*36*4.4 | 70*80*7 | 195*210*10.5 | 385*400*10.5 |
Part Number:
| GS2000F0 | GS2031F0 | GS2062F0 | GS2093F0 |
| GS2001F0 | GS2032F0 | GS2063F0 | GS2094F0 |
| GS2002F0 | GS2033F0 | GS2064F0 | GS2095F0 |
| GS2003F0 | GS2034F0 | GS2065F0 | GS2096F0 |
| GS2004F0 | GS2035F0 | GS2066F0 | GS2097F0 |
| GS2005F0 | GS2036F0 | GS2067F0 | GS2098F0 |
| GS2006F0 | GS2037F0 | GS2068F0 | GS2099F0 |
| GS2007F0 | GS2038F0 | GS2069F0 | GS2100F0 |
| GS2008F0 | GS2039F0 | GS2070F0 | GS2101F0 |
| GS2009F0 | GS2040F0 | GS2071F0 | GS2102F0 |
| GS2010F0 | GS2041F0 | GS2072F0 | GS2103F0 |
| GS2011F0 | GS2042F0 | GS2073F0 | GS2104F0 |
| GS2012F0 | GS2043F0 | GS2074F0 | GS2105F0 |
| GS2013F0 | GS2044F0 | GS2075F0 | GS2106F0 |
| GS2014F0 | GS2045F0 | GS2076F0 | GS2107F0 |
| GS2015F0 | GS2046F0 | GS2077F0 | GS2108F0 |
| GS2016F0 | GS2047F0 | GS2078F0 | GS2109F0 |
| GS2017F0 | GS2048F0 | GS2079F0 | GS2110F0 |
| GS2018F0 | GS2049F0 | GS2080F0 | GS2111F0 |
| GS2019F0 | GS2050F0 | GS2081F0 | GS2112F0 |
| GS2020F0 | GS2051F0 | GS2082F0 | GS2113F0 |
| GS2021F0 | GS2052F0 | GS2083F0 | GS2114F0 |
| GS2022F0 | GS2053F0 | GS2084F0 | GS2115F0 |
| GS2023F0 | GS2024F0 | GS2025F0 | GS2026F0 |
| GS2028F0 | GS2090F0 | GS2056F0 | GS2060F0 |
| GS2116F0 | GS2091F0 | GS2057F0 | GS2029F0 |
| GS2117F0 | GS2054F0 | GS2058F0 | GS2030F0 |
| GS2118F0 | GS2055F0 | GS2059F0 | GS2027F0 |
| GS2119F0 | GS2092F0 | GS2085F0 | GS2087F0 |
| GS2120F0 | GS2061F0 | GS2086F0 | GS2088F0 |
|
|
