| Brand Name: | SUNCAR |
| Model Number: | SPNO |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

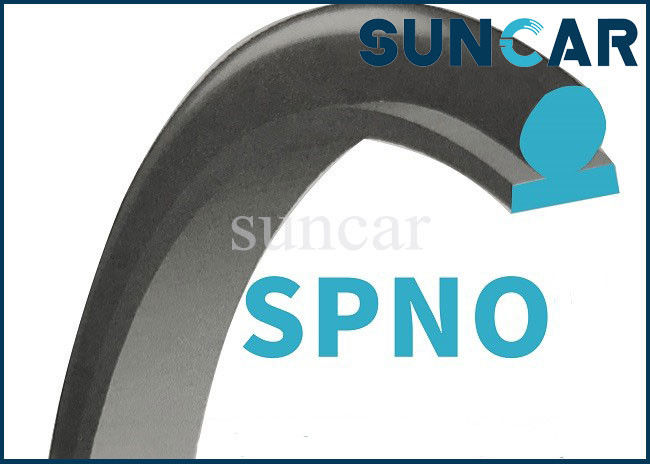

High Pressure Piston Rod Seal SPNO PTFE Hydraulic Oil Seals
SPNO is a standard combination seal, which can be used in a wide range of appliC.A.Tions. Main advantages: suitable for various pressure work and high speed sliding occasions. Standard combination seal. Low friction, strong wear resistance. The sealing ring has high chemical resistance and corrosion resistance, and O-rings and sealing rings of different materials can be selected. SPNO seals can be applied to almost all media.
Feature:
1. Suitable for integrated cylinder.
2. Small installation size.
3. Minimal start-up and movement friction, ensuring smooth movement without crawling even at low speeds.
4. Optional high temperature materials.
5. Easy Installation, Low Permanent Compression.
Product Parameter:
| Products Name | SPNO Piston Rod Seal |
| Advantage | High extrusion resistance, excellent wear resistan |
| Material | PTFE 19YF+NBR A305 |
| Speed | ≤1.5m/s |
| Pressure | ≤35MPa |
| Temperature | -30℃~+100℃ |
| Type | Hydraulic piston rod seal |
| AppliC.A.Tion | Applicable to a wide range of pressure work and sliding high speed occasions. |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| Medium | General hydraulic oil, water glycol hydraulic oil, oil/water emulsion type hydraulic oil. |
| SpecifiC.A.Tion |
As per your request |
Oil Seal Life:
1. Due to the different working conditions of the operating conditions, environmental conditions, lubricants and other related oil seals, the failure modes are different, and their lifespans are also different.
2. The aging of the lip material and the lip wear (The reduction in interference) is more common in the life failure mode.
Our advantage:
1. Customized design: you can choose the size and material you want, we try our best to meet your requirements.
2. High quality: soft and comfortable, durable and high quality.
3. The most favorable price: We are a manufacturer and can give you the most reasonable price.
4. Material safety: It is very safe for human appliC.A.Tion and can be used with confidence in expected appliC.A.Tions.
Product Image:
Piston Rod Seal--SPNO Size:
| 12*18*3 | 60*75*6.3 | 135*150*6.3 | 250*270*9.8 |
| 14*20*3 | 63*78*6.3 | 140*155*6.3 | 260*280*9.8 |
| 16*22*3 | 70*85*6.3 | 145*160*6.3 | 270*290*9.8 |
| 18*24*3 | 70*90*6.3 | 150*170*9.8 | 280*300*9.8 |
| 20*26*3 | 80*95*6.3 | 160*180*9.8 | 290*310*9.8 |
| 22*31*3.8 | 85*100*6.3 | 170*190*9.8 | 300*320*9.8 |
| 25*34*3.8 | 90*105*6.3 | 180*200*9.8 | 310*330*9.8 |
| 28*37*3.8 | 95*110*6.3 | 190*210*9.8 | 320*340*9.8 |
| 30*39*3.8 | 100*115*6.3 | 200*220*9.8 | 330*350*9.8 |
| 32*41*3.8 | 105*120*6.3 | 210*230*9.8 | 340*360*9.8 |
| 36*45*3.8 | 110*125*6.3 | 220*240*9.8 | 350*370*9.8 |
| 40*49*3.8 | 115*130*6.3 | 224*244*9.8 | 360*380*9.8 |
| 45*54*3.8 | 120*135*6.3 | 230*250*9.8 | 370*390*9.8 |
| 50*65*6.3 | 125*140*6.3 | 240*260*9.8 | 380*400*9.8 |
Part Number:
| GS2800V0 | GS2815V0 | GS2830V0 | GS2845V0 |
| GS2801V0 | GS2816V0 | GS2831V0 | GS2846V0 |
| GS2802V0 | GS2817V0 | GS2832V0 | GS2847V0 |
| GS2803V0 | GS2818V0 | GS2833V0 | GS2848V0 |
| GS2804V0 | GS2819V0 | GS2834V0 | GS2849V0 |
| GS2805V0 | GS2820V0 | GS2835V0 | GS2850V0 |
| GS2806V0 | GS2821V0 | GS2836V0 | GS2851V0 |
| GS2807V0 | GS2822V0 | GS2837V0 | GS2852V0 |
| GS2808V0 | GS2823V0 | GS2838V0 | GS2853V0 |
| GS2809V0 | GS2824V0 | GS2839V0 | GS2854V0 |
| GS2810V0 | GS2825V0 | GS2840V0 | GS2855V0 |
| GS2811V0 | GS2826V0 | GS2841V0 | GS2856V0 |
| GS2812V0 | GS2827V0 | GS2842V0 | GS2857V0 |
| GS2813V0 | GS2828V0 | GS2843V0 | GS2844V0 |
|
|
