| Brand Name: | SUNCAR |
| Model Number: | SPNS |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
SPNS Piston Rod Seal For Hydraulic Equipment
SPNS is a combination seal of piston rod professional seals. It has better sealing performance than SPNO and SPN, with minimal sliding resistance and can inhibit crawling. SPNS is suitable for mobile hydraulic equipment/standard cylinders/presses/excavators. This seal has very low friction resistance, eliminates crawling, and ensures high wear resistance.
Advantages:
(1) Chemical resistance and heat resistance.
(2) Wear resistance, Low temperature resistance.
(3) Dry heat resistance.
(4) High temperature, fluid resistant, very low compression setting FKM.
(5) Compression setting resistance.
Product Parameter:
| Products Name | SPNS Piston Rod Seal |
| Features | High pressure resistant, good adaptability, good compressive strength |
| Material | PTFE 55YF+NBR A305 |
| Speed | ≤1.5m/s |
| Pressure | ≤35MPa |
| Temperature | -30℃~+100℃ |
| Medium | Minderal oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
The role of the seal:
Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
(Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

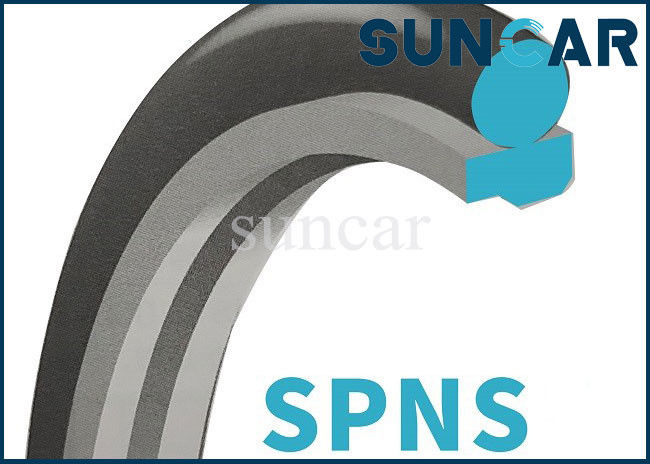

Product Image:
Piston Rod Seal--SPNS Size:
| 4*8.9*2 | 20*30.7*3.9 | 38*48.7*3.9 | 75*90.1*5.9 |
| 5*9.9*2 | 22*29.3*2.9 | 38*53.1*5.9 | 80*95.1*5.9 |
| 6*10.9*2 | 22*32.7*3.9 | 40*50.7*3.9 | 85*100.1*5.9 |
| 7*11.9*2 | 22.4*29.7*2.9 | 40*55.1*5.9 | 90*105.1*5.9 |
| 8*12.9*2 | 22.4*33.1*3.9 | 42*52.7*3.9 | 95*110.1*5.9 |
| 8*15.3*2.9 | 25*32.3*2.9 | 42*57.1*5.9 | 100*115.1*5.9 |
| 10*14.9*2 | 25*35.7*3.9 | 45*55.7*3.9 | 105*120.1*5.9 |
| 10*17.3*2.9 | 28*35.3*2.9 | 45*60.1*5.9 | 110*125.1*5.9 |
| 12*16.9*2 | 28*38.7*3.9 | 50*60.7*3.9 | 112*127.1*5.9 |
| 12*19.3*2.9 | 30*37.3*2.9 | 50*65.1*5.9 | 115*130.1*5.9 |
| 14*18.9*2 | 30*40.7*3.9 | 56*66.7*3.9 | 120*135.1*5.9 |
| 14*21.3*2.9 | 32*39.3*2.9 | 56*71.1*5.9 | 125*140.1*5.9 |
| 15*19.9*2 | 32*42.7*3.9 | 60*70.7*3.9 | 130*145.1*5.9 |
| 15*22.3*2.9 | 35*42.3*2.9 | 60*75.1*5.9 | 135*150.1*5.9 |
| 16*20.9*2 | 35*45.7*3.9 | 63*78.1*5.9 | 140*155.1*5.9 |
| 16*23.3*2.9 | 35.5*42.8*2.9 | 65*80.1*5.9 | 150*165.1*5.9 |
| 18*22.9*2 | 35.5*46.2*3.9 | 67*82.1*5.9 | 160*175.1*5.9 |
| 18*25.3*2.9 | 36*43.3*2.9 | 70*85.1*5.9 | 170*185.1*5.9 |
| 20*27.3*2.9 | 36*46.7*3.9 | 71*86.1*5.9 | 180*195.1*5.9 |
Part Number:
| GS5000V5 | GS5018V5 | GS5036V5 | GS5054V5 |
| GS5001V5 | GS5019V5 | GS5037V5 | GS5055V5 |
| GS5002V5 | GS5020V5 | GS5038V5 | GS5056V5 |
| GS5003V5 | GS5021V5 | GS5039V5 | GS5057V5 |
| GS5004V5 | GS5022V5 | GS5040V5 | GS5058V5 |
| GS5005V5 | GS5023V5 | GS5041V5 | GS5059V5 |
| GS5006V5 | GS5024V5 | GS5042V5 | GS5060V5 |
| GS5007V5 | GS5025V5 | GS5043V5 | GS5061V5 |
| GS5008V5 | GS5026V5 | GS5044V5 | GS5062V5 |
| GS5009V5 | GS5027V5 | GS5045V5 | GS5063V5 |
| GS5010V5 | GS5028V5 | GS5046V5 | GS5064V5 |
| GS5011V5 | GS5029V5 | GS5047V5 | GS5065V5 |
| GS5012V5 | GS5030V5 | GS5048V5 | GS5066V5 |
| GS5013V5 | GS5031V5 | GS5049V5 | GS5067V5 |
| GS5014V5 | GS5032V5 | GS5050V5 | GS5068V5 |
| GS5015V5 | GS5033V5 | GS5051V5 | GS5069V5 |
| GS5016V5 | GS5034V5 | GS5052V5 | GS5070V5 |
| GS5017V5 | GS5035V5 | GS5053V5 | GS5071V5 |
| GS5072V5 | GS5073V5 | GS5074V5 | GS5075V5 |
|
|
