UNI Seal Ring Hydraulic Cylinder Rod Seal and Piston Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number UNI
Minimum Order Quantity Accept trial order
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1000 pcs per month
Product Details
Products Name UNI Piston Rod Seal Material PUR U801+VMQ S813
Speed ≤1m/s Pressure ≤30MPa
Temperature Range -45℃~+100℃ Factory History Ten Years Long
Packing PP Bag Inside,carton Box Outside Shipping Mode By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.)
High Light

UNI Piston Rod Seal

,

Hydraulic Rod Seals

Leave a Message
Product Description



UNI Seal Ring Hydraulic Cylinder Rod Seal and Piston Seal

The main fluids applicable to UNI are general-purpose petroleum-based hydraulic oil and low-temperature petroleum-based hydraulic oil. The piston rod seal cannot be installed in the integral groove, and the sliding resistance is medium.



Product Parameter:

Products Name UNI Piston Rod Seal
Material PUR U801+VMQ S813
Speed ≤1m/s
Pressure ≤30MPa
Temperature Range -45℃~+100℃
Factory History Ten years long
Packing PP bag inside,carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Brand name SUNCAR
Certification ISO9001
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)



Features:

UNI is used in low temperature and high pressure environment. Polyurethane is used in the material, and the backing ring can prevent the problem of interference reduction at low temperatures.



Applications:

Construction machinery, presses, agricultural machinery, lifts, industrial equipment, injection molding machines, etc.



Piston Rod Seal--UNI Size:

40*50*7 60*73*10 80*93*10 110*130*15
45*55*7 65*78*10 85*105*15 120*140*15
50*63*10 70*83*10 90*110*15 130*150*16
55*68*10 75*88*10 100*120*15 140*165*19



Part Number:

FU2002M1 FU2097M1 FU2107M1 FU1165M1
FU0568M1 FU2074M1 FU0990M1 FU1224M1
FU1925M1 FU2088M1 FU1031M1 FU1285M1
FU1995M1 FU2227M1 FU1091M1 FU1332M1



Basic Requirements For Sealing Materials:

The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:

1. Have certain mechanical properties, such as tensile strength, elongation, etc.;

2. Appropriate elasticity and hardness, small compression set;

3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;

4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;

5. Good oxygen resistance and aging resistance, durable;

6. Abrasion resistance, no corrosion to metal;

7. Easy to shape and process, low price.



Our advantage:

1. Customized design: you can choose the size and material you want, we try our best to meet your requirements

2. High quality: soft and comfortable, durable and high quality.

3. The most favorable price: We are a manufacturer and can give you the most reasonable price.

4. Material safety: It is very safe for human application and can be used with confidence in expected applications.



Product Image:

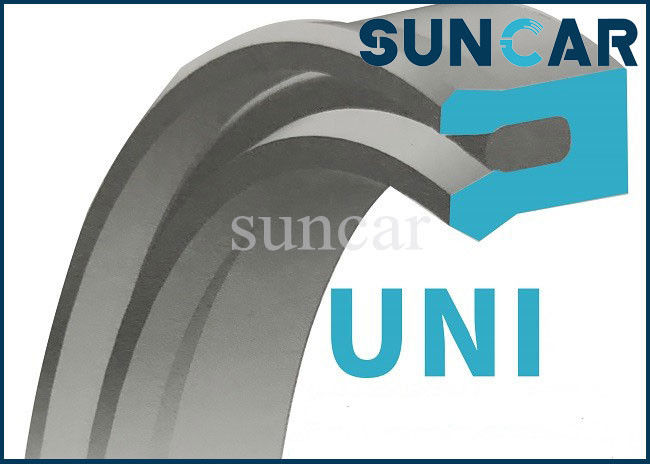

UNI Seal Ring Hydraulic Cylinder Rod Seal and Piston Seal 0

UNI Seal Ring Hydraulic Cylinder Rod Seal and Piston Seal 1
