USH Type Shaft Seal For Hydraulic Piston and Piston Rod Seals
USH is a shaft hole universal sealing ring, which is generally used in hydraulic cylinders and general-purpose hydraulic cylinder CPUs for the sealing of pistons in reciproC.A.Ting hydraulic cylinders.USH can be used for piston and piston rod sealing. The seal has a small cross-section design than UPH, low sliding resistance, and can be installed in an integral groove.
Product Parameter:
| Products Name | USH Piston And Piston Rod Seal |
| Material | NBR A505/FKM F357 |
| Speed | ≤1m/s |
| Pressure | ≤15MPA |
| Temperature | -25℃~+100℃ |
| AppliC.A.Tion | Generally hydraulic cylinders, hydraulic cylinders for engineering machinery, high temperature and high-pressure oil cylinder |
| Hardness | 85±2 A shore |
| Medium | Hydraulic oil |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| Brand name | SUNCAR |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Packing | PP bag inside,carton box outside |
Advantage:
● Particularly strong wear resistance.
● Insensitivity to shock loads and pressure peaks.
● High crush resistance.
● It has an ideal sealing effect under no load and low-temperature conditions.
● Suitable for demanding working conditions.
● Easy to install.
About Oil Seal Use Guides:
1. Oil seals that are not used temporarily should be kept properly to prevent contamination with oil, dust or sun exposure;
2. When the shaft diameter is worn into a "V"-shaped groove, so that the contact pressure between the new oil seal lip and the shaft cannot be reduced, the displacement method can be used to make up;
3. When the lubriC.A.Ting oil volume of the reducer is less than or equal to 7 liters, the amount of lubricant added per liter is 20-30ml;
4. When 7-15 liters, the amount added is 15-20ml per liter of lubriC.A.Ting oil;
5. When>15 liters, add 10ml per liter of lubriC.A.Ting oil.

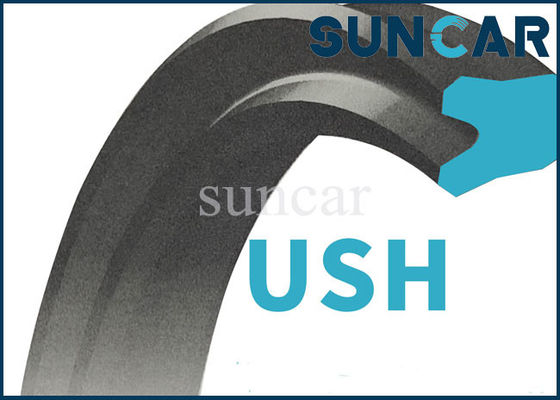

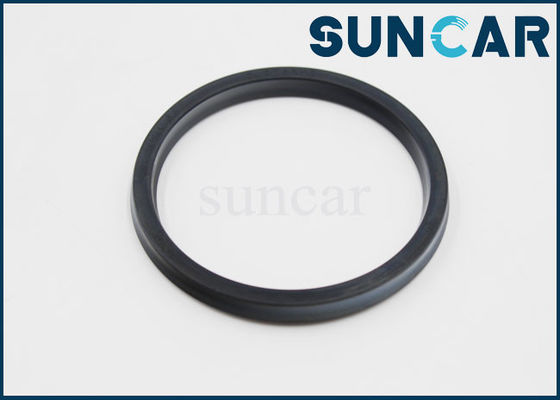

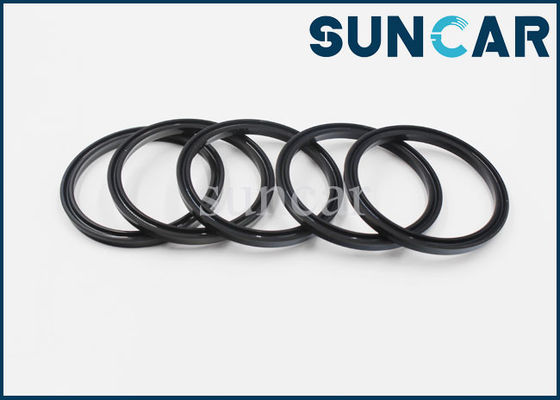

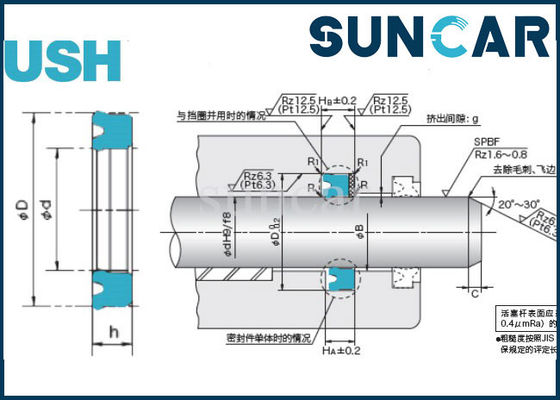

Product Image:
Piston And Piston Rod Seal--USH Size:
| 12*20*5 | 45*55*6 | 100*115*9 | 195*215*12 |
| 14*22*5 | 45*56*7 | 106*120*8.5 | 200*220*12 |
| 16*24*5 | 50*60*6 | 110*125*9 | 204*224*12 |
| 18*26*5 | 53*63*6 | 112*125*8.5 | 220*240*12 |
| 20*28*5 | 55*65*6 | 112*125*9 | 224*244*12 |
| 22*30*5 | 56*66*6 | 115*130*8.5 | 230*250*12 |
| 22.4*30*5 | 58*68*6 | 118*132*8.5 | 240*260*12 |
| 23.5*31.5*5 | 60*70*6 | 125*140*9 | 250*270*12 |
| 24*32*5 | 60*71*7 | 130*145*9 | 260*280*14 |
| 35*33*5 | 63*73*6 | 132*145*8.5 | 280*300*14 |
| 27*35*5 | 65*75*6 | 136*150*8.5 | 295*315*14 |
| 28*35.5*5 | 67*77*6 | 140*155*9 | 300*320*12 |
| 28*36*5 | 70*80*6 | 145*160*9 | 335*355*14 |
| 30*40*6 | 71*80*6 | 150*165*9 | 355*375*14 |
| 31.5*41.5*6 | 75*85*6 | 155*170*9 | 380*400*14 |
| 32*42*6 | 80*90*6 | 160*175*9 | 400*420*14 |
| 35*45*6 | 85*95*6 | 165*180*9 | 450*470*14 |
| 35.5*45*6 | 85*100*9 | 170*185*9 | 500*525*17 |
| 35.5*45.5*6 | 90*105*9 | 175*190*9 | 180*200*12 |
| 36*46*6 | 95*110*9 | 98*112*8.5 | 190*210*12 |
Part Number:
| CU3248K0 | CU0497K0 | CU1051K0 | CU3038K0 |
| CU2692K0 | CU0567K0 | CU1067K0 | CU1483K0 |
| CU2548K0 | CU0572K0 | CU1082K0 | CU2516K0 |
| CU0180K0 | CU0619K0 | CU1135K0 | CU3263K0 |
| CU0212K0 | CU0679K0 | CU1157K0 | CU1543K0 |
| CU3017K0 | CU0694K0 | CU1178K0 | CU1563K0 |
| CU0260K0 | CU0722K0 | CU1179K0 | CU1596K0 |
| CU0267K0 | CU3255K0 | CU3259K0 | CU1609K0 |
| CU2971K0 | CU0746K0 | CU1204K0 | CU1637K0 |
| CU0276K0 | CU0750K0 | CU1252K0 | CU1657K0 |
| CU3187K0 | CU0786K0 | CU1280K0 | CU1678K0 |
| CU0320K0 | CU0809K0 | CU1291K0 | CU1702K0 |
| CU2536K0 | CU0828K0 | CU1306K0 | CU1962K0 |
| CU0357K0 | CU0849K0 | CU1323K0 | CU1756K0 |
| CU0382K0 | CU0879K0 | CU1343K0 | CU3267K0 |
| CU2819K0 | CU0901K0 | CU1359K0 | CU1793K0 |
| CU0424K0 | CU0939K0 | CU3261K0 | CU3270K0 |
| CU0451K0 | CU1959K0 | CU1406K0 | CU2002K0 |
| CU3253K0 | CU0984K0 | CU1429K0 | CU3271K1 |
| CU3040K1 | CU1024K0 | CU3262K0 | CU3273K0 |
|
|
