| Brand Name: | SUNCAR |
| Model Number: | USI |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
PUR Oil Seals USI Hydraulic Piston And Piston Rod Sealing
USI can be used for piston and piston rod sealing. The seal has a small cross-section design, low sliding resistance, and can be installed in an integral groove. USI is a seal with a smaller cross-section than UPI, improved to prevent damage caused by back pressure.
Product Parameter:
| Products Name | USI Piston And Piston Rod Seal |
| Material | PUR U593 |
| Speed | ≤1m/s |
| Pressure | ≤21MPa |
| Temperature Range | -35℃~+80℃ |
| AppliC.A.Tion | Use for industry hydraulic cylinder |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT,etc.) |
Storage Precautions:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
8. The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.

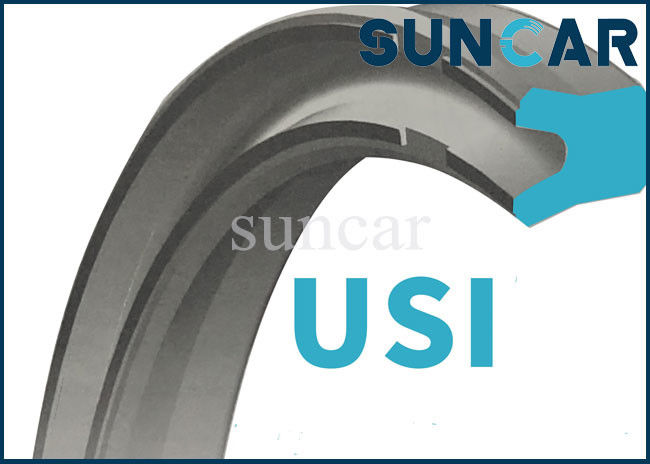

Product Image:
Piston And Piston Rod Seal--USI Size:
| 10*18*5 | 28*36*5 | 53*63*6 | 86*100*8.5 |
| 12*20*5 | 30*38*5 | 55*65*6 | 89*104*9 |
| 12.5*20*5 | 30*40*6 | 56*66*6 | 90*100*6 |
| 14*22*5 | 31.5*41.5*6 | 58*68*6 | 90*105*9 |
| 16*24*5 | 32*42*6 | 60*70*6 | 95*110*9 |
| 17*25*5 | 33*43*6 | 60*71*7 | 96*111*9 |
| 18*26*5 | 34*44*6 | 61*71*6 | 98*112*8.5 |
| 20*28*5 | 35*45*6 | 63*73*6 | 100*115*9 |
| 20*30*6 | 35.5*45*6 | 65*75*6 | 105*120*9 |
| 22*30*5 | 35.5*45.5*6 | 67*77*6 | 106*120*8.5 |
| 22.4*30*5 | 36*46*6 | 70*80*6 | 110*125*9 |
| 23.5*31.5*5 | 38*48*6 | 71*80*6 | 112*125*9 |
| 24*32*5 | 40*50*6 | 75*85*6 | 115*130*9 |
| 25*33*5 | 45*55*6 | 80*90*6 | 118*132*8.5 |
| 25*35*6 | 45*56*7 | 80*95*9 | 125*140*9 |
| 26*34*5 | 46*56*6 | 85*95*6 | 132*145*8.5 |
| 27*35*5 | 50*60*6 | 85*100*9 | 135*150*8.5 |
Part Number:
| FU0064S0 | FU0320S0 | FU0619S0 | FU0984S0 |
| FU2464S0 | FU0321S0 | FU0679S0 | FU2476S0 |
| FU2465S0 | FU0355S0 | FU0694S0 | FU2372S0 |
| FU0116S0 | FU0357S0 | FU0772S0 | FU1021S0 |
| FU0150S0 | FU0382S0 | FU2473S0 | FU1024S0 |
| FU2466S0 | FU2055S0 | FU0746S0 | FU1051S0 |
| FU0180S0 | FU2471S0 | FU0750S0 | FU2477S0 |
| FU0212S0 | FU2263S0 | FU2474S0 | FU1067S0 |
| FU0214S0 | FU0424S0 | FU0786S0 | FU1082S0 |
| FU2467S0 | FU0451S0 | FU0809S0 | FU1125S0 |
| FU0260S0 | FU0452S0 | FU0828S0 | FU1135S0 |
| FU0267S0 | FU2472S0 | FU0849S0 | FU1157S0 |
| FU2468S0 | FU2240S0 | FU0879S0 | FU1179S0 |
| FU0276S0 | FU0497S0 | FU0901S0 | FU1195S0 |
| FU0279S0 | FU0567S0 | FU0939S0 | FU1204S0 |
| FU2469S0 | FU0572S0 | FU0942S0 | FU1252S0 |
| FU2470S0 | FU2662S0 | FU2475SO | FU1291S0 |
|
|
