Wiper Seal DKBZ PUR Dust Seal Hydraulic Cylinder Mechanical Seals

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number DKBZ
Minimum Order Quantity Accept trial order
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1500 pcs per month
Product Details
Products Name DKBZ Dust Seal Material PUR U801+SPCC
Hardness 70-90 Shores Temperature Range -55℃~100℃
Application Hydraulic Cylinder OEM/ODM Welcome
High Light

Wiper Seals

,

DKBZ Hydraulic Dust Seals

,

DKBZ Dust Wiper Seals

Leave a Message
Product Description



Wiper Seal DKBZ PUR Dust Seal Hydraulic Cylinder Mechanical Seals

DKBZ has improved the dust resistance of DKBI and is a dust seal that balances oil resistance and scratch resistance. This is a seal that prevents external dust from entering in order to protect the equipment and maintain the function of the seal. DKBZ has very low oil scraping performance and cannot be installed in the integral groove.



Product Parameter:

Products Name DKBZ Dust Seal
Material PUR U801+SPCC
Type Dust Wiper Seal
Stock Available
Hardness 70-90 Shores
Temperature Range -55℃~100℃
Application Hydraulic Cylinder
OEM/ODM Welcome
Packing PP bag inside,carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Brand name SUNCAR
Certification ISO9001
Shipping Mode By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.)



About Dust-proof Sealing Materials:

Rubber is mostly used for hydraulic machinery, felt is mostly used for pneumatic machinery, metal is used to deal with the external icing of the piston rod in the cylinders of airplanes and cold zones, and metal is also used in the chemical industry to prevent adhesions on the piston rod. Dust seals are very important to protect critical hydraulic equipment. Infiltration of dust will not only wear the seals, but also greatly wear the guide sleeve and the piston rod.



Seal Classification:

(1) Static seal: There are three main categories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.

(2) Dynamic seal: It can be divided into two basic types: rotary seal and reciprocating seal.

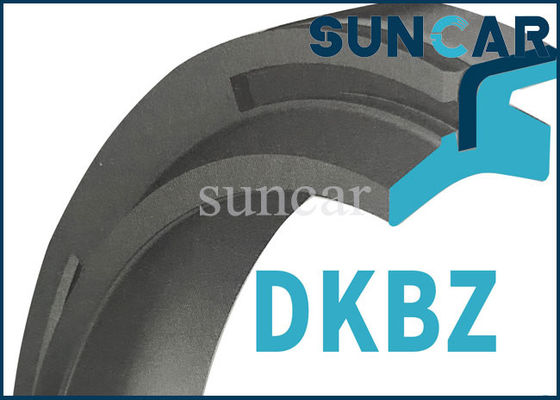

Product Image:

Wiper Seal DKBZ PUR Dust Seal Hydraulic Cylinder Mechanical Seals 0



Dust Seal--DKBZ Size:

20*32*6/9 45*57*7/10 75*89*8/11.5 105*121*9/13
25*37*6/9 50*62*7/10 80*94*8/11.5 110*126*9/13
30*42*6/9 55*69*8/11.5 85*99*8/11.5 115*131*9/13
32*44*7/10 60*74*8/11.5 90*104*8/11.5 120*136*9/13
35*47*7/10 65*79*8/11.5 95*109*8/11.5 130*146*9/13
40*52*7/10 70*84*8/11.5 100*114*8/11.5



Part Number:

FD0995B0 FD2633B0 FD3596B0 FD6722B0
FD1301B0 FD2831B0 FD3720B0 FD4196B0
FD1664B0 FD3033B0 FD3828B0 FD4272B0
FD1870B0 FD3187B0 FD3913B0 FD4326B0
FD2041B0 FD3381B0 FD3976B0 FD4438B0
FD2342B0 FD3493B0 FD4046B0 FD4533B0
