| Brand Name: | SUNCAR |
| Model Number: | DSPB |
| MOQ: | Accept trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

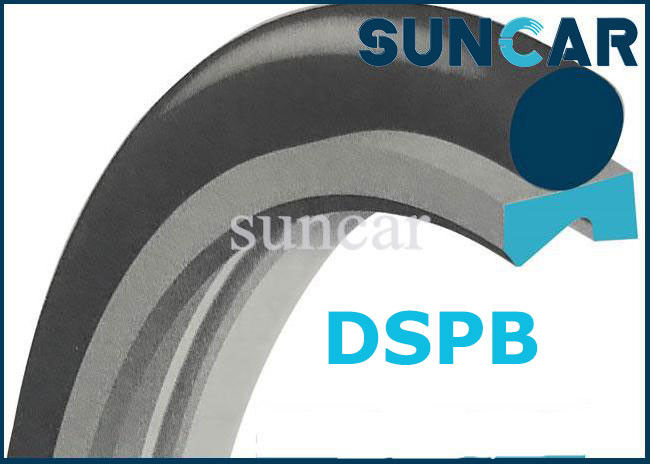

DSPB Type Hydraulic Dust Seal Cylinder Seals
DSPB type hydraulic seal is a relatively soft, non-metallic ring, captured in a groove or fixed in a combination of rings, forming a seal assembly, to block or separate fluid in reciproC.A.Ting motion appliC.A.Tions. Hydraulic seals are vital in machinery. Their use is critical in providing a way for fluid power to be converted to linear motion.
Features:
(1) Chemical, thermal resistance, wear resistance, low temperature resistance, dry heat resistance;
(2) Compression set resistant;
(3) Petroleum hydraulic fluid resistant;
(4) Phosphate-ester resistant;
(5) Improved performance.
Product Parameter:
| Products Name | DSPB Type Dust Seal |
| Material | 11YF+A305 |
| Standard | Standard, nonstandard |
| Temperature | -30℃~+100℃ |
| OEM/ODM | Welcome |
| Performance | Wear |
| AppliC.A.Tion | Valve |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
Product Installation Image:
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
Dust Seals--DSPB Size:
| 4*8.9*2.1 | 20*30.7*4.1 | 40*50.7*4.1 | 80*95.1*6.1 |
| 5*9.9*2.1 | 22*29.3*3.1 | 40*55.1*6.1 | 85*100.1*6.1 |
| 6*10.9*2.1 | 22*32.7*4.1 | 42*52.7*4.1 | 90*105.1*6.1 |
| 7*11.9*2.1 | 25*32.3*3.1 | 42*57.1*6.1 | 95*110.1*6.1 |
| 8*12.9*2.1 | 25*35.7*4.128 | 45*55.7*4.1 | 100*115.1*6.1 |
| 8*15.3*3.1 | 28*35.3*3.1 | 45*60.1*6.1 | 105*120.1*6.1 |
| 10*14.9*2.1 | 28*38.7*4.1 | 50*60.7*4.1 | 110*125.1*6.1 |
| 10*17.3*3.1 | 30*37.3*3.1 | 50*65.1*6.1 | 112*127.1*6.1 |
| 12*16.9*2.1 | 30*40.7*4.1 | 56*66.7*4.1 | 115*130.1*6.1 |
| 12*19.3*3.1 | 32*39.3*3.1 | 56*71.1*6.1 | 120*135.7*6.1 |
| 14*18.9*2.1 | 32*42.7*4.1 | 60*70.7*4.1 | 125*140.1*6.1 |
| 14*21.3*3.1 | 35*42.3*3.1 | 60*75.1*6.1 | 130*145.1*6.1 |
| 15*19.9*2.1 | 35*45.7*4.1 | 63*78.1*6.1 | 135*150.1*6.1 |
| 15*22.3*3.1 | 35.5*42.8*3.1 | 65*80.1*6.1 | 140*155.1*6.1 |
| 16*20.9*2.1 | 35.5*46.2*4.1 | 67*82.1*6.1 | 150*165.1*6.1 |
| 16*23.3*3.1 | 36*43.3*3.1 | 70*85.1*6.1 | 160*175.1*6.1 |
| 18*22.9*2.1 | 36*46.7*4.1 | 71*86.1*6.1 | 170*185.1*6.1 |
| 18*25.3*3.1 | 38*48.7*4.1 | 75*90.1*6.1 | 180*195.1*6.1 |
Part Number:
| GS5500V0 | GS5519V0 | GS5540V0 | GS5559V0 |
| GS5501V0 | GS5520V0 | GS5541V0 | GS5560V0 |
| GS5502V0 | GS5521V0 | GS5542V0 | GS5561V0 |
| GS5503V0 | GS5524V0 | GS5543V0 | GS5562V0 |
| GS5504V0 | GS5525V0 | GS5544V0 | GS5563V0 |
| GS5505V0 | GS5526V0 | GS5545V0 | GS5564V0 |
| GS5506V0 | GS5527V0 | GS5546V0 | GS5565V0 |
| GS5507V0 | GS5528V0 | GS5547V0 | GS5566V0 |
| GS5508V0 | GS5529V0 | GS5548V0 | GS5567V0 |
| GS5509V0 | GS5530V0 | GS5549V0 | GS5568V0 |
| GS5510V0 | GS5531V0 | GS5550V0 | GS5569V0 |
| GS5511V0 | GS5532V0 | GS5551V0 | GS5570V0 |
| GS5512V0 | GS5533V0 | GS5552V0 | GS5571V0 |
| GS5513V0 | GS5534V0 | GS5553V0 | GS5572V0 |
| GS5514V0 | GS5535V0 | GS5554V0 | GS5573V0 |
| GS5515V0 | GS5536V0 | GS5555V0 | GS5574V0 |
| GS5516V0 | GS5537V0 | GS5556V0 | GS5558V0 |
| GS5517V0 | GS5538V0 | GS5557V0 | GS5539V0 |
|
|
| Brand Name: | SUNCAR |
| Model Number: | DSPB |
| MOQ: | Accept trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
DSPB Type Hydraulic Dust Seal Cylinder Seals
DSPB type hydraulic seal is a relatively soft, non-metallic ring, captured in a groove or fixed in a combination of rings, forming a seal assembly, to block or separate fluid in reciproC.A.Ting motion appliC.A.Tions. Hydraulic seals are vital in machinery. Their use is critical in providing a way for fluid power to be converted to linear motion.
Features:
(1) Chemical, thermal resistance, wear resistance, low temperature resistance, dry heat resistance;
(2) Compression set resistant;
(3) Petroleum hydraulic fluid resistant;
(4) Phosphate-ester resistant;
(5) Improved performance.
Product Parameter:
| Products Name | DSPB Type Dust Seal |
| Material | 11YF+A305 |
| Standard | Standard, nonstandard |
| Temperature | -30℃~+100℃ |
| OEM/ODM | Welcome |
| Performance | Wear |
| AppliC.A.Tion | Valve |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
Product Installation Image:
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
Dust Seals--DSPB Size:
| 4*8.9*2.1 | 20*30.7*4.1 | 40*50.7*4.1 | 80*95.1*6.1 |
| 5*9.9*2.1 | 22*29.3*3.1 | 40*55.1*6.1 | 85*100.1*6.1 |
| 6*10.9*2.1 | 22*32.7*4.1 | 42*52.7*4.1 | 90*105.1*6.1 |
| 7*11.9*2.1 | 25*32.3*3.1 | 42*57.1*6.1 | 95*110.1*6.1 |
| 8*12.9*2.1 | 25*35.7*4.128 | 45*55.7*4.1 | 100*115.1*6.1 |
| 8*15.3*3.1 | 28*35.3*3.1 | 45*60.1*6.1 | 105*120.1*6.1 |
| 10*14.9*2.1 | 28*38.7*4.1 | 50*60.7*4.1 | 110*125.1*6.1 |
| 10*17.3*3.1 | 30*37.3*3.1 | 50*65.1*6.1 | 112*127.1*6.1 |
| 12*16.9*2.1 | 30*40.7*4.1 | 56*66.7*4.1 | 115*130.1*6.1 |
| 12*19.3*3.1 | 32*39.3*3.1 | 56*71.1*6.1 | 120*135.7*6.1 |
| 14*18.9*2.1 | 32*42.7*4.1 | 60*70.7*4.1 | 125*140.1*6.1 |
| 14*21.3*3.1 | 35*42.3*3.1 | 60*75.1*6.1 | 130*145.1*6.1 |
| 15*19.9*2.1 | 35*45.7*4.1 | 63*78.1*6.1 | 135*150.1*6.1 |
| 15*22.3*3.1 | 35.5*42.8*3.1 | 65*80.1*6.1 | 140*155.1*6.1 |
| 16*20.9*2.1 | 35.5*46.2*4.1 | 67*82.1*6.1 | 150*165.1*6.1 |
| 16*23.3*3.1 | 36*43.3*3.1 | 70*85.1*6.1 | 160*175.1*6.1 |
| 18*22.9*2.1 | 36*46.7*4.1 | 71*86.1*6.1 | 170*185.1*6.1 |
| 18*25.3*3.1 | 38*48.7*4.1 | 75*90.1*6.1 | 180*195.1*6.1 |
Part Number:
| GS5500V0 | GS5519V0 | GS5540V0 | GS5559V0 |
| GS5501V0 | GS5520V0 | GS5541V0 | GS5560V0 |
| GS5502V0 | GS5521V0 | GS5542V0 | GS5561V0 |
| GS5503V0 | GS5524V0 | GS5543V0 | GS5562V0 |
| GS5504V0 | GS5525V0 | GS5544V0 | GS5563V0 |
| GS5505V0 | GS5526V0 | GS5545V0 | GS5564V0 |
| GS5506V0 | GS5527V0 | GS5546V0 | GS5565V0 |
| GS5507V0 | GS5528V0 | GS5547V0 | GS5566V0 |
| GS5508V0 | GS5529V0 | GS5548V0 | GS5567V0 |
| GS5509V0 | GS5530V0 | GS5549V0 | GS5568V0 |
| GS5510V0 | GS5531V0 | GS5550V0 | GS5569V0 |
| GS5511V0 | GS5532V0 | GS5551V0 | GS5570V0 |
| GS5512V0 | GS5533V0 | GS5552V0 | GS5571V0 |
| GS5513V0 | GS5534V0 | GS5553V0 | GS5572V0 |
| GS5514V0 | GS5535V0 | GS5554V0 | GS5573V0 |
| GS5515V0 | GS5536V0 | GS5555V0 | GS5574V0 |
| GS5516V0 | GS5537V0 | GS5556V0 | GS5558V0 |
| GS5517V0 | GS5538V0 | GS5557V0 | GS5539V0 |
