Mechanical Seals DWI Hydraulic Dust Seal
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Certification | ISO9001 |
| Model Number | DWI |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Supply Ability | 1000 Piece per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | DWI Dust Seal | Material | PUR U801+SPCC |
|---|---|---|---|
| Style | Mechanical Seal | Characteristic | Dust Sealing Ring For Harsh Conditions |
| Temperature Range | -55℃~100℃ | Size | Any Size Can Customized |
| High Light | Wiper Seals,DWI Dust Seals,DWI Wiper Seals |
||
Product Description

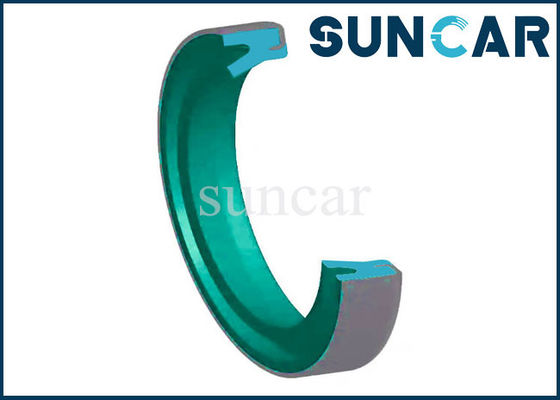

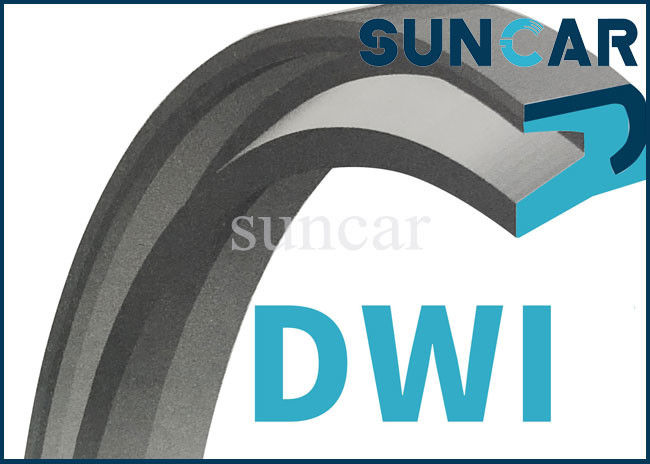

Mechanical Seals DWI Hydraulic Dust Seal
DWI seal is a reciprocating dust seal. It can be used in harsh dust conditions such as construction equipment. It has the characteristics of dustproof, heavy-duty dust scraping ability, and harsh environment (such as mud/ash).
Main purpose:
The exposed part of the piston rod of the hydraulic cylinder is a seal that prevents dust from entering, protects the equipment and maintains the sealing performance.
Applications:
Hydraulic cylinders, construction machinery, presses, agricultural machinery, elevators, industrial equipment, injection molding machines, etc.
Product Parameter:
| Products Name | DWI Dust Seal |
| Material | PUR U801+SPCC |
| Style | Mechanical seal |
| Characteristic | Dust sealing ring for harsh conditions |
| Temperature Range | -55℃~100℃ |
| Size | Any size can customized |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| Certification | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
Product Installation Image:
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
⒉ Appropriate elasticity and hardness, small compression set;
⒊ High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
⒌ Good oxygen resistance and aging resistance, durable;
⒍ Abrasion resistance, no corrosion to metal;
⒎ Easy to shape and process, low price.
Dust Seal--DWI Size:
| 40*50*7 | 63*77*8 | 85*99*8 | 110*126*9 |
| 45*57*7 | 65*79*8 | 90*104*8 | 110*130*10 |
| 50*62*7 | 70*84*8 | 95*109*8 | 120*136*9 |
| 55*69*8 | 75*89*8 | 100*114*8 | 130*146*9 |
| 60*74*8 | 80*94*8 | 105*121*9 | 140*160*10 |
Part Number:
| FD2342G0 | FD3313E0 | FD3913F0 | FD4326F0 |
| FD2633H0 | FD3381I0 | FD3976L0 | FD4438G0 |
| FD2831F0 | FD3493I0 | FD4046F0 | FD4533G0 |
| FD3033F0 | FD3596F0 | FD4141I0 | FD3828H0 |
| FD3187H0 | FD3720G0 | FD4196F0 | VOE11107246 |
