| Brand Name: | SUNCAR |
| Model Number: | LBH |
| MOQ: | Acceptable trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

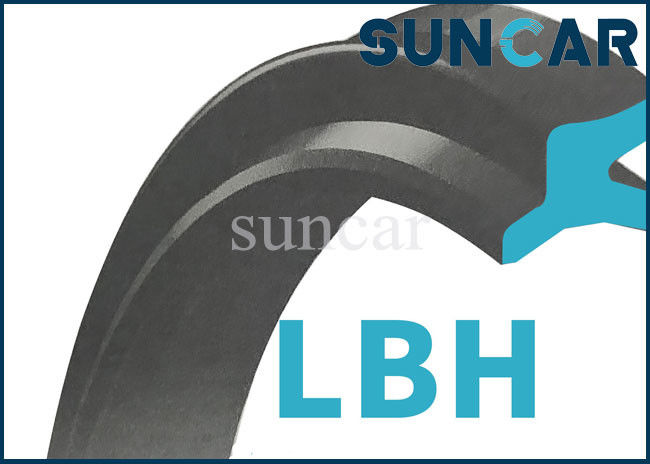

LBH Dust Seal Hydraulic Seals For Rod
LBH dust seal is a lip-seal for rod which fits tightly in the groove. LBH dust seal is used in the hydraulic cylinder to prevent all kinds of impurities and dirt from entering. Made of standard 85-degree nitrile rubber material, but also can use fluoro rubber material. LBH is a double acting dust seal.
Product Parameter:
| Products Name | LBH Dust Seal |
| Material | PUR A505 |
| Speed | ≤1m/s |
| Temperature Range | -35℃~+110℃ |
| Hardness | 70 -90 shoreA |
| Style | Hydraulic wiper seal |
| Media | Hydraulic oils, air |
| AppliC.A.Tion | Agricultural machinery, hydraulic and air cylinders |
| Advantages | High abrasion resistance, widely applicable, easy installation |
| Effect | Prevent dust, dirt, sand into the hydraulic cylinder |
| Size | Standard or custom |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
Basic Requirements For Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Appropriate elasticity and hardness, small compression set;
2. Have certain mechanical properties, such as tensile strength, elongation, etc.;
3. Abrasion resistance, no corrosion to metal;
4. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
5. Good oxygen resistance and aging resistance, durable;
6. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
7. Easy to shape and process, low price.
Product Installation Image:
Dust Seal--LBH Size:
| 12*20*4.5/6 | 50*58*5/6.5 | 106*116*6/8 | 170*185*11/14 |
| 12.5*20.5*4.5/6 | 53*61*5/6.5 | 110*120*6/8 | 175*188*7/9.5 |
| 14*22*4.5/6 | 55*63*5/6.5 | 110*120*6/8 | 180*193*7/9.5 |
| 16*24*4.5/6 | 56*64*5/6.5 | 112*122*6/8 | 180*194*7/9.5 |
| 18*26*4.5/6 | 60*68*5/6.5 | 115*125*6/8 | 190*203*7/9.5 |
| 20*28*4.5/6 | 63*71*5/6.5 | 118*128*6/8 | 200*213*7/9.5 |
| 22*30*4.5/6 | 65*73*5/6.5 | 120*133*7/9.5 | 205*218*7/9.5 |
| 22.4*30.4*4.5/6 | 67*75*5/6.5 | 125*138*7/9.5 | 210*223*7/9.5 |
| 25*33*4.5/6 | 70*80*6/8 | 132*145*7/9.5 | 224*237*7/9.5 |
| 28*36*4.5/6 | 71*81*6/8 | 140*153*7/9.5 | 240*256*10/13 |
| 30*38*5/6.5 | 75*85*6/8 | 145*158*7/9.5 | 250*266*9/12 |
| 31.5*39.5*5/6.5 | 80*90*6/8 | 150*163*7/9.5 | 250*266*10/13 |
| 32*40*5/6.5 | 85*95*6/8 | 155*168*7/9.5 | 280*296*9/12 |
| 35*43*5/6.5 | 90*100*6/8 | 160*173*7/9.5 | 355*371*10*13 |
| 35.5*43.5*5/6.5 | 95*105*6/8 | 160*174*7/9.5 | 355*375*10/14 |
| 40*48*5/6.5 | 100*110*6/8 | 165*178**7/9.5 | 400*416*10/13 |
| 45*53*5/6.5 | 105*115*6/8 | 170*183*7/9.5 | 500*520*11.5/15.5 |
Part Number:
| CL0480C0 | CL0087C3 | CL0489C0 | CL0166C2 |
| CL0447C1 | CL0100C0 | CL0490C0 | CL0478C0 |
| CL0432C0 | CL0104C0 | CL0199C1 | CL0466C0 |
| CL0293C0 | CL0105C1 | CL0446C0 | CL0245C1 |
| CL0011C0 | CL0107C0 | CL0324C1 | CL0171C0 |
| CL0017C0 | CL0109C1 | CL0204C1 | CL0174C0 |
| CL0240C0 | CL0115C0 | CL0300C0 | CL0179C1 |
| CL0026C3 | CL0118C1 | CL0207C0 | CL0182C0 |
| CL0031C0 | CL0121C0 | CL0267C0 | CL0185C0 |
| CL0042C0 | CL0125C0 | CL0212C0 | CL0486C0 |
| CL0050C0 | CL0127C0 | CL0532C0 | CL0188C1 |
| CL0054C0 | CL0138C1 | CL0301C0 | CL0487C0 |
| CL0363C0 | CL0142C0 | CL0529C0 | CL0190C0 |
| CL0066C1 | CL0149C0 | CL0460C0 | CL0488C0 |
| CL0072C0 | CL0152C0 | CL0162C0 | CL0191C0 |
| CL0077C2 | CL0154C2 | CL0448C0 | CL0193C0 |
|
|
