| Brand Name: | SUNCAR |
| Model Number: | BRT2 |
| MOQ: | 100 PCS |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

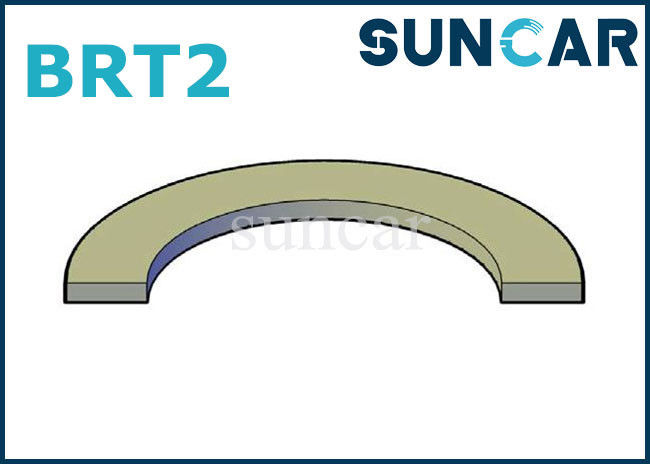

BRT2 Buckup Ring For Construction Machinery
Backup ring is a ring-shaped closed or non-closed part that is fastened on the shaft and used to axially or circumferentially fix other parts installed on the shaft. BRT2 backup ring is used to increase the pressure resistance of the seal.
Product Parameter:
| Products Name | BRT2 Backup Ring |
| Material | 19YF 80NP |
| Model | BRT2 |
| Type | Shaft seal |
| Performance | Temperature |
| Shape | O-Ring |
| Standard | Standard |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| OEM | Available |
Classified According To The Role Of Backup Ring:
Detailed classifiC.A.Tion:
Backup rings include: taper pin locking backup ring, screw backup ring, screw locking backup ring with locking ring, steel wire backup ring, elastic backup ring for hole-type A, elastic backup ring for hole-type B, shaft use circlip-A type, shaft circlip-B type, screw-fastened shaft end backup ring, bolt-fastened shaft end backup ring, hole wire backup ring, shaft wire backup ring, etc.
Delivery:
SpecifiC.A.Tion of BRT2 Backup Ring:
| 14*22*2 | 56*66*3 | 100*120*3 | 180*200*4 |
| 16*24*2 | 60*70*3 | 105*120*3 | 190*210*4 |
| 18*26*2 | 60*71*3 | 105*125*3 | 190*215*4 |
| 20*28*2 | 63*73*3 | 106*120*3 | 200*220*4 |
| 22.4*30*2 | 65*75*3 | 106*121*3 | 200*225*4 |
| 22.4*30.4*2 | 65*80*3 | 110*125*3 | 204*224*4 |
| 23.5*31.5*2 | 67*77*3 | 110*130*3 | 210*230*4 |
| 25*33*2 | 70*80*3 | 112*125*3 | 210*235*4 |
| 25*35*2 | 70*85*3 | 115*130*3 | 220*240*4 |
| 28*35.5*3 | 71*80*3 | 115*135*3 | 220*245*4 |
| 28*36*3 | 71*81*3 | 118*133*3 | 225*245*4 |
| 30*40*3 | 75*85*3 | 120*135*3 | 230*250*4 |
| 31.5*41.5*3 | 75*90*3 | 120*140*3 | 240*260*4 |
| 35*45*3 | 80*90*3 | 125*140*3 | 240*265*4 |
| 35.5*45*3 | 80*95*3 | 140*155*3 | 250*270*4 |
| 35.5*45.5*3 | 85*100*3 | 145*160*3 | 260*285*4 |
| 36*46*3 | 85*105*3 | 150*165*3 | 130*145*3 |
| 40*50*3 | 90*105*3 | 155*170*4 | 130*150*3 |
| 45*55*3 | 90*110*3 | 160*175*4 | 135*150*3 |
| 45*56*3 | 95*110*3 | 165*180*4 | 136*150*3 |
| 50*60*3 | 95*115*3 | 170*185*4 | 270*295*4 |
| 53*63*3 | 98*112*3 | 170*190*4 | 280*305*4 |
| 55*65*3 | 100*115*3 | 175*190*4 | 290*315*4 |
Purpose of Backup Ring:
(1) The fixing of parts on the shaft is divided into axial fixing and circumferential fixing;
(2) The methods of axial fixing include: shaft shoulder or collar fixing, shaft end backup ring or conical surface fixing, shaft sleeve fixing, round nut fixing, elastic backup ring fixing;
(3) The backup ring mainly plays the role of axial fixation, in which the conical surface and the backup ring are fixed with a higher centering degree;
(4) The backup ring of the rolling bearing is equivalent to a movable rib, which is used to block the rollers and is convenient for installation. The structure of the backup ring includes a flat backup ring, an oblique backup ring and a middle backup ring.
|
|
