| Model Number: | TCN |
| MOQ: | Acceptable trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
Standard Oil Seals TCN Shaft Seal
TCN skeleton oil seal is a mechanical component used to seal oil. It isolates the parts of the transmission component that need to be lubriC.A.Ted from the output components so that lubriC.A.Tion and leakage are not allowed.
AppliC.A.Tion:
1. Fluid system (static & dynamic)
2. Hydraulic system (dynamic)
3. Pneumatic system (dynamic)
4. Oil or grease media sealing
5. Water media sealing
6. Automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,exercise equipment.
Product Parameter:
| Products Name | TCN Oil Seal |
| Material | FKM, NBR |
| Temperature | -35℃~+250℃ |
| Pressure | 30MPA |
| Hardness | 50-90shore A |
| Rotational Speed | 0-25m/s |
| Type | hydraulic |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| Medium | LubriC.A.Ting oil, grease, water |
| Feature | High efficienty, long service life |
Measures For Oil Leakage Due To Inadequate Oil Seal:
1. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter.
2. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards.
3. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled.
4. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.

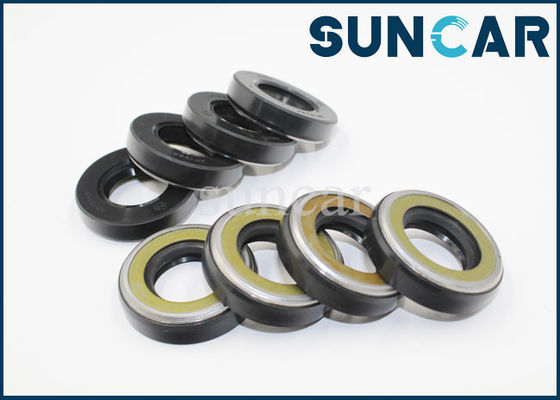

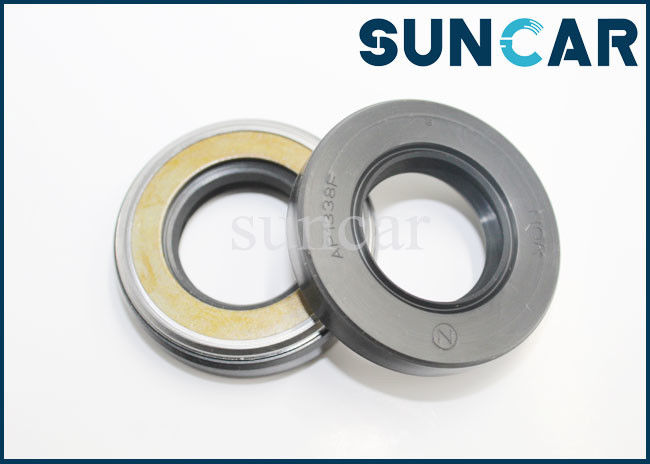

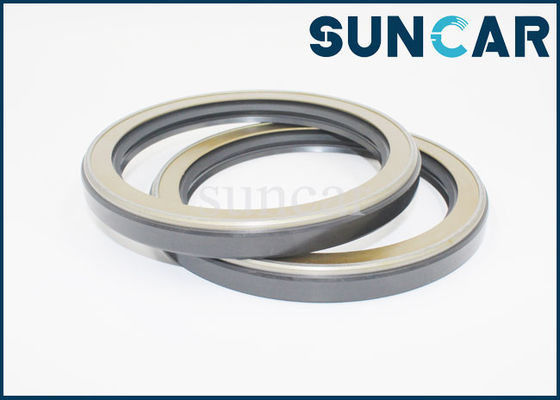

Product Image:
Size of TCN Oil Seal:
| 25*45*11 | 48*70*12 | 90*115*13 | 150*180*14 |
| 28*48*11 | 50*72*12 | 95*120*13 | 170*200*16 |
| 30*50*11 | 55*78*12 | 100*125*13 | 190*225*16 |
| 32*52*11 | 60*82*12 | 105*135*14 | 34.93*57.15*7.9 |
| 34*51*11 | 62*58*12 | 110*140*14 | 145*175*14 |
| 35*55*11 | 65*90*13 | 115*145*14 | 35*55*12 |
| 38*58*11 | 70*95*13 | 120*150*14 | 72*95*13 |
| 40*62*11 | 70*95*13 | 125*155*14 | 45*68*12 |
| 40*62*12 | 75*100*13 | 130*160*14 | 22*42*11 |
| 42*65*12 | 80*105*13 | 135*165*14 | 52*75*9/12 |
| 45*68*12 | 85*110*13 | 140*170*14 | 52*75*12 |
Part Number:
| 708-3S-12150 | 096-7376 | XKAH-00388 | 4260561 |
| 4320490 | XKAH-00888 | 4396696 | 1297925 |
| 218496 | 4364328 | XKAY-00444 | 708-8K-12141 |
| 218496 | 212231 | 8T-7925 | 4260561 |
| 708-21-12970 | 708-25-52861 | XKAY-00274 | 708-27-22810 |
| YN15V00009S027 | 4613831 | 708-8K-12141 | 708-27-22811 |
| 708-1T-11880 | 4310055 | 706-7G-11291 | 1994561 |
| PTCV35V | 708-2H-12140 | 4396696 | 4191666 |
| 708-8D-12220 | 4S00822 | 708-1F-12281 | 708-2H-22570 |
| SA8230-27160 | YN10V00032S775 | 3530541 | 708-27-22811 |
| 708-8D-12221 | 4212841 | 708-2G-12220 | 4232070 |
| 215823 | SA8220-15000 | 708-2H-25380 | 706-77-40370 |
| VOE14621703 | XKAH-00929 | 708-27-22810 | 4191666 |
| 4340358 | 096-3998 | 353-0541 | 708-2H-22570 |
| 706-75-43410 | 8T7925 | 706-8J-41620 | 14552320 |
| 708-25-52860 | VOE14535452 | 07012-00100 | 4232070 |
| 706-7E-11280 | 129-7925 | XKAQ-00087 | 2180-1254 |
| 708-25-52860 | XKAY-00521 | 7Y1766 | XKAQ-00032 |
| YN32W01060P1 | 07012-00115 | 07012-00110 | 199-4561 |
|
|
