Seal O-Ring Kit For Hydraulic Pump Main Pump
| Products Name | Pump Valve Seal Ring |
| Material | PTFE+NBR |
| Model | Various model |
| Temperature | 30℃~+200℃(depending on the o-ring compounds) |
| Hardness | ShoreA 30-100 |
| Speed | ≤1.5m/s |
| Pressure | ≤60MPa |
| Packing | PP bag inside,carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| Shipping Mode | By air,by sea,by express(FedEx, UPS, DHL, TNT, etc.) |
| OEM | Available |
| Keyword | Mechanical seal |
| AppliC.A.Tion | For Excavator, all industries |
Performance:
● Medium:
Mineral hydraulic oil based hydraulic fluids,barely flammable hydraulic fluids,water,air and others.
● AppliC.A.Tion Scope:
They are used on straight reciproC.A.Ting motioned high pressure system oil cylinder and piston seal of servo oil cylinder for double sized sealing
● Features:
- Wear resistance, oil resistance, high temperature resistance.
- High pressure resistance and pressure stability under pressure.
- Good compression resistance.
- Little friction, no creep.
- Larger extrusion gaps are allowed.
Advantages Of O-rings:
Compared with other types of seals, O-rings have the following advantages:
1. Suitable for various sealing forms: static sealing, dynamic sealing;
2. Suitable for all kinds of materials, the size and groove have been standardized, and the interchangeability is strong;
3. Suitable for a variety of motion methods: rotary motion, axial reciproC.A.Ting motion or combined motion (such as rotary reciproC.A.Ting combined motion);
4. Suitable for a variety of different sealing media: oil, water, gas, chemical media or other mixed media;
5. Simple design, compact structure, convenient assembly and disassembly;
6. Variety of materials; low cost; small dynamic friction resistance.

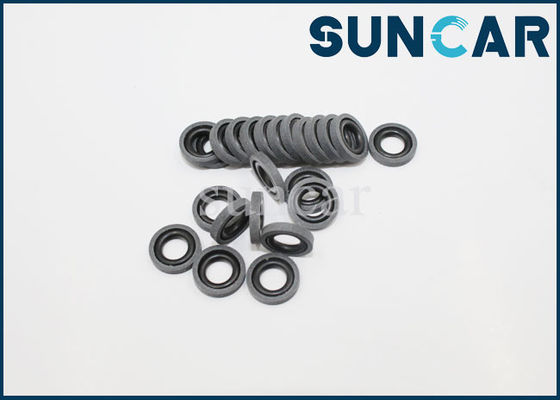

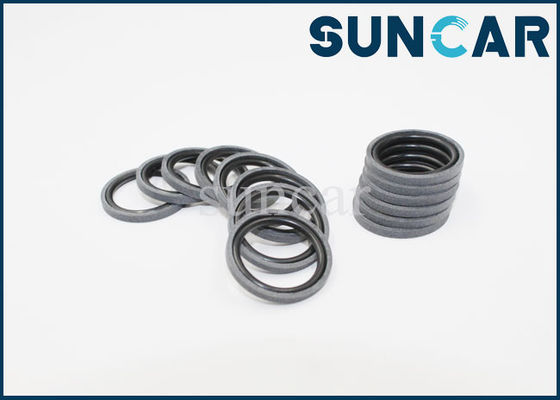

Product Image:
Some Part Number of Hydraulic Pump Main Pump Seal O-Ring Kit:
708-1S-15390
708-2L-35690
708-2L-24680
708-2H-15710
708-2L-35710
708-2G-15260
708-2L-24670
708-2L-35680
708-2G-15320
708-2H-15360
SpecifiC.A.Tion of Seal O-Ring Kit:
| 7*2 | 17*2 | 21.2*2 | 27*2 |
| 8*2 | 18*2 | 21.3*2 | 28*2 |
| 9*1.5 | 18.5*2 | 21.4*2 | 29*2 |
| 9*1.7 | 19*2 | 21.5*2 | 30*2 |
| 9*2 | 19.5*2 | 21.6*2 | 31*2 |
| 10*1.7 | 20*2 | 21.8*2 | 32*2 |
| 10*1.9 | 20.4*1.7 | 22*2 | 36*2 |
| 10*2 | 20.4*2 | 22.8*2 | 38*2 |
| 11*2 | 20.5*1.7 | 23*2 | 45*2 |
| 12*2 | 20.5*2 | 23.5*2 | 50*2.5 |
| 13*2 | 20.6*1.7 | 23.6*2 | 51*2 |
| 14*2 | 20.6*2 | 24*2 | 51*2.5 |
| 15*2 | 20.8*2 | 25*2 | 52*2.5 |
| 16*2 | 21*2 | 26*2 | 55*2.5 |
Contact information:
If you are looking for a company to help you building your own brand of seals/seal kits/o-ring kits , or any other OEM services for other items.You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals seal kits,o-ring kits and excavator spare parts.For more details, please contact us. We will reply you as soon as possible.
|
|
