31Y1-20430 31Y120430 Boom Cylinder Seal Repair Kit For R160LC-7A R170W-7 Hyundai Excavator

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 31Y1-20430 HYUNDAI R170W-7, R170W-7A, R160LC-7, R160LC-7A, R180LC-7, R180LC-7A
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 1500 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Boom Cylinder Seal Repair Kit Part No. 31Y1-20430, 31Y120430
Rod 80 MM Bore 115 MM
Cylinder 31N5-50120 Feature Durability, Longevity, Resistance To Abrasion, Etc
High Light

31Y1-20430 Cylinder Seal Kit

,

Boom Cylinder Seal Repair Kit

,

HYUNDAI Seal Kit

Leave a Message
Product Description



31Y1-20430 31Y120430 Boom Cylinder Seal Repair Kit For R160LC-7A R170W-7 Hyundai Excavator



Product name Boom Cylinder Seal Repair Kit
Model Number HYUNDAI 7 Series Wheel Excavator R170W-7,R170W-7A
7-Series Crawler Excavator R160LC-7, R160LC-7A, R180LC-7, R180LC-7A
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Feature Durability, longevity, resistance to abrasion, etc
Packing PP bag inside, carton box outside
Payment Terms Western Union, L/C, T/T, , D/A, D/P
MOQ Acceptable trial order
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Part No. 31Y1-20430, 31Y120430
Place of Origin Guangdong, China
Size Standard size
Delivery time Negotiable
Type Cylinder seal kit
Brand name SUNCAR
CertifiC.A.Tion ISO9001
AppliC.A.Tion Boom
Rod 80 MM
Bore 115 MM
Cylinder 31N5-50120



Terms Of Service:

1. You may email us if you have a question or would like to submit a comment.

2. Generally, email will be responded to within 24 hours; except on every Sunday and holidays. We will reply as soon as we back in office.

3. Though we pride ourselves on fast order processing and shipping, sometimes delays may occur. Please be patient, and keep in touch with us via email.

4. Should you be dissatisfied with our service for any reason, please contact us.

5. We have important business in the overseas market due to our high quality produtc and reasonable prices.

6. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference.

7. We always promise to offer excellent products as well as satisfactory service to our clients all over the world.

8. If you have any problems about details please contact us, we can supply different oil seal and other spare parts with different models as you like.



Related Parts:

31Y1-20430 31Y120430 Boom Cylinder Seal Repair Kit For R160LC-7A R170W-7 Hyundai Excavator 0

Pos. Part No. Parts Name QTY.
*. 31N5-50110 CYLINDER ASSEMBLY,LH [1]
*. 31N5-50120 CYLINDER ASSEMBLY,RH [1]
*-1. 31Y1-20380 BOOM CYL SUB ASSY [1]
1 31Y1-20350 TUBE ASSY [1]
2 31Y1-04090 ROD ASSY [1]
3 31Y1-04120 GLAND [1]
4 S732-080040 BUSHING [1]
5 Y191-086000 RING-SNAP [1]
K6. Y200-080011 SEAL-ROD [1]
K7. Y180-080020 RING-BACK UP [1]
K8. Y240-080011 RING-BUFFER [1]
K9. Y110-080011 WIPER-DUST [1]
10 Y190-094000 RING-SNAP [1]
K11. S631-105004 O-RING [2]
K12. S641-105002 RING-BACK UP [1]
K13. S641-105003 RING-BACK UP [1]
14 31YC-21050 RING-CUSHION [1]
15 31Y1-03660 PISTON [1]
K16. S632-070004 O-RING [1]
K17. S642-070003 RING-BACK UP [2]
K18. Y420-115000 SEAL-PISTON [1]
K19. Y310-115000 RING-WEAR [2]
K20. Y440-115000 RING-DUST [2]
21 31YC-61050 NUT-LOCK [1]
22 S109-180604 BOLT-SOCKET [9]
28 31YC-11075 BUSHING-PIN [1]
29 31YC-11085 BUSHING-PIN [1]
30 S700-075205 SEAL-DUST [2]
31 Y000-070200 SEAL-DUST [2]
23 31Y1-04130 BAND ASSY-LH [1]
23 31Y1-04020 BAND ASSY-RH [1]
23-1. 31Y1-04140 BAND SUB ASSEMBLY,LH [1]
23-1. 31Y1-041R0 BAND SUB ASSY-RH [1]
23-2. 31YC-32020 BAND [1]
23-3. S071-022730 U-BOLT [2]
23-4. S011-100352 BOLT-HEX [4]
23-5. S201-101002 NUT-HEXAGON HEAD [4]
23-6. S411-100002 WASHER-SPRING [8]
24 31Y1-20390 PIPE ASSY-R,LH [1]
24 31Y1-20400 PIPE ASSY-R,RH [1]
25 31Y1-20410 PIPE ASSY-B,LH [1]
25 31Y1-20420 PIPE ASSY-B,RH [1]
K26. Y171-019004 O-RING [2]
27 S107-100454 BOLT-SOCKET HEAD [8]
K. 31Y1-20430 SEAL KIT [1]



Product Image:

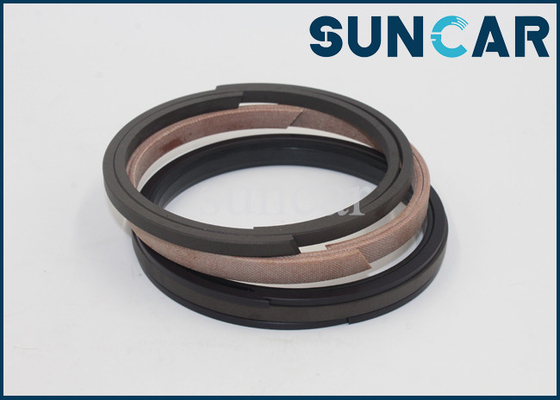

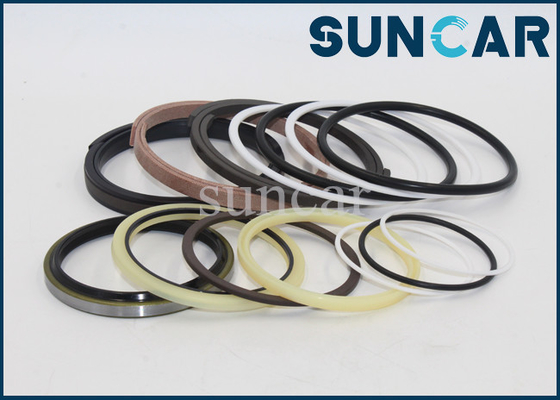

31Y1-20430 31Y120430 Boom Cylinder Seal Repair Kit For R160LC-7A R170W-7 Hyundai Excavator 1

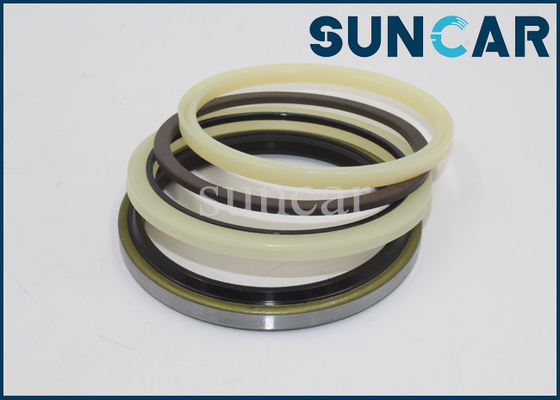

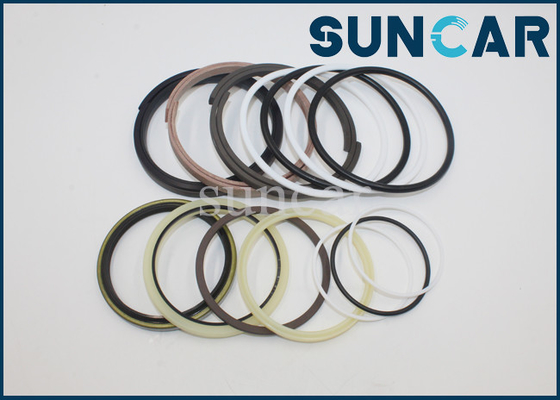

31Y1-20430 31Y120430 Boom Cylinder Seal Repair Kit For R160LC-7A R170W-7 Hyundai Excavator 2
