| Brand Name: | SUNCAR |
| Model Number: | 31Y1-31150 Hyundai R140LC-9, R140LC-9A, R140LC-9S(BRAZIL), R140LC-9V(INDIA), R145CR-9, R145CR-9A, RB140LC-9S, R140LC9(INDIA), R140W-9, R140W-9A, R140W-9S |
| MOQ: | Acceptable trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

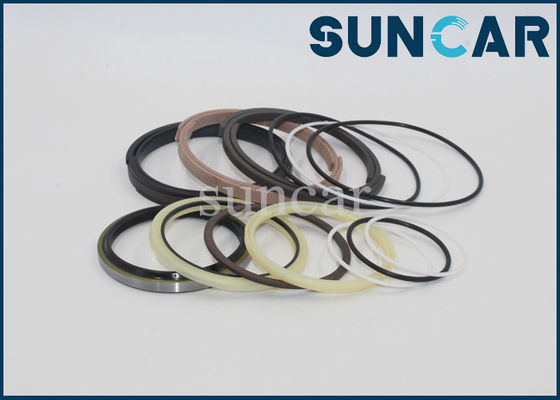

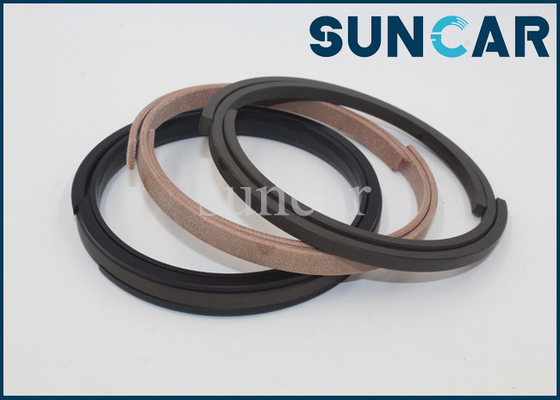

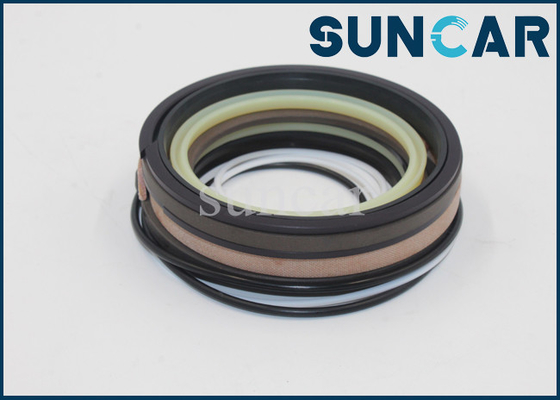

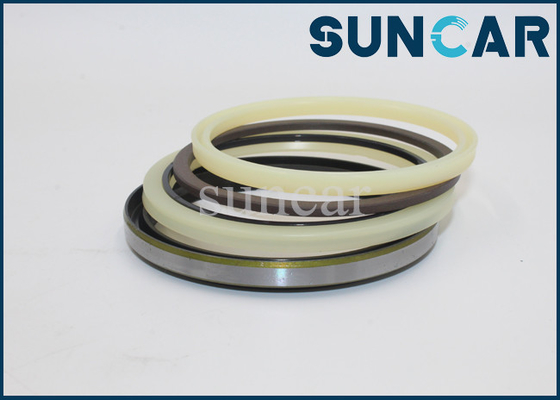

Arm Seal Kit 31Y1-31150 31Y131150 Hydraulic Cylinder Kit For Hundai R140LC-9 R145CR-9
| Product name | Arm Cylinder Seal Kit |
| Model Number |
9-SERIES CRAWLER EXCAVATOR R140LC-9, R140LC-9A, R140LC-9S(BRAZIL), R140LC-9V(INDIA), R145CR-9, R145CR-9A, RB140LC-9S, R140LC9(INDIA); 9-SERIES WHEEL EXCAVATOR R140W-9, R140W-9A, R140W-9S; F-SERIES CRAWLER EXCAVATOR HX140L; F-SERIES WHEEL EXCAVATOR HW140 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| MOQ | Acceptable trial order |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 31Y1-31150, 31Y131150 |
| Place of Origin | Guangdong, China |
| Type | Cylinder seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Arm |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q4-50130 | [1] | ARM CYLINDER ASSY |
| *. | 31Q4-50131 | [1] | ARM CYLINDER ASSY |
| *. | 31Q4-50132 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-30971 | [1] | ARM CYL SUB ASSY |
| *-1. | 31Y1-30972 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-30980 | [1] | TUBE ASSY |
| 2 | 31Y1-31041 | [1] | ROD ASSY |
| 3 | 31Y1-31091 | [1] | GLAND |
| 4 | S732-080030 | [1] | BUSHING-DD2 |
| 5 | Y191-086000 | [1] | RING-SNAP |
| K6. | Y220-080013 | [1] | SEAL-ROD |
| K7. | Y180-080020 | [1] | RING-BACK UP |
| K8. | Y240-080012 | [1] | RING-BUFFER |
| K9. | Y110-080011 | [1] | WIPER-DUST,DKBI,DLW |
| 10 | Y190-094000 | [1] | RING-SNAP |
| K11. | S632-110004 | [1] | O-RING |
| K12. | 31YC-CG110 | [1] | RING-BACK UP |
| 13 | 31YC-26051 | [1] | RING-CUSHION |
| 13 | 31YC-28051 | [1] | RING-CUSHION |
| 14 | 31Y1-31130 | [1] | PISTON |
| K15. | Y420-115002 | [1] | SEAL-PISTON |
| K16. | Y310-115003 | [2] | RING-WEAR |
| K17. | Y440-115000 | [2] | RING-DUST |
| K18. | S632-060004 | [1] | O-RING |
| K19. | S642-060003 | [2] | RING-BACK UP |
| 20 | 31YC-68030 | [1] | NUT-LOCK |
| 21 | S114-080144 | [1] | SCREW-SET |
| K22. | S632-115004 | [1] | O-RING |
| 23 | S109-160754 | [12] | BOLT-SOCKET |
| 24 | 31YC-15080 | [2] | BUSHING-PIN |
| 24 | 61Q6-98810 | [2] | BUSHING-PIN |
| 24 | 61M9-90750 | [2] | BUSHING-PIN |
| 25 | Y020-070000 | [4] | SEAL-DUST,DLI,KPU |
| 26 | 31YC-2A080 | [1] | VALVE-CHECK |
| 27 | 31YC-99071 | [1] | SPRING-COIL |
| K28. | S631-014004 | [1] | O-RING |
| 29 | P220-110103 | [1] | PLUG-HEX |
| 30 | 31Y1-31590 | [1] | BAND ASSY |
| 30 | 31Y1-31591 | [1] | BAND ASSY |
| 30-1. | 31Y1-31600 | [1] | BAND SUB ASSY |
| 30-2. | 31Y1-31610 | [1] | BAND SUB ASSY |
| 30-3. | S011-100352 | [2] | BOLT-HEX |
| 30-3. | S011-100356 | [2] | BOLT-HEX |
| 30-4. | S411-100002 | [2] | WASHER-SPRINIG |
| 30-4. | S411-100006 | [2] | WASHER-SPRING |
| 30-5. | S070-052738 | [1] | U-BOLT |
| 30-5. | S070-052736 | [1] | U-BOLT |
| 30-6. | S205-101002 | [2] | NUT-HEX |
| 30-6. | S205-101006 | [2] | NUT-HEX |
| 30-7. | S411-100002 | [2] | WASHER-SPRINIG |
| 30-7. | S411-100006 | [2] | WASHER-SPRING |
| 31 | 31Y1-31660 | [1] | PIPE ASSY-R |
| 31 | 31Y1-31661 | [1] | PIPE ASSY-R |
| K32. | Y171-019004 | [1] | O-RING |
| 33 | S107-100454 | [4] | BOLT-SOCKET |
| 33 | S107-100456 | [4] | BOLT-SOCKET |
| K. | 31Y1-31150 | [1] | SEAL KIT |
FAQ:
Q1. How do I choose a raw compound for my appliC.A.Tion?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs, keeping in mind the cost of materials.
Q2. What's the price of your product?
A: Please try your best to make your inquiry including each details requirements, like quantity, size, color, logo printing, package....,in order to our sells could send you an accurate quote at first time.
Q3. If the product does not fit to my machine, can I return the goods?
A: We offer exchange service for defective products during the warranty time as well as refund service. Please contact us before returning the products. Customer will pay the freight of returning goods, and we are responsible for exchanging and sending the replaced or repaired items to you.
Q4. If the product can’t work in general or damage in working, How can i do ?
A: Product damage or cant work ,you could feedback to us ,and send some pictures(or video)to us to check the problems.If is our product quality problem ,we resend to you ,but do not afford all freight.
Product Image:
|
|
