| Brand Name: | SUNCAR |
| Model Number: | 31Y1-35030 Hyundai R160LC-9, R160LC-9A, R160LC-9S, R180LC-9, R180LC-9A, R180LC-9S, RB160LC-9S, R160W-9A, R170W-9, R170W-9S, R180W-9A, R180W-9S, HX160L, HX180L |
| MOQ: | Trial order acceptable |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |

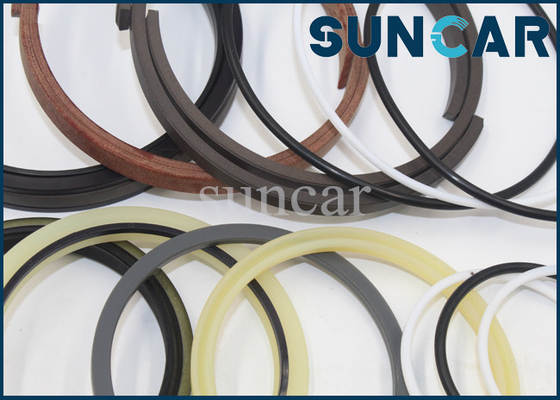

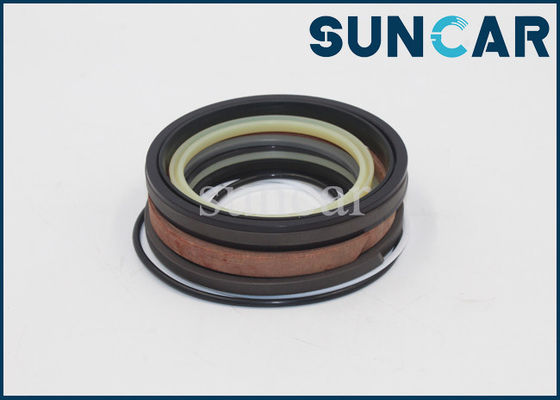

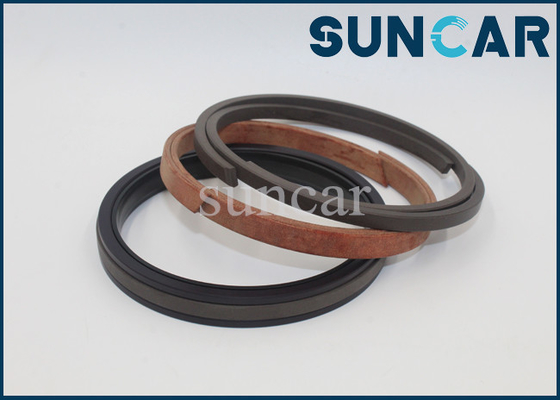

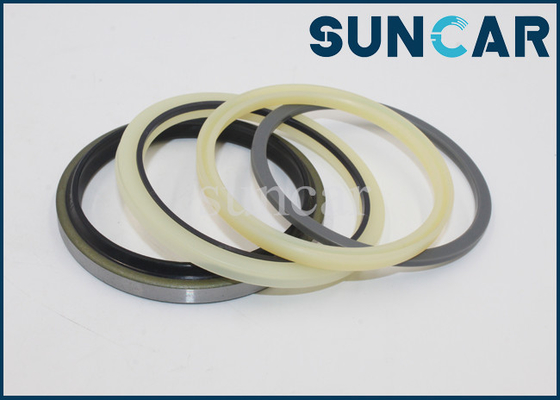

31Y1-35030 31Y135030 Bucket Cylinder Repair Seal Kit Service Kits Fits For R160LC-9 R180LC-9 Hyundai
| Product Name | Bucket Cylinder Repair Seal Kit |
| Part Number | 31Y1-35030, 31Y135030 |
| Model |
9-SERIES CRAWLER EXCAVATOR R160LC-9, R160LC-9A, R160LC-9S, R180LC-9, R180LC-9A, R180LC-9S, RB160LC-9S; 9-SERIES WHEEL EXCAVATOR R160W-9A, R170W-9, R170W-9S, R180W-9A, R180W-9S; F-SERIES CRAWLER EXCAVATOR HX160L, HX180L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Customer Service:
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q5-60111 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q5-60112 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-34801 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-34811 | [1] | TUBE ASSY |
| 2 | 31Y1-34881 | [1] | ROD ASSY |
| 2 | 31Y1-34882 | [1] | ROD ASSY |
| 3 | 31Y1-34930 | [1] | GLAND |
| 4 | S732-075030 | [1] | BUSHING-DD2 |
| 5 | Y191-081000 | [1] | RING-SNAP |
| K6. | Y220-075013 | [1] | SEAL-ROD |
| K7. | Y180-075020 | [1] | RING-BACK UP |
| K8. | Y240-075012 | [1] | RING-BUFFER |
| K9. | Y110-075011 | [1] | WIPER-DUST |
| 10 | Y190-089000 | [1] | RING-SNAP |
| K11. | S632-105004 | [1] | O-RING |
| K12. | S642-105003 | [1] | RING-BACK UP |
| 13 | 31YC-26040 | [1] | RING-CUSHION |
| 14 | 31Y1-34970 | [1] | PISTON |
| 14 | 31Y1-34971 | [1] | PISTON |
| K15. | Y420-110000 | [1] | SEAL-PISTON |
| K16. | Y310-110100 | [2] | RING-WEAR |
| K17. | Y440-110000 | [2] | RING-DUST |
| K18. | S632-055004 | [1] | O-RING |
| K19. | S642-055003 | [2] | RING-BACK UP |
| 20 | 31YC-68020 | [1] | NUT-LOCK |
| 20 | 31YC-68025 | [1] | NUT-LOCK |
| 21 | S114-080144 | [1] | SCREW-SET |
| K22. | S632-110004 | [1] | O-RING |
| 23 | S109-140704 | [14] | BOLT-SOCKET |
| 24 | 61Q6-05560 | [1] | BUSHING-PIN |
| 25 | 61Q6-98810 | [1] | BUSHING-PIN |
| 25 | 61QH-72610 | [1] | BUSHING-PIN |
| 26 | Y020-070000 | [4] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-34990 | [2] | BAND ASSY |
| 27 | 31Y1-34991 | [2] | BAND ASSY |
| 27-1. | 31Y1-35000 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31050 | [1] | BAND |
| 27-3. | S011-100352 | [2] | BOLT-HEX |
| 27-3. | S011-100356 | [2] | BOLT-HEX |
| 27-4. | S411-100002 | [2] | WASHER-SPRINIG |
| 27-4. | S411-100006 | [2] | WASHER-SPRING |
| 27-5. | 31YC-36010 | [1] | CLAMP-PIPE |
| 27-6. | S015-120502 | [1] | BOLT-HEX |
| 27-6. | S015-120506 | [1] | BOLT-HEX |
| 27-7. | S411-120002 | [1] | WASHER-SPRING |
| 27-7. | S411-120006 | [1] | WASHER-SPRING |
| 28 | 31Y1-36041 | [1] | PIPE ASSY-R |
| 28 | 31Y1-36042 | [1] | PIPE ASSY-R |
| 29 | 31Y1-36051 | [1] | PIPE ASSY-B |
| 29 | 31Y1-36052 | [1] | PIPE ASSY-B |
| K30. | Y171-019004 | [2] | O-RING |
| 31 | S107-100454 | [8] | BOLT-SOCKET |
| 31 | S107-100456 | [8] | BOLT-SOCKET |
| K. | 31Y1-35030 | [1] | SEAL KIT |
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
8. The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.
Product Show:
|
|
