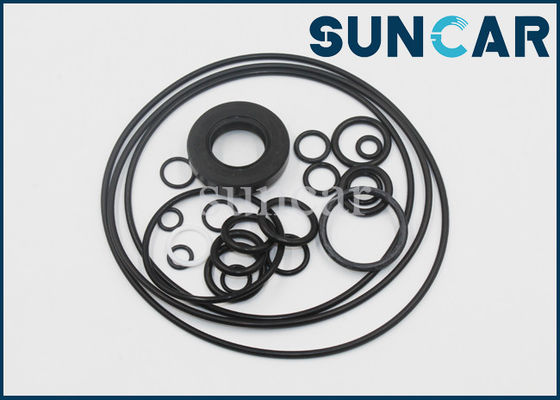

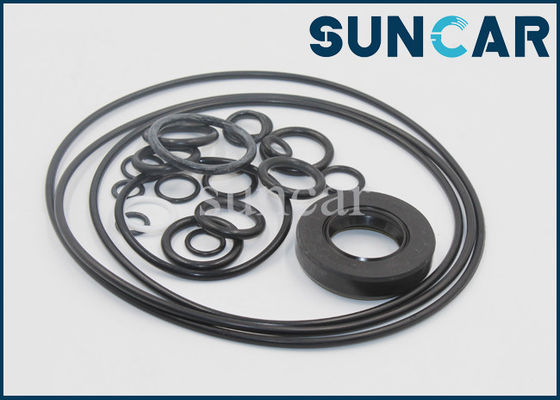

Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number 708-7T-00470KT
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1000 set per week
Product Details
Part Number 708-7T-00470KT Application Construction Works, Machinery Repair Shops
Conditions 100% New Type Swing Motor Repair Kit
Color Black Compatible Equipment Komatsu Excavator
Leave a Message
Product Description

Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit



Product Name Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit
Part No. Kom- 708-7T-00470KT
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Hardness 70-90 Shore A
Color BlackWhite or other (as your request)
Size Standard Size
MOQ We accept trial order
Packing PP bag inside, carton box outside( According to your requirements)
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
Application Excavator Systerm
Condition 100% Brand New





PC60-7 Excavator Swing Motor Relation Parts:

Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit 0

Pos. Part No Parts name QTY Serial Number
  708-7T-00470 MOTOR ASS'Y 1 SN: 59571-UP
  708-7T-00360 MOTOR ASS'Y 1 SN: 52374-59570
  708-7T-00240 MOTOR ASS'Y 1 SN: 45001-52373
  708-7T-01210 • MOTOR SUB ASS'Y 1 SN: 59571-UP
  708-7T-01040 • MOTOR SUB ASS'Y 1 SN: 45001-59570
1 708-7T-11240 •• CASE,MOTOR 1 SN: 45001-UP
2 708-7T-11670 •• COVER,END 1 SN: 59571-UP
  708-7T-11640 •• COVER,END 1 SN: 45001-59570
2A 706-73-72420 •• VALVE 2 SN: 59571-UP
2B 706-73-72440 •• SPRING 2 SN: 59571-UP
2C 706-73-72430 •• PLUG 2 SN: 59571-UP
2D 07002-12434 •• O-RING 2 SN: 59571-UP
3 708-7T-51210 •• O-RING 1 SN: 45001-UP
4 720-68-19610 •• PIN 2 SN: 45001-UP
5 01010-81250 •• BOLT 4 SN: 45001-UP
6 708-7T-12420 •• SHAFT 1 SN: 59571-UP
  708-7T-12220 •• SHAFT 1 SN: 45001-59570
7 708-7T-12240 •• BEARING 1 SN: 45001-UP
8 708-7T-12250 •• BEARING 1 SN: 45001-UP
9 708-7T-05020 •• SPACER KIT 1 SN: 45001-UP
10 708-7T-12230 •• SEAL,OIL 1 SN: 45001-UP
11 04065-04518 •• RING,SNAP 1 SN: 45001-UP
12 708-7T-13140 •• BLOCK,CYLINDER 1 SN: 45001-UP
13 708-7T-13290 •• PLATE,VALVE 1 SN: 59571-UP
  708-7T-13261 •• PLATE,VALVE 1 SN: 45001-59570
14 720-68-19610 •• PIN 1 SN: 45001-UP
15 708-7T-13540 •• PIN 3 SN: 45001-UP
16 708-7T-13530 •• WASHER 2 SN: 45001-UP
17 708-7T-13570 •• SPRING 1 SN: 45001-UP
18 04065-03815 •• RING 1 SN: 45001-UP
19 708-7T-13510 •• GUIDE,RETAINER 1 SN: 45001-UP
20 708-7T-13342 •• RETAINER,SHOE 1 SN: 45001-UP
21 708-7T-13352 •• PISTON SUB ASS'Y 7 SN: 59571-UP
  708-7T-13611 •• PISTON SUB ASS'Y 7 SN: 45001-59570
22 708-7T-53420 •• PLATE,THRUST 1 SN: 59571-UP
  708-7T-13421 •• PLATE,THRUST 1 SN: 45001-59570
23 708-7T-13710 •• SPACER 1 SN: 45001-UP
24 708-7T-52512 •• PLATE 3 SN: 45001-UP
25 708-7T-15120 •• DISC 2 SN: 45001-UP
26 708-7T-15140 •• PISTON,BRAKE 1 SN: 45001-UP
27 07000-12130 •• O-RING 1 SN: 45001-UP
28 708-7T-55220 •• O-RING 1 SN: 45001-UP
29 708-7T-15150 •• SPRING 4 SN: 45001-UP



Advantages:
1.Excellent performance of sliding ,no crawling effect
2.Good dynamic and static sealing
3.High abrasion,long service life
4.Wide using temperature range,high chemical stability(It depends on the material of O-ring)
5.Simple and convenient installation O-Rings: NBR



If you unsure whether this is correct for your machine, please contact us. This product is available to ship worldwide
We have professional product design capability. We develop the most competitive products in the market to our customers for choices.
We will provide professional and efficient service, any questions about product service, please contact us directly, we will reply you within 24 hours.



Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit 1
