Motor Assy 706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Certification | ISO9001 |
Model Number | 706-77-10103 KOMATSU PC300-3 PC400-3 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
Supply Ability | 1000 set per week |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Part Number | 706-77-10103 | Conditions | 100% Brand New |
---|---|---|---|
Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) | Type | Excavator Spare Parts |
Warranty | Unavailable | Color | Customer's Requirement |
High Light | 706-77-10103 Swing Motor Sealing Kit,Swing Motor Seal Kit |
Product Description

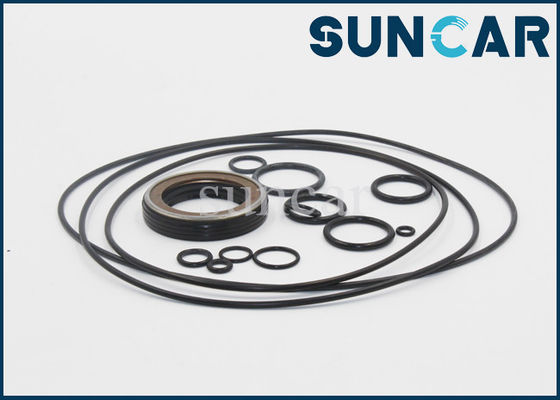

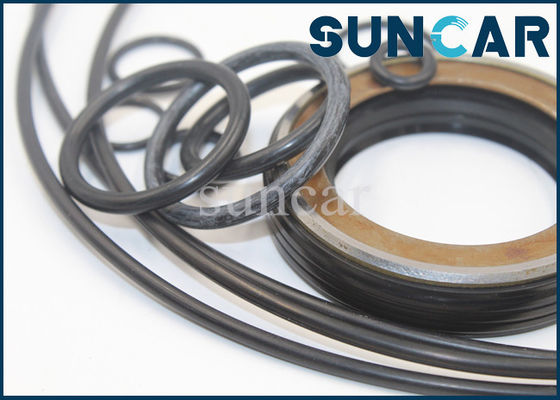

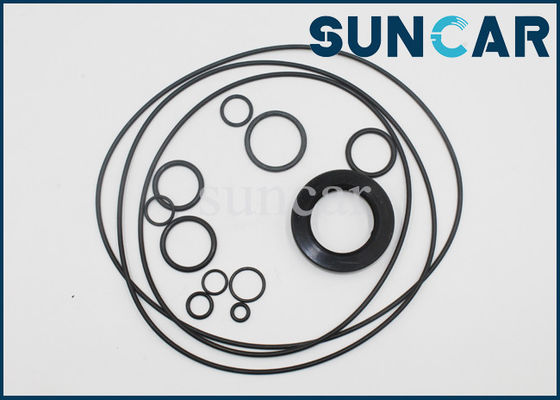

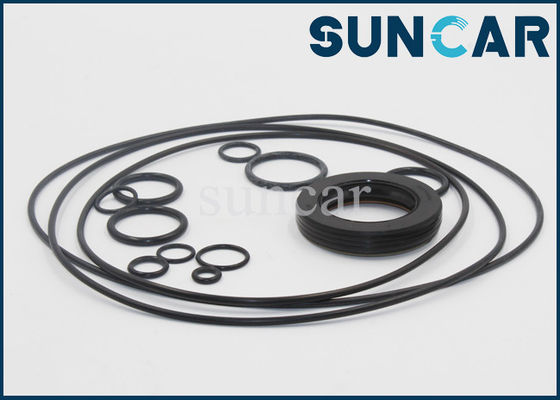

Motor Assy 706-77-10103 Swing Motor Seal Kit For Komatsu PC300-3 PC400-3 Excavator
Product Name | Swing Motor Seal Kit |
Part No. | Kom- 706-77-10103KT |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
Hardness | 70-90 Shore A |
Color | Black,White or other |
Size | Standard Size |
MOQ | We accept trial order |
Packing | PP bag inside, carton box outside( According to your requirements) |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
Port | HUAGNPU,China (Mainland) |
Express | Fedex,TNT,UPS,DHL |
Customized | OEM & ODM are welcomed |
Application | Excavator Inner Systerm |
Condition | New |
Products Show:
Our Advantage:
- Experienced sealing products supplier.
- Professional design team and sales department for your service.
- All the questions will be dealt in 24 hours.
- Stable quality---coming from good materials.
- Lower price---Not cheapest but the lowest at the same quality.
- Good service---satisfied service before and after sale.
- Your inquiry will be replied in one working day.
Komatsu PC300-3 Swing Motor Relation Parts:
Pos. | Part No | Parts name | QTY |
706-77-10103 | MOTOR ASSEMBLY | 1 | |
1 | 706-87-42190 | • BLOCK,CYLINDER | 1 |
2 | 706-77-42160 | • PISTON SUB ASSEMBLY | 7 |
3 | 706-77-42081 | • SHAFT,CENTER | 1 |
4 | 706-77-42110 | • SPRING | 1 |
5 | 706-77-43130 | • RING,CENTER | 1 |
6 | 706-77-42071 | • BUSHING | 1 |
7 | 706-77-42830 | • PLATE,VALVE | 1 |
7 | 706-77-42851 | • PLATE,VALVE | 1 |
8 | 04020-01024 | • PIN,DOWEL | 1 |
9 | 706-77-42260 | • RETAINER | 1 |
10 | 706-77-42861 | • SHAFT,DRIVE | 1 |
10 | 706-77-42860 | • SHAFT,DRIVE | 1 |
11 | 706-75-41271 | • SCREW | 7 |
12 | 706-77-42022 | • CASE,BRAKE | 1 |
12 | 706-77-42021 | • CASE,BRAKE | 1 |
13 | 706-77-42881 | • BEARING | 1 |
13 | 706-77-42880 | • BEARING | 1 |
14 | 706-77-42890 | • BEARING | 1 |
15 | 706-77-42041 | • SEAT | 1 |
15 | 706-77-42040 | • SEAT | 1 |
16 | 706-77-42051 | • SPRING | 2 |
16 | 706-77-42050 | • SPRING | 2 |
17 | 706-77-05010 | • SPACER KIT | 1 |
17 | 706-77-42030 | • SPACER | 1 |
18 | 04064-06525 | • RING,SNAP | 1 |
19 | 706-77-42060 | • COVER | 1 |
20 | 07000-02115 | • O-RING | 1 |
21 | 706-77-42920 | • SEAL,OIL | 1 |
22 | 04071-00130 | • RING,SNAP | 1 |
23 | 706-77-91331 | • PLATE | 1 |
24 | 706-77-91341 | • PLATE | 4 |
25 | 706-77-91350 | • DISC | 4 |
26 | 706-77-91490 | • PISTON,BRAKE | 1 |
26 | 706-77-91390 | • PISTON,BRAKE | 1 |
27 | 07000-15200 | • O-RING | 1 |
28 | 07001-05200 | • RING,BACK-UP | 1 |
29 | 07000-15220 | • O-RING | 1 |
30 | 07001-05220 | • RING,BACK-UP | 1 |
31 | 07000-05250 | • O-RING | 1 |
32 | 706-77-91410 | • SPRING | 2 |
33 | 706-75-42830 | • PIN,DOWEL | 1 |
34 | 01010-51860 | • BOLT | 8 |
35 | 01602-21852 | • WASHER,SPRING | 8 |
1 | 706-77-72112 | • HOUSING | 1 |
2 | 706-77-72130 | • VALVE | 2 |
3 | 706-77-72140 | • SPRING | 2 |
4 | 706-77-72150 | • PLUG | 2 |
5 | 07002-14234 | • O-RING | 2 |
6 | 706-77-72170 | • PLUG | 7 |
7 | 07002-12434 | • O-RING | 7 |
8 | •• SLEEVE | 1 | |
9 | •• VALVE | 1 | |
10 | •• PISTON | 1 | |
11 | •• SPRING | 1 | |
12 | •• O-RING | 1 | |
13 | •• RING,BACK-UP | 1 | |
14 | •• PLUG | 1 | |
15 | •• SCREW | 1 | |
16 | •• NUT | 1 | |
17 | •• SEAT,VALVE | 1 | |
18 | 07000-23022 | •• O-RING | 1 |
19 | 07001-03022 | •• RING,BACK-UP | 2 |
20 | 07002-13634 | •• O-RING | 1 |
