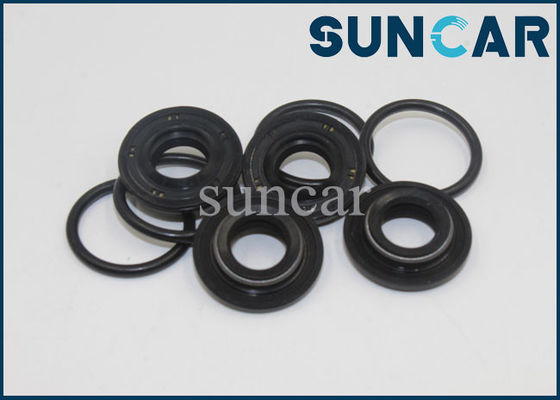

PC100-6 PC120-6 Excavator Seal Kit 702-16-01541 Pilot Valve Seal Repair Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 702-16-01541 KOMATSU PC100-6, PC100L-6, PC120-6, PC120SC-6, PC128US-2, PC128UU-2, PC130-6, PC138US-2, PC200-6
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P,Paypal
Supply Ability 3000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pilot Valve Seal Repair Kit Part Number 702-16-01541
Color As Shwon Condition 100% New
Size Standard Size Applicable Industries Building Material Shops, Machinery Repair Shops, Construction Works, Other
High Light

PC100-6 Excavator Seal Kit

,

702-16-01541 Seal Repair Kit

,

Control Valve Seal Kit

Leave a Message
Product Description



PC100-6 PC120-6 Excavator Seal Kit 702-16-01541 Pilot Valve Seal Repair Kit



Product Name Pilot Valve Seal Repair Kit
Model Number KOMATSU PC100-6, PC100L-6, PC120-6, PC120SC-6, PC128US-2, PC128UU-2, PC130-6, PC138US-2, PC200-6
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number 702-16-01541
Sample/Stock Available
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Size Standard size
Applicable Industries Building material shops, machinery repair shops, construction works, other
CertifiC.A.Tion ISO9001
Condition 100% New
AppliC.A.Tion Excavators PPC valve for travel
Warranty Unavailable
Color As shwon
MOQ Trial order acceptable



Product Technical Drawing:





Our Service:

  • SpecifiC.A.Tions:

(1) Factory direct, quality ensured, lower price.

(2) Fast delivery time.

  • Characteristics:

(1) Better reliability and longer life.

(2) Updated product design.

(3) Ensure the products quality.

  • Advantage:

(1) Longer duration,higher quality.

(2) Lower maintenance cost.

(3) Enhancing the international quality.

(4) Exceeding value with the local price.

(5) More reliable performance.



Related Part:

PC100-6 PC120-6 Excavator Seal Kit 702-16-01541 Pilot Valve Seal Repair Kit 0

Pos. Part No Qty Parts name
  702-16-01542 [1] PILOT VALVE
  702-16-01541 [1] PILOT VALVE
  702-16-01540 [1] PILOT VALVE
3 702-16-51140 [4] SHIM
4 702-16-53420 [4] SPRING
5 702-16-53140 [4] RETAINER
6 702-16-54420 [4] SPRING
7 702-16-53170 [4] PISTON
8 702-16-51270 [4] SEAL
9 07000-12020 [4] O-RING
10 702-16-54170 [4] COLLAR
11 702-16-54311 [1] CASE
11 702-16-54310 [1] CASE
15 01010-80855 [2] BOLT
16 01643-30823 [2] WASHER
17 01010-80816 [4] BOLT
18 04025-00432 [2] PIN,SPRING
19 702-16-54430 [4] BUSHING
20 702-16-54331 [4] WASHER
20 702-16-54341 [4] WASHER
20 702-16-54351 [4] WASHER
21 702-16-54280 [2] SEAL,DUST
22 702-16-54506 [1] DAMPER ASSEMBLY
22 702-16-54505 [1] DAMPER ASSEMBLY
22 702-16-54503 [1] DAMPER ASSEMBLY
23 01252-60525 [4] BOLT
24 702-16-54511 [2] PLATE
25 04025-00420 [2] PIN,SPRING
27 01224-40612 [2] SCREW
30 07040-11209 [3] PLUG
31 07002-11223 [3] O-RING
32 700-84-11730 [3] BALL
33 702-16-55940 [3] PLUG
34 702-16-55950 [3] SEAT
35 04022-04016 [2] PIN,DOWEL
36 04022-04010 [2] PIN,DOWEL



The pictures are for reference only and the physical drawings shall prevail. If you have any questions, please contact our technical support team.
