991/20021 Universal Hydraulic Sealing Kit Replacement For JCB 40MM Rod x 70MM CYL
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | JCB 214e/3CX |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 1500 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 991/20021 | Product Name | JCB Cylinder Seal Kit |
|---|---|---|---|
| Size | Standard Size | Condition | 100% New |
| Rod | 40MM | Cyl | 70MM |
| High Light | JCB Seal Kit,Hydraulic Sealing Kit,Hydraulic Cylinder Seal Kit |
||
Product Description
991/20021 Universal Hydraulic Sealing Kit Replacement For JCB 40MM Rod x 70MM CYL
| Product Name | JCB Cylinder Seal Kit |
| Model Number | JCB 214e/3CX |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 991/20021 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% new |
| C.A.Tegory | Seal/ seal kit |
| Warranty | Unavailable |
| OEM and ODM | Welcome |
| Rod | 40MM |
| Cyl | 70MM |
| Advantage | Long service life and low price |
| Preservation Notice | Closed, dry and avoid the sun |
Product Detail:

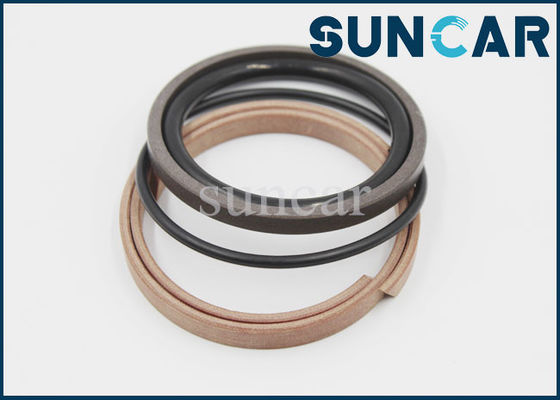

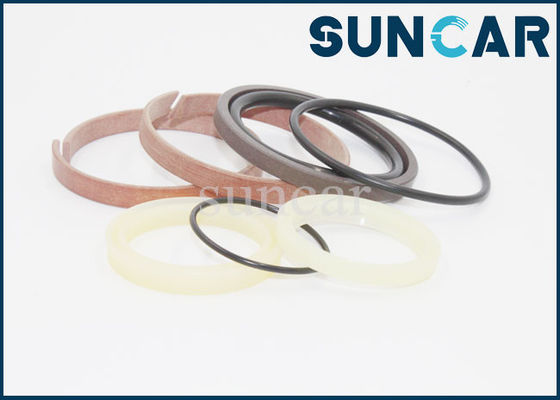

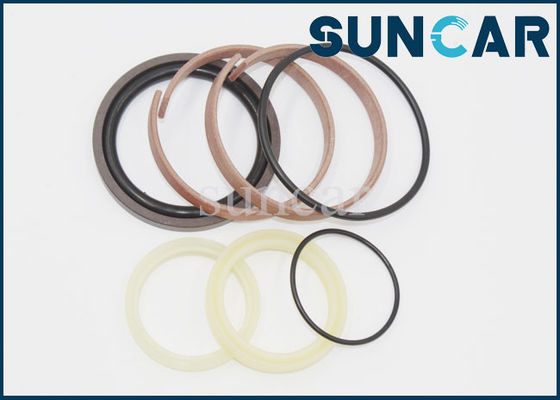

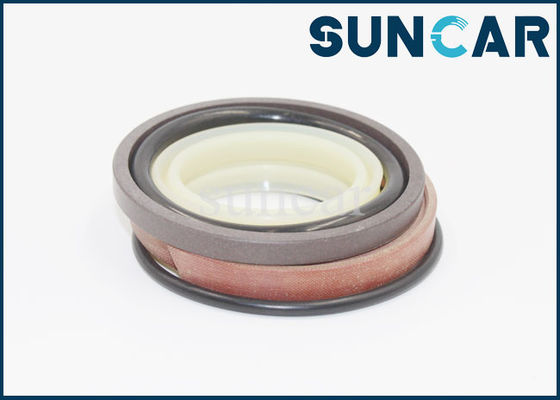

This item is a brand new hydraulic cylinder seal kit. Matches OEM kit, all parts and seals are included.
| Number | Part Number | QTY. | Product Name |
| A | 556/60478 | [1] | Ram assembly tilt, adjustable |
| 1 | 332/D4842 | [1] | Kit - end cap assembly |
| 2 | 590/50186 | [1] | Rod piston |
| 3 | 595/10027 | [1] | Head piston |
| 4 | 826/01182 | [1] | Dowel |
| 7 | 556/70476 | [1] | Cylinder |
| 7A | 1207/0019 | [1] | Bush spring |
| 12 | 1450/0001 | [3] | Nipple grease, straight 1/8 BSP |
| 13 | 592/00016 | [1] | Pivot eye end |
| 14 | 826/01158 | [1] | Nut (M35 x 1.5 50AF) |
| 15 | 1207/0011 [1] | Bush spring | |
| 50 | 991/20021 | [1] | Kit-seal universal 70X40 |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
