203-60-56701KT Travel Motor Seal Kit PC100-5 120-5 Excavator Repair Kits
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Certification | ISO9001 |
| Model Number | 203-60-56701KT |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal |
| Supply Ability | 3500 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 203-60-56701KT | Product Name | Travel Motor Seal Kit |
|---|---|---|---|
| Model | Komatsu PC100-5，PC120-5，PC120-6，PC130-5 | Category | Seal Kits, Seal |
| Type | Excavator Spare Parts | Warranty | Unavailable |
| Application | Excavator,Construction Machinery | Color | Customer's Request |
| High Light | 203-60-56701KT Seal Kit,203-60-56701KT Motor Seal,120-5 Excavator Repair Kits |
||
Product Description

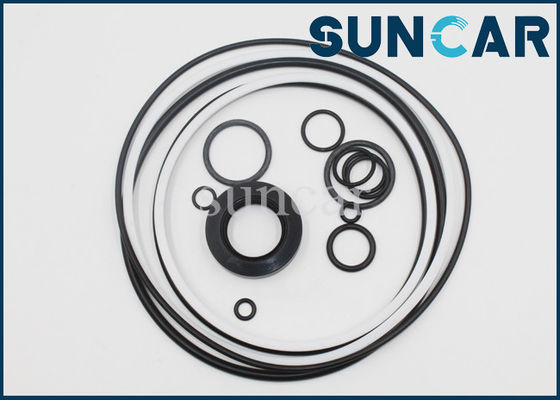

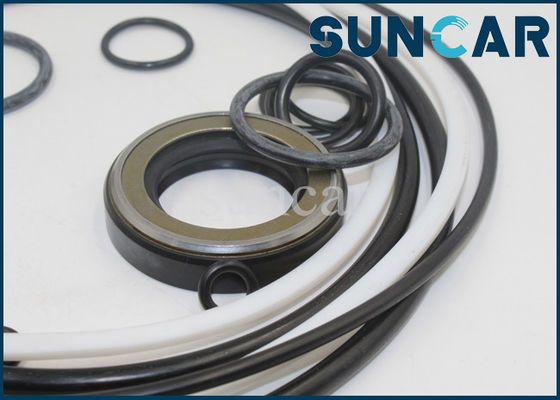

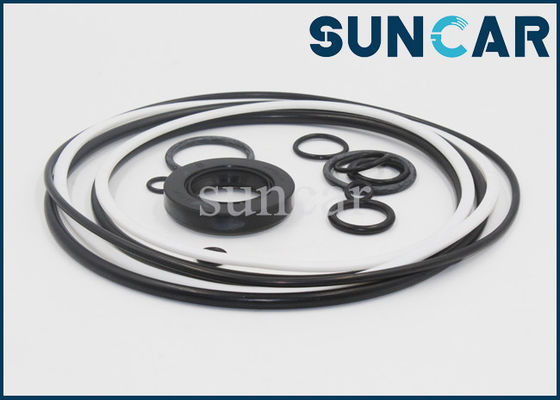

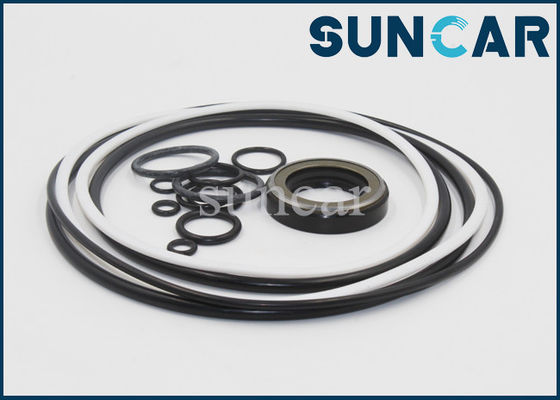

203-60-56701KT Komatsu Travel Motor Seal Kit PC100-5 120-5 Excavator Repair Kit
| Model Number | Komatsu PC100-5,PC120-5,PC120-6,PC130-5 |
| Product name | 203-60-56701KT Komatsu Travel Motor Seal Kit PC100-5 120-5 Excavator Repair Kit |
| Feature | High pressure resistance, durability, corrosion resistance |
| Packing | PP bag inside, carton box outside |
| Material | PU, Rubber, PTFE, NBR, HNBR |
| MOQ | Trial order accepted |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Certification | ISO9001 |
| Loading Port | HUAGNPU, China (Mainland) |
| Size | Standard size |
| Brand name | SUNCAR |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Application | Komatsu excavator cylinder seal kit |
| Price | Negotiable |
| Market | Middle East/ South America/ Europe/ North America, etc |
| Part No. | 203-60-56701KT |
Service:
1. Warranty time: 1 month at least on the base of right using
2. Neutral packing or your desired packing
3. High quality, 100% factory tested before delivery
4. Competitive prices and timely delivery
5. Sample order accepted
6. Good after-sales service
7. Continue to develop new products all the time
Komatsu PC130-5 Travel Motor Relation Replacement:
| Pos. | Part No | Parts name | Qty |
| 203-60-56701 | TRAVEL MOTOR ASS'Y | 2 | |
| 1 | TZ203B210101-A | FLANGE KIT,REAR | 1 |
| 2 | TZMB700-070 | PLUG | 5 |
| 3 | TZGM1-4 | PLUG | 2 |
| 4 | TZGM1-8 | PLUG | 2 |
| 5 | TZMB700-050 | PLUG | 4 |
| 6 | TZ850A0006-00 | PLATE¤ NAME | 1 |
| 7 | 04260-00793 | BALL | 2 |
| 8 | TZ210A7105-00 | PISTON KIT (9 PIECES) | 1 |
| 9 | TZ200B2004-00 | BLOCK,CYLINDER | 1 |
| 10 | TZ200B200301-C | PLATE,SWASH | 1 |
| 11 | TZ200B2032-01 | PLATE | 1 |
| 12 | TZ200B2007-01 | PLATE | 1 |
| 13 | TZ200B2008-00 | BOWL,THRUST | 1 |
| 14 | TZJB150635-328 | PIN | 3 |
| 15 | TZ150A2010-00 | WASHER | 2 |
| 16 | TZ430F2028-00 | SPRING | 1 |
| 17 | TZIRTW-55 | RING,SNAP | 1 |
| 18 | TZ200B2170-01 | PISTON | 1 |
| 19 | TZ200B2074-00 | PLATE | 1 |
| 20 | TZ200A2015-00 | DISC | 2 |
| 21 | TZ100A2016-00 | PLATE | 2 |
| 22 | TZ231F2012-00 | PISTON | 1 |
| 23 | TZ100A2013-00 | SPRING | 10 |
| 24 | 07000-15145 | O-RING (K1) | 1 |
| 25 | TZ231F2023-00 | RING,BACK-UP (K1) | 1 |
| 26 | 07000-15170 | O-RING (K1) | 1 |
| 27 | TZSUN-2BG170 | RING,BACK-UP (K1) | 1 |
| 28 | TZ200B2002-01 | SHAFT | 1 |
| 29 | TZJB1501-26 | BALL | 2 |
| 30 | 06000-06207 | BEARING | 1 |
| 31 | TZTCN-32-52-11 | SEAL,OIL (K1) | 1 |
| 32 | TZ210A2009-00 | PLATE,TIMING | 1 |
| 33 | TZJB1354-5-12 | PIN | 2 |
| 34 | 06000-06204 | BEARING | 1 |
| 35 | TZ430F2019-00 | VALVE | 1 |
| 36 | TZ100A2020-00 | SPRING | 1 |
| 37 | 07000-11009 | O-RING (K1) | 1 |
| 38 | TZ100A2018-00 | SEAT,VALVE | 1 |
| 39 | TZ100A2022-00 | RING | 1 |
| 40 | TZ200B2073-00 | VALVE | 1 |
| 41 | TZ300B2043-01 | SPRING | 1 |
| 42 | TZ300B2039-00 | STOPPER | 1 |
| 43 | TZ300B2042-00 | RING | 1 |
| 44 | TZ200B2085-00 | SPRING | 1 |
Products show:
1. Professional Engineers
Give Us Size, Give You products". Engineers here with rich experience. Our engineers have deal with this line for more than 15 years.
2. Sale & Service Team
24 Hours Online, Best service here for you anytime. Any question, please free contact us.
3. Factory & Warehouse
Focus On Quality Assurance.Keep The Enough Stock.
4. Shipping
Most of our products have in stock, we can ship out your order in the shortest time.
5. About the Quality
We can offer the material report and test report. If the product was broken in quality guarantee period, we can ship new one to you.
