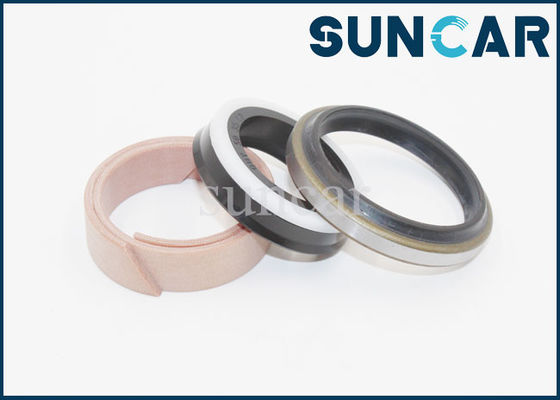

D30AM-17 Komatsu 113-30-34130 Adjuster Sealing Kit Dozer Track Cylinder Seal Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number 113-30-34130 Komatsu D30AM-17, D31A-16, D31E-17
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Product Name Track Adjuster Seal Kit Part Number 113-30-34130
Size Standard Size Shipping Mode By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.)
Applicable Industries Construction Works, Machinery Repair Shops, Retail, Other Application Bulldozer
High Light

113-30-34130 Adjuster Sealing Kit

,

D30AM-17 Adjuster Sealing Kit

,

Komatsu Adjuster Sealing Kit

Leave a Message
Product Description



D30AM-17 Komatsu 113-30-34130 Adjuster Sealing Kit Dozer Track Cylinder Seal Kit



Product Name Track Adjuster Seal Kit
Model Number

Komatsu D30AM-17, D31A-16, D31E-17, D31P-16,

D31PL-16, D31PLL-18, D31Q-16, D31S-16

Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number 113-30-34130
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Size Standard size
Applicable Industries Construction works, machinery repair shops, retail, other
Certification ISO9001
Condition 100% new
Category Seal kits, seal
Warranty Unavailable
OEM and ODM Welcome
Feature Oil & high pressure & high temperature resistant
Preservation Notice Closed, dry and avoid the sun
Application Bulldozer



Parts On Group:

D30AM-17 Komatsu 113-30-34130 Adjuster Sealing Kit Dozer Track Cylinder Seal Kit 0



Pos. Part No Qty Parts name
1 113-30-34110 [1] BRACKET,L.H.
  113-30-34120 [1] BRACKET,R.H.
2 113-30-34230 [1] CYLINDER,L.H.
  113-30-34130 [1] CYLINDER,L.H.
  113-30-34240 [1] CYLINDER,R.H.
  113-30-34140 [1] CYLINDER,R.H.
3 113-30-34210 [2] SPRING
  113-30-24130 [2] SPRING
4 113-30-24161 [2] PISTON
5 113-30-34170 [2] BAR
6 09370-00050 [2] U-PACKING
7 04064-03515 [2] RING
8 07155-00515 [4] RING
9 113-30-34150 [2] YOKE ASS'Y
10 113-30-34160 [1] ROD
11 07177-05030 [2] BUSHING
12 113-30-24240 [2] SEAL
13 113-30-24250 [2] SPACER
14 04065-06220 [2] RING
15 113-30-34190 [2] PLATE
16 01010-31645 [8] BOLT
17 01643-31645 [8] WASHER
20 113-30-24140 [2] PLATE
21 07959-20001 [2] VALVE
  07959-20000 [2] VALVE
22 01010-31020 [4] BOLT
23 01602-01030 [4] WASHER
24 01010-31640 [12] BOLT
26 04020-01638 [4] PIN



Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.



Welcome to contact us, we can provide the high quality and best price!

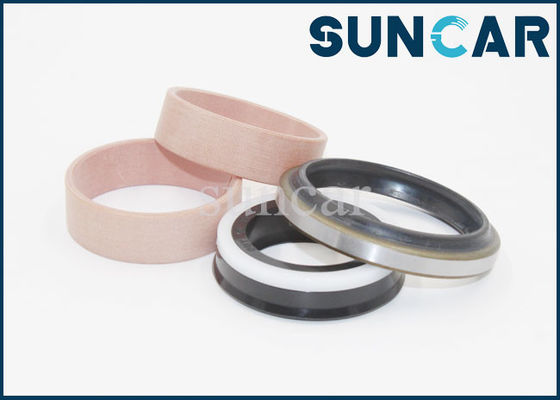

D30AM-17 Komatsu 113-30-34130 Adjuster Sealing Kit Dozer Track Cylinder Seal Kit 1

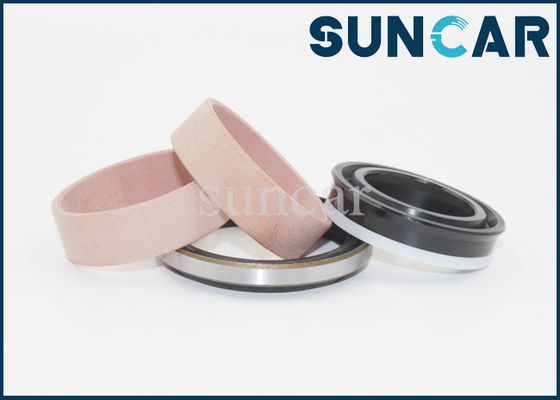

D30AM-17 Komatsu 113-30-34130 Adjuster Sealing Kit Dozer Track Cylinder Seal Kit 2
