Kobelco SK200-5 Excavator Motor Repair Kit YN23V00001F1 Seal Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number YN23V00001F1,Kobelco SK200-5
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 1300 set per week
Product Details
Feature Oil & High Pressure & High Temperature Resistant Condition 100% Brand New
Applicable Industries Construction Works, Machinery Repair Shops, Retail, Other Type Excavator Spare Parts
Stock In Stock Size Standard Size
High Light

YN23V00001F1 Motor Repair Kit

,

Kobelco YN23V00001F1

,

YN23V00001F1 Seal Kit

Leave a Message
Product Description



Kobelco SK200-5 Excavator Travel Motor YN23V00001F1 Seal Kit Model Inner Repair Kit



Product Name Kobelco SK200-5 Excavator Travel Motor YN23V00001F1 Seal Kit Model Inner Repair Kit
Part Number YN23V00001F1
Model Number SK200-5
Warranty Unavailable
Place of Origin Guangdong, China
Applicable Industries Construction works
Brand name SUNCAR
Standard Standard size
Payment Terms Western Union, L/C, T/T, Money Gram
Market South America, North America, Europe, Asia, Middle East, etc
Certification ISO9001
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Application Excavator seal kit, excavator construction machinery
Packing PP bag inside, carton box outside

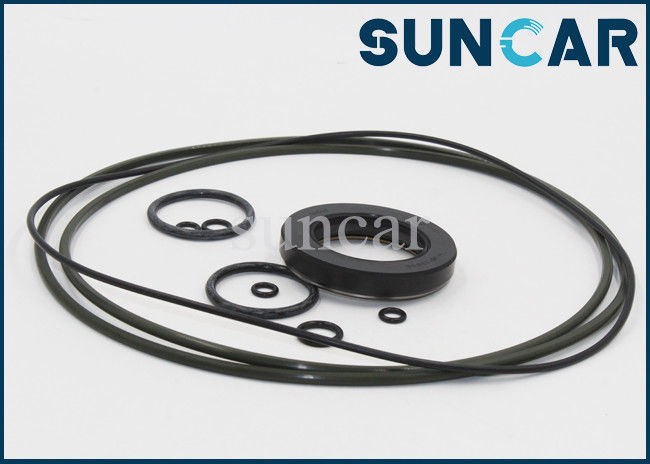

Kobelco SK200-5 Excavator Motor Repair Kit YN23V00001F1 Seal Kit 0

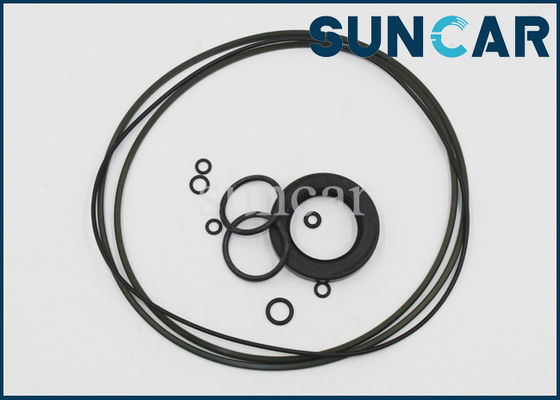

Kobelco SK200-5 Excavator Motor Repair Kit YN23V00001F1 Seal Kit 1




Related Parts:

Pos. Part No Qty Parts name
  2441U1054F1 [1] HYDRAULIC MOTOR
  LQ15V00004R100 [1] REPAIR KIT
1 LQ15V00004S001 [1] CASE
2 LQ15V00004S002 [1] COVER
3 LQ15V00004S003 [1] CYLINDER
4 LQ15V00004S004 [1] SHOE
5 LQ15V00004S005 [4] PLATE
6 YN15V00003S006 [1] PISTON
7 2441U783S7 [5] STEP PLATE
8 LQ15V00004S008 [1] PLATE
9 LQ15V00004S009 [1] SHAFT
10 YN15V00003S010 [1] COUPLING
11 2441U1054S011 [1] PLATE
12 LQ15V00004S012 [1] BALL JOINT
13 2441U1054S013 [1] HOLDER
14 LQ15V00004S014 [9] PISTON ASSY
15 YN15V00003S015 [1] O-RING
16 YN15V00003S016 [1] O-RING
17 2441U783S20 [3] CHECK VALVE
18 ZR26X06200 [1] SNAP RING
19 ZR26X08000 [1] SNAP RING
20 ZR16X04000 [1] RING
21 LQ15V00004S021 [1] PISTON
22 LQ15V00004S022 [1] BALL
23 LQ15V00004S023 [2] PLATE
24 YN15V00003S024 [1] SEAL
25 2436U1123S14 [1] ORIFICE
26 2436U812S4 [1] PLUG
27 YN15V00003S027 [1] GASKET
28 2441U783S30 [3] SPRING
29 LQ15V00004S029 [9] SPRING
30 YN15V00003S030 [11] SPRING
31 GB15V00003S029 [1] BEARING
32 LQ15V00004S032 [1] NEEDLE BEARING
33 ZS23C16045 [8] CAP,Hex Socket Head, M16 x 45mm
34 ZP26D10022 [1] PIN
35 LQ15V00004S035 [1] O-RING
36 ZD12P00600 [3] O-RING
37 ZD12P00800 [2] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
38 ZD12P00900 [3] O-RING
39 YN15V00003S039 [1] O-RING
40 YN22V00013F1 [2] VALVE
41 2436R874F1 [1] VALVE
42 YN23V00001F1 [1] BRAKE VALVE
43 ZR26X03200 [1] SNAP RING

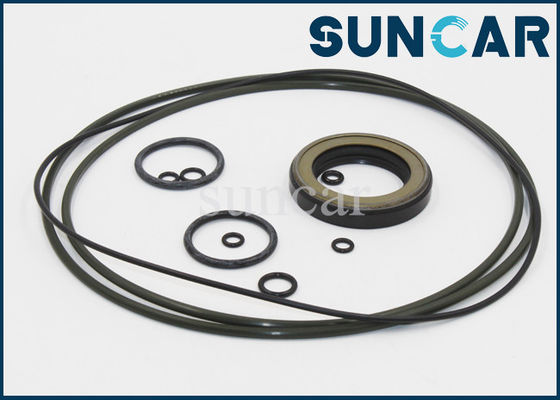

Kobelco SK200-5 Excavator Motor Repair Kit YN23V00001F1 Seal Kit 2




FAQ:
Q: When will ship my order?
A:Once we get confirmation of payment, we will try our best to ship order within 24 hours.

Q: Which shipping term you can supply?
A:By sea, air or by express ( DHL, FedEx, TNT, UPS, EMS)

Q: How long does it take to my address?
A:The Normal delivery time is 3-5 days, depending on which country you are in.

Q: How can I trace my order?
A:We will send you the tracking number by email.

Q: If I am not satisfied with the products, can I returns goods?
A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.
