YN15V00037R450 Travel Motor Seal Kit SK200-8 Hydraulic Motor Repair Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number YN15V00037R450,Kobelco SK200-8
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 1200 set per week
Product Details
Applicable Industries Construction Works, Machinery Repair Shops, Retail, Other Category Seal Kits, Seal
Part Number YN15V00037R450 Application Hydraulic Travel Motor Excavator
Feature Oil & High Pressure & High Temperature Resistant Material High Quality
High Light

YN15V00037R450

,

SK200-8 YN15V00037R450

,

YN15V00037R450 Motor Seal Kit

Leave a Message
Product Description

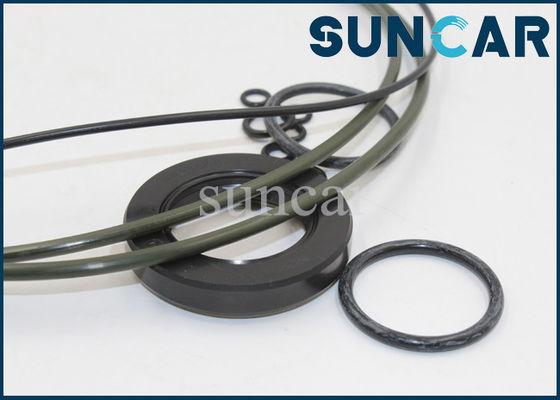

YN15V00037R450 Kobelco Excavator Travel Motor Seal Kit SK200-8 Hydraulic Motor Inner Repair Kit



Product Information YN15V00037R450 Kobelco Excavator Travel Motor Seal Kit SK200-8 Hydraulic Motor Inner Repair Kit
Material PU,Rubber,NBR,PTFE,NYLON
Marketing Type Ordinary product
Colors Black, white(customer request)
Style Construction Equipment repair spare parts
Application Excavator travel motor assy
Hardness 70 - 90 shores A
Warranty time unavailable
Certification ISO9001
Price Negotiation
MOQ 1 sets
Delivery Time Within 3-5 days after contract established
Package PP bag inside, carton box outside
Payment Term (1) T/T, 30% in deposit, balance on the receipt of copy of B/L
(2) L/C, Irrevocable letter of credit at sight.
Business Scope Bulldozer & excavator &wheel loader & backhoe & graders parts


Related Parts:

YN15V00037R450 Travel Motor Seal Kit SK200-8 Hydraulic Motor Repair Kit 0

Pos. Part No Qty Parts name
. . YN15V00037F1 [1] HYDRAULIC MOTOR
. . YN15V00037F2 [1] HYDRAULIC MOTOR
. . YN15V00037F2R [1] REMAN-HYD MOTOR
. . YN15V00037F2C [1] CORE-MOTOR HYDRAULIC
1 YN15V00037S001 [1] HUB
3 YN15V00037S003 [1] FLANGE
4 YN15V00037S004 [1] GEAR
5 YN15V00037S005 [3] GEAR
6 YN15V00037S006 [3] PIN
7 YN15V00037S007 [1] GEAR
8 YN15V00037S008 [1] GEAR
9 YN15V00037S009 [3] GEAR
10 YN15V00037S010 [3] PIN
11 YN15V00037S011 [6] WASHER
12 YN15V00037S012 [6] WASHER
13 YN15V00037S013 [1] PLATE
14 YN15V00037S014 [1] COVER
15 YN15V00037S015 [1] COUPLING
16 YN15V00037S016 [3] PIN
17 YN15V00037S017 [3] PIN
22 YN15V00037S022 [2] LOCK WASHER
23 YN15V00037S023 [1] SHIM
24 YN15V00037S024 [2] BALL BEARING
27 YN15V00037S027 [3] ROLLER BEARING
28 YN15V00037S028 [3] ROLLER BEARING
29 YN15V00037S029 [1] SEAL
30 2441U995S121 [3] PLUG
31 ZD12P01800 [3] O-RING
35 ZS23C10035 [18] SCREW,Hex Socket Head, M10 x 35mm
36 ZR26X03200 [1] SNAP RING
101 YN15V00037S101 [1] MANDREL
102 YN15V00037S102 [1] SHAFT
104 YN15V00037S104 [1] CYLINDER
107 YN15V00037S107 [1] PLATE
. . YN15V00037S098 [1] PLATE
108 YN15V00037S108 [1] BALL
. . YN15V00037S099 [1] BALL
109 YN15V00037S109 [1] PLATE
112 YN15V00037S112 [1] PISTON
113 YN15V00037S113 [8] SPRING
114 YN15V00037S114 [9] SPRING
115 YN15V00037S115 [3] PLATE
116 YN15V00037S116 [4] PLATE
119 YN15V00037S119 [1] SHIM
132 YN15V00009S027 [1] OIL SEAL
133 YN15V00009S019 [1] RING
135 YN15V00037S135 [1] RING
137 2436U279S3 [1] PLUG
138 2436U1749S17 [1] PLUG
139 YN15V00037S139 [1] RING
149 YN15V00037S149 [1] ROLLER BEARING
150 YN15V00037S150 [1] ROLLER BEARING
162 YN15V00037S162 [1] BALL
200 YN22V00036F1 [2] VALVE
301 YN15V00037S301 [1] FLANGE
324 YN15V00037S324 [2] PLUG
325 YN15V00037S325 [2] SEAT
329 YN15V00037S329 [2] O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
330 YN15V00037S330 [2] SPRING
341 YN15V00017S033 [1] PIN
343 ZS23C16040 [8] CAPSCREW,Hex Socket Head, M16 x 40mm
345 2436U1427S25 [15] PLUG
363 YN15V00037S363 [1] SPOOL
364 2436R874S3 [1] FLEXIBLE JOINT
365 2436R874S6 [1] PIN
366 2436R874S7 [1] SPRING
367 2436R874S5 [1] SPRING SEAT
368 2436U1317S13 [2] PLUG
369 ZD12P01100 [2] O-RING
370 LC15V00023S062 [1] PLUG
371 ZD12P01400 [2] O-RING
372 LC15V00023S067 [2] RESTRICTOR
373 LC15V00023S068 [2] SPRING
374 YN15V00017S038 [5] PLUG
375 ZD12P00800 [6] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
376 GN15V00010S024 [3] RESTRICTOR
377 YN15V00017S017 [3] CHECK VALVE
378 YN15V00017S026 [3] SPRING
379 ZD12P01600 [1] O-RING
380 YN15V00037S380 [1] O-RING
397 2483U254S19 [1] Name Plate
398 YN15V00037S398 [4] Rivet
399 YN15V00037S399 [1] Name Plate
. . YN15V00037R400 [1] PISTON
. . YN15V00037R410 [1] PISTON
. . YN15V00037R420 [1] PLATE
. . YN15V00037R430 [1] VALVE
. . YN15V00037R440 [1] VALVE
. . YN15V00037R450 [1] SEAL KIT
. . YN15V00037R460 [1] REPAIR KIT



Cause Of The Problem:
The Main Factors Causing Oil Seal Leakage
Loose Oil Seal Is The Main Cause Of Oil Leakage.When The Shaft Is Worn And Grooves Are Formed, Even If The Oil Seal Is Replaced, It Can Not Be Sealed, Because The Contact Pressure Between The Oil Seal Lip And The Shaft Drops, Resulting In Too Small Interference Between The Diameter Of The Oil Seal Lip And The Shaft Diameter After Installation.
1. The Oil Seal Manufacturing Quality Is Poor;
2. Poor Shaft Or Bearing Quality;
3. Improper Use And Maintenance;
4. Improper Installation;
5. Improper Storage, Caused By Environmental Pollution
