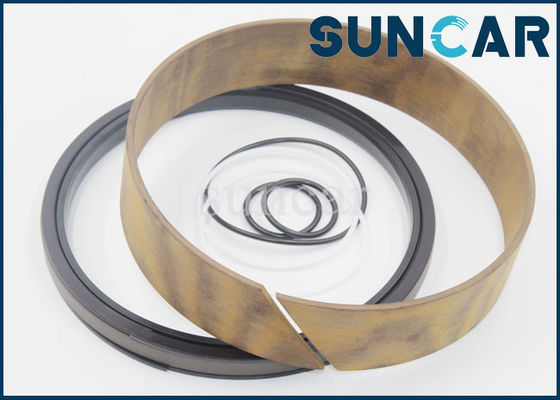

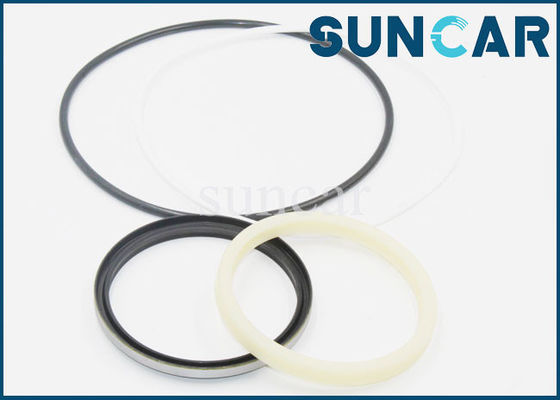

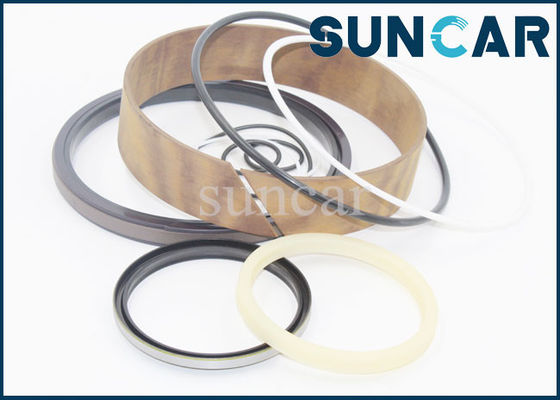

D275A-2 Komatsu Dozer Inner Parts 707-98-73010 Ripper Lift Cylinder Sealing Kit

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	707-98-73010 Komatsu D275A-2
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability	3000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Part Number	707-98-73010	Cylinder	17M-63-01041
Serial Number	10001	Preservation Notice	Closed, Dry And Avoid The Sun
Rod	100MM	Bore	200MM
High Light	KOMATSU Seal Kit , Ripper Lift Cylinder Sealing Kit , Hydraulic Cylinder Seal Kit

Leave a Message

Product Description

D275A-2 Komatsu Dozer Inner Parts 707-98-73010 Ripper Lift Cylinder Sealing Kit

Product Name	Cylinder Seal Kit
Model Number	Komatsu D275A-2
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number	707-98-73010
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
Size	Standard size
Applicable Industries	Construction works, machinery repair shops, retail, other
CertifiC.A.Tion	ISO9001
Condition	100% new
C.A.Tegory	Seal kits
Warranty	Unavailable
OEM and ODM	Welcome
Feature	Oil & high pressure & high temperature resistant
Preservation Notice	Closed, dry and avoid the sun
AppliC.A.Tion	Komatsu bulldozers
Cylinder	17M-63-01041
Rod	100MM
Bore	200MM
Serial Number	10001

Order Process:

1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)

2. Quoting our competitive price for you

3. Place an order after approving the quotation or products

4. We will send Proforma Invoice or sales confirmation

5. You prepay by T/T or L/C or Western Union or ESCROW through bank

6. We will starting to produce after we get your kind payment

7. Packing

8. Shipping the goods to your(our)forwarder

9. Sending all doc for your custom clearance

10. Time to reorder

When You Open And Repair The Cylinder, Please Follow Below Operation:

1. Take off the cylinder from the machine.

2. Remove the head assembly and the rod assembly from the stick cylinder group.

3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

4. Measure the seal kits before fitting.

5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.

Related Parts:

Pos.	Part No	Qty	Parts name
G-1.	17M-63-X1041	[1]	CYLINDER GROUP,RIPPER LIFT, L.H.
G-1.	17M-63-X1051	[1]	CYLINDER GROUP,RIPPER LIFT, R.H.
	17M-63-01041	[1]	CYLINDER ASSEMBLY
1	17M-63-42140	[1]	CYLINDER
2	707-76-90120	[1]	BUSHING
3	07145-00090	[2]	SEAL,DUST (KIT)
4	707-27-20230	[1]	HEAD,CYLINDER
5	707-52-11010	[1]	BUSHING
6	707-51-10211	[1]	PACKING,ROD (KIT)
7	176-63-56170	[1]	SEAL,DUST (KIT)
8	07179-13114	[1]	RING,SNAP
9	07000-15190	[1]	O-RING (KIT)
10	07146-05192	[1]	RING,BACK-UP (KIT)
11	01010-82075	[12]	BOLT
12	01643-32060	[12]	WASHER
13	17M-63-42120	[1]	ROD,PISTON
14	707-76-90110	[1]	BUSHING
16	707-36-20470	[1]	PISTON
17	07000-12080	[1]	O-RING (KIT)
18	707-35-52920	[2]	RING,BACK-UP (KIT)
19	707-44-20180	[1]	RING,PISTON (KIT)
20	07155-02045	[1]	RING,WEAR (KIT)
21	707-40-20030	[2]	SPACER
22	01010-31245	[6]	BOLT
23	07020-00675	[1]	FITTING,GREASE
24	07020-00900	[1]	FITTING,GREASE
25	07042-10108	[1]	PLUG,GREASE
26	17M-63-42170	[1]	TUBE,L.H.
26	17M-63-42270	[1]	TUBE,R.H.
27	17M-63-42180	[1]	TUBE,L.H.
27	17M-63-42280	[1]	TUBE,R.H.
28	07000-13035	[2]	O-RING (KIT)
29	01010-51055	[4]	BOLT
30	01010-51060	[4]	BOLT
31	01643-31032	[8]	WASHER
32	195-78-72550	[1]	BRACKET,L.H.
32	195-78-72560	[1]	BRACKET,R.H.
33	01010-51025	[4]	BOLT
35	07283-23450	[2]	CLIP
37	01599-01011	[4]	NUT
	707-98-73010	[2]	SERVICE KIT
