EX120-5 Hitachi 4364913 Arm Cylinder Repair Seal Kit EX135UR Excavator Service Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 4364913 Hitachi EX120-5, EX130H-5, EX135UR
CertifiC.A.Tion ISO9001
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability 2500 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number 4364913 C.A.Tegory Cylinder Seal Kit
Preservation Notice Closed, Dry And Avoid The Sun Condition 100% New
Applicable Industries Machinery Repair Shops, Construction Works, Energy & Mining Shipping Mode By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.)
High Light

HITACHI Seal Kit

,

Arm Cylinder Repair Seal Kit

,

Hydraulic Cylinder Seal Kit

Leave a Message
Product Description



EX120-5 Hitachi 4364913 Arm Cylinder Repair Seal Kit EX135UR Excavator Service Kit



Product Name 4364913 Arm Cylinder Repair Seal Kit
Model Number Hitachi EX120-5, EX130H-5, EX135UR, EX135UR-5, EX135US-5, EX140US-5
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number 4364913
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Size Standard size
Applicable Industries Machinery repair shops, construction works, energy & mining
CertifiC.A.Tion ISO9001
Condition 100% New
C.A.Tegory Cylinder seal kit
Warranty Unavailable
Customized OEM & ODM are welcomed
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Preservation Notice Closed, dry and avoid the sun



Related Parts:

EX120-5 Hitachi 4364913 Arm Cylinder Repair Seal Kit EX135UR Excavator Service Kit 0



Pos. Part No Qty Parts name
  4317313 [1] CYL.;ARM
1A 667002 [1] TUBE;CYL.
1B 4352400 [2] BUSHING;PIN
2 667003 [1] ROD;PISTON ASSEMBLY
2A 667004 [1] ROD;PISTON
2B 4352400 [2] BUSHING;PIN
3 667005 [1] HEAD;CYL.
4 309304 [1] BUSHING
5 208604 [1] RING;RETAINING
6 409004 [1] RING
7 208605 [1] PACKING;U-RING
8 208606 [1] RING;BACK-UP
9 667006 [1] RING;WIPER
10 A811105 [1] O-RING
11 298904 [1] RING;BACK-UP
12 408805 [12] BOLT;SOCKET
13 409005 [1] BRG.;CUSHION
14 667007 [1] SEAL
15 409007 [1] PISTON
16 240915 [1] RING;SEAL ASSEMBLY
17 409008 [2] RING;BACK-UP
18 667008 [2] RING;SLIDE
19 298907 [2] RING;SLIDE
20 409010 [1] SHIM
21 667009 [1] NUT
22 309011 [1] SCREW
23 111707 [1] BALL;STEEL
24 409012 [1] BRG.;CUSHION
25 667010 [1] SEAL
26 409014 [2] STOPPER
27 409015 [1] RING
29 408810 [4] RING;WIPER
30 409016 [1] JOINT
31 667011 [1] PIPE
32 4506430 [2] O-RING
33 309019 [8] BOLT;SOCKET
34 667012 [1] BAND
35 327410 [1] BAND
36 408815 [2] BOLT
37 325913 [2] WASHER
38 309021 [1] HOLDER
39 667013 [1] BOLT
40 208516 [1] WASHER;SPRING
41 J75481 [1] FITTING;GREASE
100 4364913 [1] KIT;SEAL
200 667014 [1] KIT;BAND



Provide Model:

  • Komatsu

PC50UU, PC28UG, PC40, PC50UG, PC56, PC60, PC75, PC100, PC120, PC128UU, PC75UU, PC130, PC55MR, PC210-8, PC60-8, PC110-7, PC130-7, PC160LC-7, PC200-8, PC200LC-8...

  • Hitachi

EX40, EX60, EX150, EX100M, EX100-2, EX100-3, EX100-5, EX120-3, EX120-5, EX120-6, EX150, EX200-1, EX200-2, EX200-3, EX220-3, EX220-5, EX220-6, EX240, EX270, EX300-1, EX300-3...

  • C.A.T

E110B, E200B, E320, E240 , E300B, E330, D3C, D5, D5B, D5D, D6C, D6D, D6H, D7G, D8K...

  • Daewoo

DH220, DH280, DH55-5, DH60-7, DH80GOLD, DH80-7, DH130-2, SOLARS130, DH220-2/3/5, DH200, DH225-7, DH280-3, DH258, DH215-9, DH225LC-9, DH320, DH320-2/3, DH300LC-7, DH420LC-7...

  • Hyundai

R55-7, R55-7S, R60-7/9, R110-7, R80-7, R130LC-5, R150W-7, R150LC-7, R190LC-5, R200, R215-7, R210, R225LC-9T, R245-7, R225LC-7, R260LC-7, R265LC-7, R275LC-9T...

  • Kobelco

SK260LC-8, SK210LC-8, SK300, SK320, SK330-8, SK350LC-8, SK380D, SK07N2, SK07-7, SK04-2, SK09, SK12, SK40, SK60, SK120-1, SK120-2, SK120-3, SK100-2, SK100-3, SK160...

  • SUNCARSUNCARSUNCARVO.L.VO

EB14, EB16, EC15, EC15T, EB22, EB27, EB28, EC45, EC55, EC55B, EC110, EC120, EC130, EC140, EC140B, EC145B, EC160, EC160B, EC170, EC200, EC200B...



Product Image:

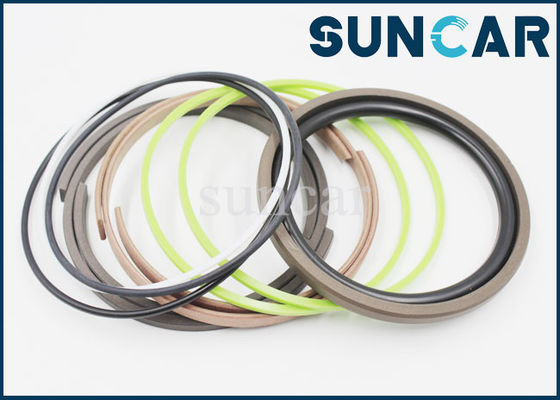

EX120-5 Hitachi 4364913 Arm Cylinder Repair Seal Kit EX135UR Excavator Service Kit 1

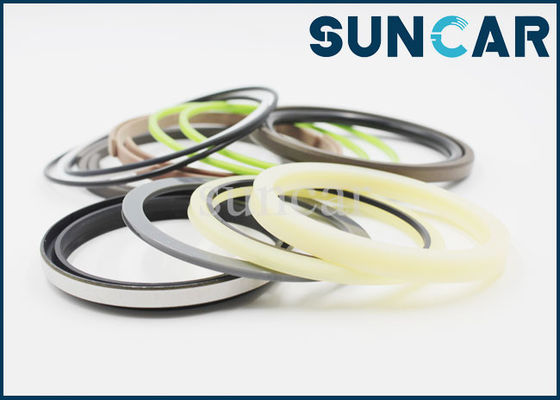

EX120-5 Hitachi 4364913 Arm Cylinder Repair Seal Kit EX135UR Excavator Service Kit 2
