Hydraulic Seal Kit LC01V00055R300 Excavator Repair Kit For Kobelco SK350-8 SK350-9
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | Kobelco SK350-8, SK350-9 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 2500 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | LC01V00055R300 | C.A.Tegory | Cylinder Seal Kit |
|---|---|---|---|
| Rod | 100 Mm | Bore | 150 Mm |
| Cylinder | LC01V00055F1, LC01V00055F2 | Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) |
| High Light | KOBELCO Seal Kit,Hydraulic Seal Kit,Excavator Repair Kit |
||
Product Description
Hydraulic Seal Kit LC01V00055R300 Excavator Repair Kit For Kobelco SK350-8 SK350-9
| Product Name | Hydraulic Seal Kit LC01V00055R300 Excavator Repair Kit |
| Model Number | Kobelco SK350-8, SK350-9 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | LC01V00055R300 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| C.A.Tegory | Cylinder seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Preservation Notice | Closed, dry and avoid the sun |
| Rod | 100 mm |
| Bore | 150 mm |
| Cylinder | LC01V00055F1, LC01V00055F2 |
Parts On Group:
| Pos. |
Part No |
Qty | Parts name | Comments |
| LC01V00055F1 | [1] | CYLINDER,Double Acting | KOB Assembly | |
| 2 | NSS | [1] | NOT SOLD SEPARAT | CON ROD,PISTON (F1 ONLY) |
| 3 | LC01V00055S003 | [1] | CYLINDER HEAD | KOB CYLINDER HEAD |
| 4 | 2438U1104S4 | [1] | BUSHING | KOB |
| 5 | 2438U1324S5 | [1] | SNAP RING | KOB |
| 6 | LC01V00044S006 | [1] | RING | KOB RING,BUFFER |
| 7 | LC01V00044S007 | [1] | RING | KOB U-RING |
| 8 | LQ01V00007S008 | [1] | RING | KOB |
| 9 | 2438U1172S37 | [1] | SCRAPER RING | KOB |
| 10 | ZD12G14500 | [1] | O-RING | KOB |
| 11 | 2438U1170S11 | [1] | BACK-UP RING | KOB |
| 12 | LC01V00006S012 | [12] | SCREW | KOB |
| 13 | LC01V00055S013 | [1] | BEARING | KOB BEARING,CUSHION |
| 14 | LC01V00006S014 | [1] | PISTON | KOB |
| 15 | 2438U1324S15 | [1] | SEALING RING | KOB |
| 16 | 2438U1170S17 | [2] | RING | KOB |
| 17 | LC01V00055S017 | [2] | RING | KOB RING,SLIDE |
| 18 | 2438U1324S17 | [2] | RING | KOB |
| 19 | 2438U953S19 | [1] | SHIM | KOB |
| 20 | LB01V00007S021 | [1] | NUT | KOB |
| 21 | 2438U953S21 | [1] | SET SCREW | KOB |
| 22 | 2436R624S6 | [1] | BALL | KOB |
| 23 | LC12B01494P1 | [4] | BUSHING | KOB |
| 24 | 2438U1381S24 | [4] | SCRAPER RING | KOB |
| 25 | NSS | [1] | NOT SOLD SEPARAT | CON TUBE,CYLINDER |
| 26 | NSS | [1] | NOT SOLD SEPARAT | CON ROD,PISTON |
| 27 | LC01V00006S023 | [2] | BUSHING | KOB |
| K. | LC01V00055R100 | [1] | REPAIR KIT | KOB ROD SIDE |
| K. | LC01V00055R200 | [1] | REPAIR KIT | KOB PISTON SIDE |
| K. | LC01V00055R300 | [1] | REPAIR KIT | KOB ALL(ROD + PISTON) |
| K. | LC01V00055R400 | [1] | REPAIR KIT | KOB (F1 ONLY) |
| K. | LC01V00055R500 | [1] | REPAIR KIT | KOB (F1 ONLY) |
| K. | LC01V00055R600 | [1] | REPAIR KIT | KOB F2 ONLY) |
| F. | LC01V00055R700 | [1] | REPAIR KIT | KOB F2 ONLY) |
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Seal ClassifiC.A.Tion:
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.

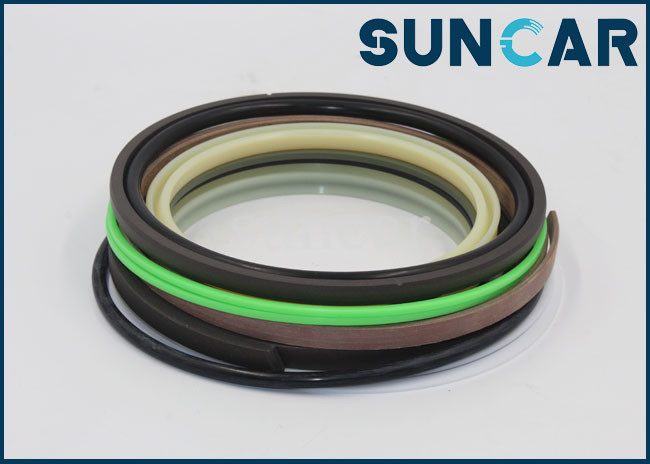

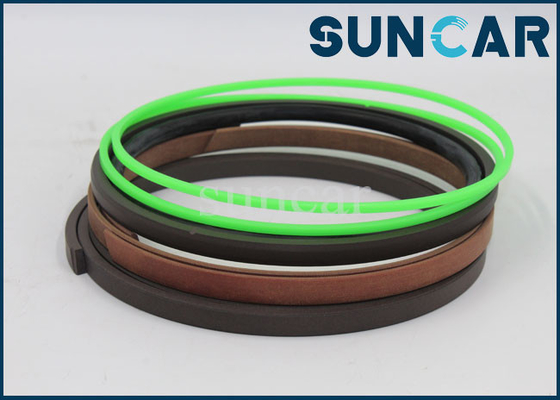

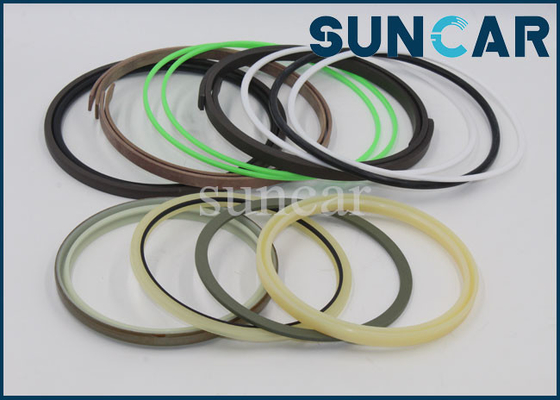

Product Image:
