9168003 Travel Motor Seal Kit Oil Seal Repair Kit for ZX200LC Excavator

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number Hitachi 9168003
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3500 set per month
Product Details
Product Name Hitachi 9168003 Travel Motor Seal Kit Shipping Mode By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.)
Part Number 9168003 Customized OEM & ODM Are Welcomed
Feature High Efficiency, Long Life Category Seal Kit
High Light

9168003 Motor Seal Kit

,

9168003 Seal Kit

,

9168003 Seal Repair Kit

Leave a Message
Product Description

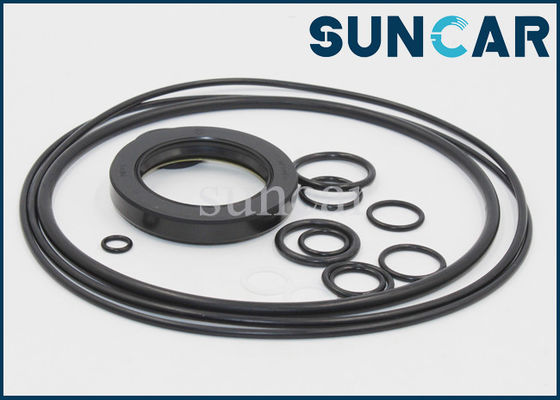

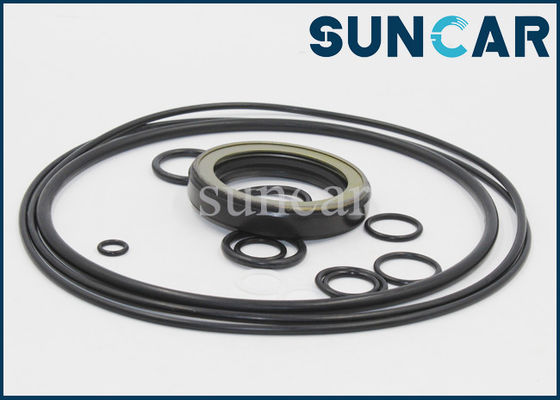

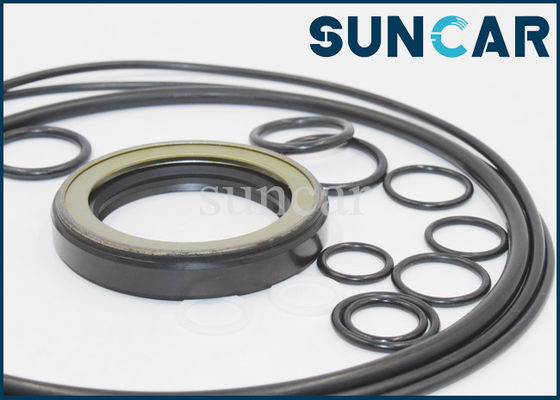

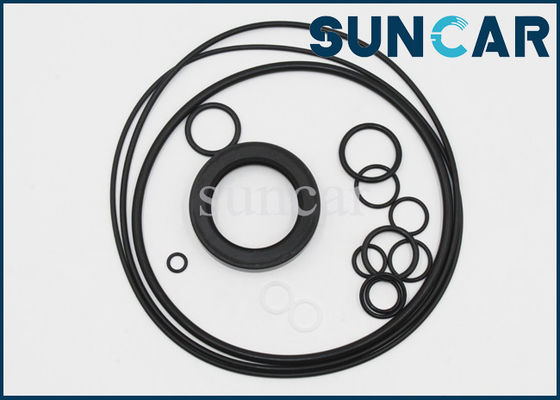

Hitachi 9168003 Travel Motor Seal Kit Excavator ZX200LC Inner Oil Motor Repair Kit



Product Name Hitachi 9168003 Travel Motor Seal Kit Excavator ZX200LC Inner Oil Motor Repair Kit
OEM Number 9168003
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc.
Hardness 70-90 Shore A
Brand SUNCAR/OEM
MOQ Negotiation
Packing Detail Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request)
Weight 0.35kg
Delivery Time 5-7 days after payment received(public holiday excluded)
Availability In Stock
Shipping Policy By International Express(Fedex,TNT,UPS,DHL)Or Ship
Application Hitachi Excavator Model
Condition 100% Brand New
After-sales Service Online support
Related parts Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit
Supply Ability 3500 Piece/Pieces per Month


Related Parts:

9168003 Travel Motor Seal Kit Oil Seal Repair Kit for ZX200LC Excavator 0

9168003 Travel Motor Seal Kit Oil Seal Repair Kit for ZX200LC Excavator 1

9168003 Travel Motor Seal Kit Oil Seal Repair Kit for ZX200LC Excavator 2



Pos. Part No Qty Parts name
0 9170996 [2] TRAVEL DEVICE
0 9233687 [2] TRAVEL DEVICE
0 9195447 [2] TRAVEL DEVICE
0 9233688 [2] TRAVEL DEVICE
1 9168003 [1] MOTOR;OIL
1 9234034 [1] MOTOR;OIL
1 9195451 [1] MOTOR;OIL
1 9237802 [1] MOTOR;OIL
2 4114753 [1] SEAL;GROUP
2 4634693 [1] SEAL;GROUP
3 4246793 [2] BRG.;ROL.
4 1025833 [1] DRUM
5 1018740 [1] SPROCKET
6 J932055 [16] BOLT
7 A590920 [16] WASHER;SPRING
8 3086531 [1] NUT
10 4436242 [1] PIN;KNOCK
12 1025875 [1] CARRIER
14 4438593 [6] BRG.;NEEDLE
15 4284521 [6] PLATE;THRUST
16 4315838 [3] PIN
17 4116309 [3] PIN;SPRING
18 3082156 [1] GEAR;SUN
19 3084353 [3] GEAR;PLANETARY
20 1025787 [1] GEAR;RING
21 J931640 [24] BOLT
23 2042432 [1] CARRIER
24 4401293 [2] SPACER
25 3082155 [3] GEAR;PLANETARY
26 4438592 [3] BRG.;NEEDLE
27 4192982 [6] PLATE;THRUST
28 4402086 [3] PIN
29 4192020 [3] PIN;SPRING
30 3082149 [1] GEAR;SUN
32 1025826 [1] CARRIER
33 3082148 [3] GEAR;PLANETARY
34 4387383 [3] BRG.;NEEDLE
35 4192910 [6] PLATE;THRUST
36 4210853 [3] PIN
37 4173093 [3] PIN;SPRING
38 2042351 [1] SHAFT;PROP.
38 2049585 [1] SHAFT;PROP.
40 2034833 [1] COVER
41 4285323 [1] PIN;STOPPER
41 4478346 [1] PIN;STOPPER
42 J011230 [12] BOLT;SEMS
42 4609016 [12] BOLT;SEMS
43 4245797 [3] PLUG
46 3053559 [1] NAME-PLATE
47 M492564 [2] SCREW;DRIVE





Advantage:
1. The Oil Seal Structure Is Simple And Easy To Manufacture. Simple Oil Seals Can Be Molded At One Time, Even The Most Complicated Oil Seals Are Manufactured Using Oil Seals
Not Complicated. The Metal Frame Oil Seal Also Only Needs To Go Through The Processes Of Stamping, Gluing, Inlaying, And Molding To Form The Required Oil Seal With Metal And Rubber.
2. The Oil Seal Is Light In Weight And Less Consumable. Each Oil Seal Is a Combination Of Thin-Walled Metal Parts And Rubber Parts, And Its Material Consumption Is Very Small, So The Weight Of Each Oil Seal Is Very Light.
3. The Installation Position Of The Oil Seal Is Small, The Axial Size Is Small, It Is Easy To Process, And The Machine Is Compact.
4. The Oil Seal Has Good Sealing Performance And Long Service Life. It Has Certain Adaptability To The Vibration Of The Machine And The Eccentricity Of The Spindle.
5. The Oil Seal Is Easy To Disassemble And Inspection Is Convenient.
6. The Oil Seal Is Cheap.





Cause Of The Problem:
The Main Factors Causing Oil Seal Leakage
Loose Oil Seal Is The Main Cause Of Oil Leakage.When The Shaft Is Worn And Grooves Are Formed, Even If The Oil Seal Is Replaced, It Can Not Be Sealed, Because The Contact Pressure Between The Oil Seal Lip And The Shaft Drops, Resulting In Too Small Interference Between The Diameter Of The Oil Seal Lip And The Shaft Diameter After Installation.
1. The Oil Seal Manufacturing Quality Is Poor;
2. Poor Shaft Or Bearing Quality;
3. Improper Use And Maintenance;
4. Improper Installation;
5. Improper Storage, Caused By Environmental Pollution
