R320LC-7 Hyundai Service Kit 31Y1-19080 Excavator Hydraulic Arm Cylinder Oil Seal Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 31Y1-19080 R320LC-7, R320LC-7A, RD340LC-7
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability 3000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number 31Y1-19080 C.A.Tegory Hydraulic Cylinder Seal Kit
Applicable Industries Machinery Repair Shops, Construction Works, Energy & Mining Size Standard Size
Shipping Mode By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) Preservation Notice Closed, Dry And Avoid The Sun
High Light

31Y1-19080 Arm Cylinder Oil Seal Kit

,

HYUNDAI Seal Kit

,

R320LC-7 Hyundai Service Kit

Leave a Message
Product Description



R320LC-7 Hyundai Service Kit 31Y1-19080 Excavator Hydraulic Arm Cylinder Oil Seal Kit



Product Name Cylinder Seal Kit
Model Number Hyundai R320LC-7, R320LC-7A, RD340LC-7
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number 31Y1-19080
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Size Standard size
Applicable Industries Machinery repair shops, construction works, energy & mining
CertifiC.A.Tion ISO9001
Condition 100% New
C.A.Tegory Hydraulic cylinder seal kit
Warranty Unavailable
Customized OEM & ODM are welcomed
Feature Long service life, high chemical resistance, durable
Preservation Notice Closed, dry and avoid the sun
Related Brands Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C.A.T, SUNCARSUNCARSUNCARSUNCARVOLVO, Kato...



Customer Service:

  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
  • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  • Positive feedback is very important to us.



Related Parts:

R320LC-7 Hyundai Service Kit 31Y1-19080 Excavator Hydraulic Arm Cylinder Oil Seal Kit 0



Pos. Part No Qty Parts name
*. 31N9-50130 [1] ARM CYLINDER ASSY
*. 31N9-50131 [1] ARM CYLINDER ASSY
*-1. 31Y1-19050 [1] ARM CYLINDER SUB
*-1. 31Y1-19051 [1] ARM CYLINDER SUB
1 31Y1-19210 [1] TUBE ASSY
2 31Y1-19230 [1] ROD ASSY
N20. @ [1] SPEAR-CUSHION
N21. @ [1] VALVE-CHECK
N22. @ [1] SPRING-COIL
N23. @ [1] RING-STOP
3 31Y1-19190 [1] GLAND
4 S732-110045 [1] BUSHING-DD2
5 Y191-117000 [1] RING-SNAP
K6. Y220-110011 [1] SEAL-ROD
K7. Y180-110020 [1] RING-BACK UP
K8. Y240-110013 [1] RING-BUFFER
K9. Y110-110011 [1] WIPER-DUST
10 Y190-126000 [1] RING-SNAP
K11. S631-150004 [1] O-RING
K12. S641-150003 [1] RING-BACK UP
13 31YC-23050 [1] RING-CUSHION
14 31Y1-08172 [1] PISTON
K15. S632-095004 [1] O-RING
K16. S642-095003 [2] RING-BACK UP
K17. Y420-160000 [1] SEAL-PISTON
K18. Y310-160200 [2] RING-WEAR
K19. Y440-160002 [2] RING-DUST
24 31YC-66081 [1] WASHER-LOCK
25 31YC-61142 [1] NUT-LOCK
25 31YC-61144 [1] NUT-LOCK
26 S109-200904 [12] BOLT-SOCKET
34 31YC-11401 [2] BUSHING-PIN
35 Y000-100100 [4] SEAL-DUST,DLI,KPU
36 S114-080204 [1] SCREW-SET
27 31Y1-19480 [1] BAND ASSY
27-1. 31Y1-19490 [1] BAND SUB ASSY
27-2. 31YC-31240 [1] BAND
27-3. S015-120452 [2] BOLT-HEX
27-4. S411-120002 [2] WASHER-SPRING
27-5. S071-023430 [1] U-BOLT
27-6. S201-101002 [2] NUT-HEX
27-7. S411-100002 [2] WASHER-SPRING
28 31Y1-08200 [1] BAND ASSY-B
28-1. 31Y1-08210 [1] BAND SUB ASSY-B
28-2. 31YC-32120 [1] BAND
28-3. S015-120452 [4] BOLT-HEX
28-4. S411-120002 [4] WASHER-SPRING
28-5. S071-023430 [2] U-BOLT
28-6. S201-101002 [4] NUT-HEX
28-7. S411-100002 [4] WASHER-SPRING
29 31Y1-19160 [1] PIPE ASSY-R
30 31Y1-08230 [1] PIPE ASSY-B
K31. Y171-024004 [2] O-RING
32 S107-120554 [4] BOLT-SOCKET
33 S107-100554 [4] BOLT-SOCKET
K. 31Y1-19080 [1] SEAL KIT



Product Show:

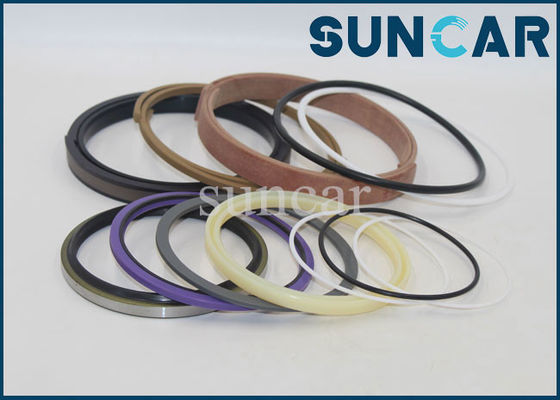

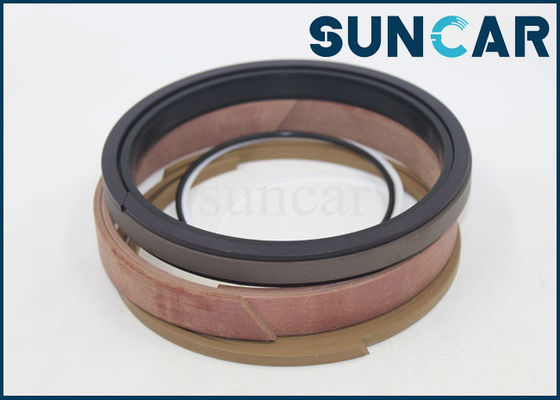

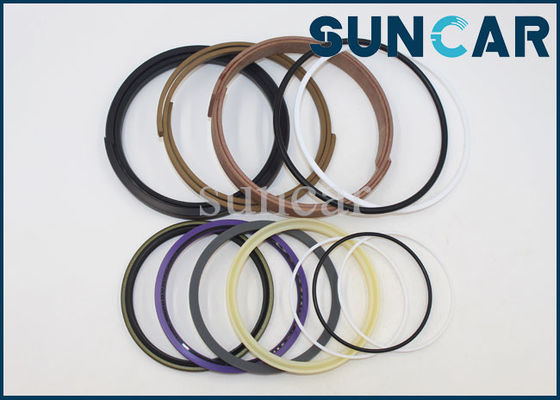

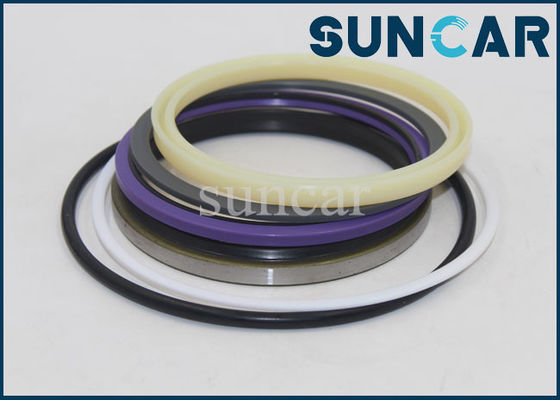

R320LC-7 Hyundai Service Kit 31Y1-19080 Excavator Hydraulic Arm Cylinder Oil Seal Kit 1

R320LC-7 Hyundai Service Kit 31Y1-19080 Excavator Hydraulic Arm Cylinder Oil Seal Kit 2
