20MPa Hydraulic Oil Seals OUY Piston Seal Ring PUR U801

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number OUY Piston Seal
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability 3000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Hydraulic Seal Style Mechanical Seal
Hardness 90 Shore A Speed 0.5m/s
Temperature -30℃~+100°C Pressure 20MPa
High Light

PUR OUY Piston Seal

,

Hydraulic Piston Seal

,

20MPa Piston Seal

Leave a Message
Product Description



Excavator Piston Oil Seals OUY Adjust Seals Hydraulic Piston Seal



Product Name OUY Piston Seal
Material PUR U801
Type Hydraulic seal
Style Mechanical seal
Hardness 90 Shore A
Speed 0.5m/s
Temperature -30℃~+100°C
Pressure 20MPa
Medium Hydraulic oils(mineral oil-based)
OEM Accept
CertifiC.A.Tion ISO9001
Packing PP bag inside, carton box outside
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Shipping By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Brand Name SUNCAR



Feather:

  • High wear resistance
  • High impact resistance
  • Anti-extrusion
  • Small compression deformation
  • Adapt to the toughest working condition
  • Sufficient lubriC.A.Tion due to the pressure medium of between the sealing lip
  • Prevent outer air entering
  • Easy installation



AppliC.A.Tion Of OUY:

Piston seals or piston rings are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurized fluid does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore. Leakage through the piston seal can reduce equipment performance, and also in extreme cases can cause environmental issues. OUY is mainly used for piston seals of tensioning cylinders of construction machinery such as forklifts, excavators, etc. Has the characteristics of wear resistance, high pressure resistance, aging resistance, corrosion resistance.



Basic Requirements for Sealing Materials:

The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:

1. Have certain mechanical properties, such as tensile strength, elongation, etc.;

2. Appropriate elasticity and hardness, small compression set;

3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;

4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;

5. Good oxygen resistance and aging resistance, durable;

6. Abrasion resistance, no corrosion to metal;

7. Easy to shape and process, low price.



Some Part Number Of OUY:

09370-00040 09370-00070 09370-00090 175-30-24242
09370-00060 09370-00070 09370-00090 145-63-32471
4179303 707-42-70012 09370-00090 4195020
09370-00070 150-30-13442 175-30-24242 707-42-14012
09370-00070 2180-9115 175-30-24242



Some Size Of OUY:

40*25*12 70*45*15.5 100*75*18 140*120*12
50*35*12 70*45*15.5 100*75*18 225*200*12
50*35*12 90*65*18/17 75*60*12 85*70*12
60*35*15.5 90*65*18/17 45*30*12 95*80*12
70*45*15.5 90*65*18/17 80*65*12 90*75*12
70*45*15.5 100*75*18



Product Show:

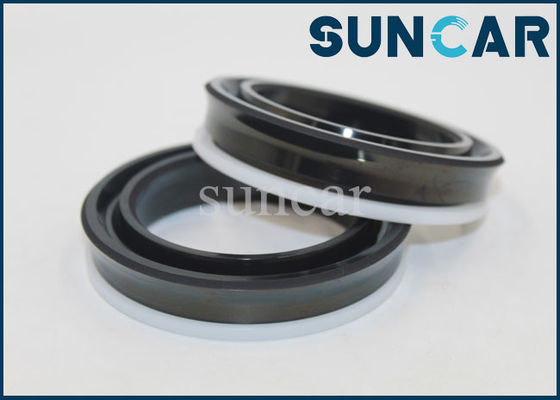

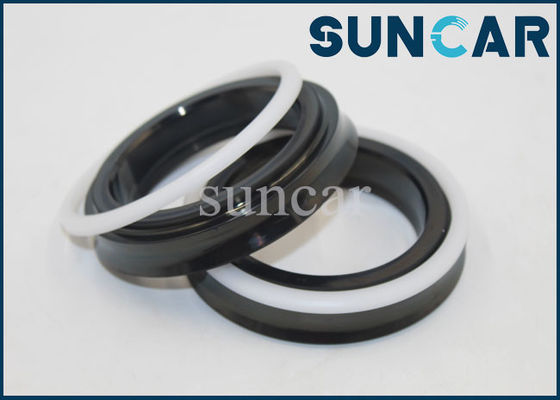

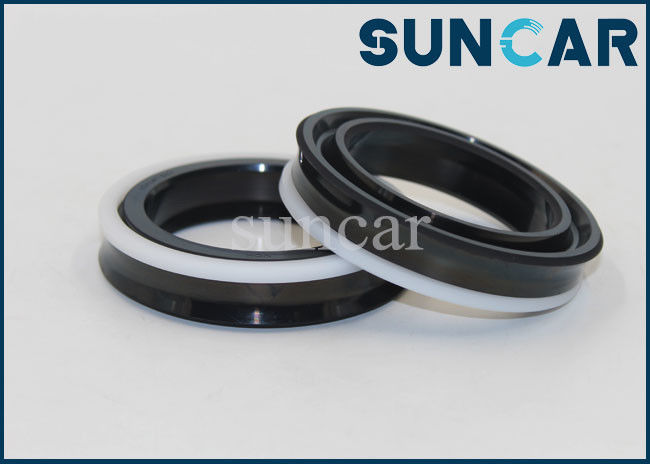

20MPa Hydraulic Oil Seals OUY Piston Seal Ring PUR U801 0
