Track Adjuster Hydraulic Seal Repair Kit 81N1-15012 Fits R80-7A

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number 81N1-15012 ,Hyundai R80-7A
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 1300 set per week
Product Details
Part Number 81N1-15012 Feature Oil & High Pressure & High Temperature Resistant
Condition 100% New OEM And ODM Welcome
Applicable Industries Construction Works, Machinery Repair Shops, Retail, Other Material Rubber,PU,NBR,Steel
High Light

81N1-15012 Repair Kit

,

81N1-15012 Hydraulic Seal

,

R80-7A 81N1-15012

Leave a Message
Product Description

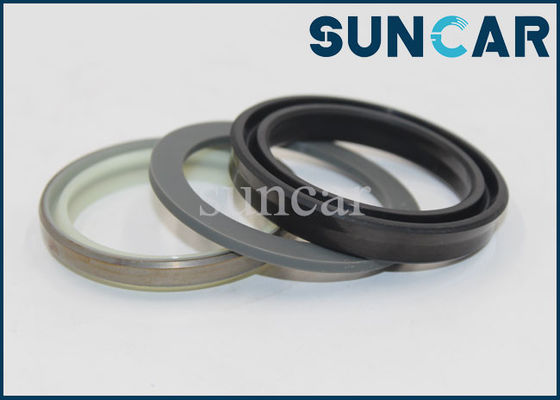

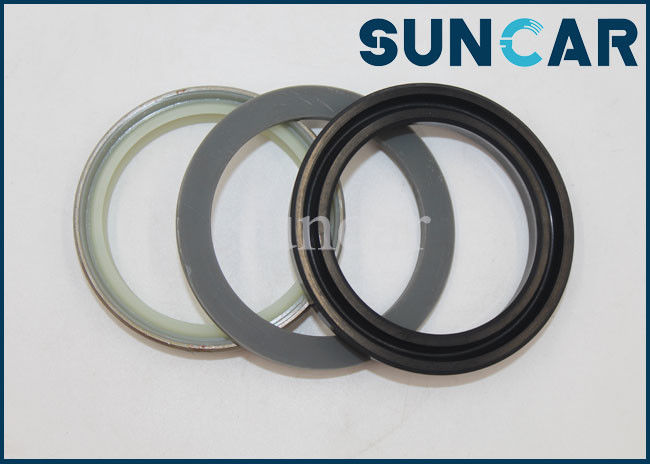

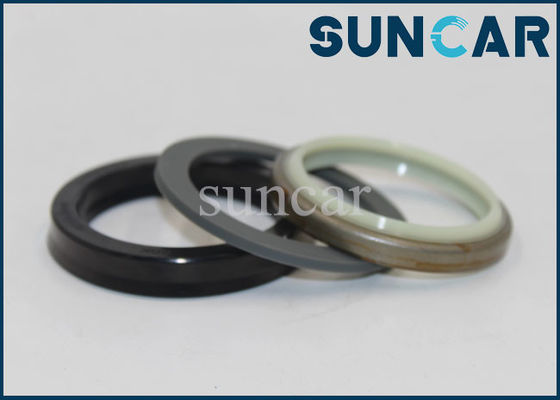

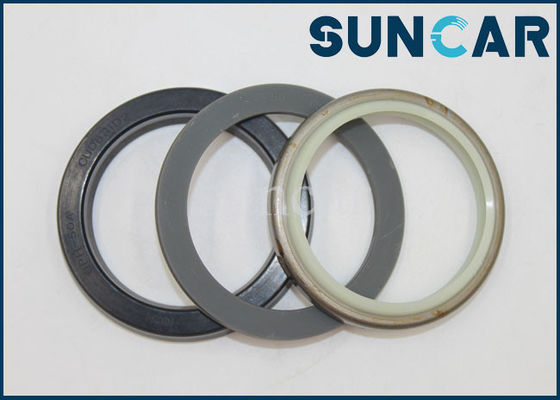

Hyundai R80-7A Excavator Cylinder 81N1-15012 Track Adjuster Hydraulic Repair Seal Kit



Product Name Hyundai R80-7A Excavator Cylinder 81N1-15012 Track Adjuster Hydraulic Repair Seal Kit
Part No. 81N1-15012
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Hardness 70-90 Shore A
Color Black, White or other
Size Standard Size
MOQ We accept trial order
Packing PP bag inside, carton box outside( According to your requirements)
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
Application Excavator Inner Systerm
Condition 100% New




Related Parts:

Track Adjuster Hydraulic Seal Repair Kit 81N1-15012 Fits R80-7A 0Track Adjuster Hydraulic Seal Repair Kit 81N1-15012 Fits R80-7A 1

Pos. Part No Qty Parts name Comments
*. 81N1-15011 [2] ADJUST COMPONENT STD
*. 81N1-15012 [2] ADJUST COMPONENT STD
*. 81N1-15051 [2] ADJUST COMPONENT RUBBER TRACK
*. 81N1-15052 [2] ADJUST COMPONENT RUBBER TRACK
1 81N1-13010 [1] IDLER ASSY STD
1 81N1-13050 [1] IDLER ASSY RUBBER TRACK
1 81N1-13051 [1] IDLER ASSY RUBBER TRACK
1-1. 81N1-13100 [1] SHELL-IDLER STD
1-1. 81N1-13500 [1] SHELL-IDLER RUBBER TRACK
1-1. 81N1-13501 [1] SHELL-IDLER RUBBER TRACK
1-2. 81N1-13110 [1] SHAFT
1-3. 81E6-2206 [2] SEAL ASSY
1-4. 81N1-13120 [2] BUSHING
1-5. 81N1-13130 [2] BRACKET
1-6. 81N1-13170 [2] O-RING
1-7. 81N1-13180 [2] PIN-SPRING
1-8. 82E5-2402 [1] PLUG
2 81N1-14011 [1] T/CYLINDER ASSY STD
2 81N1-14051 [1] T/CYLINDER ASSY RUBBER TRACK
2 81N1-14052 [1] T/CYLINDER ASSY RUBBER TRACK
2-1. 81N1-14300 [1] BODY ASSY STD
2-1. 81N1-14300 [1] BODY ASSY RUBBER TRACK
2-1. 81N1-14301 [1] BODY ASSY RUBBER TRACK
2-1-1. 81N1-14100 [1] BODY W/O PIN-HOLE
2-1-1. 81N1-14101 [1] BODY W/O PIN-HOLE
2-1-2. 81N1-14110 [1] BAR-TIE W/O PIN-HOLE
2-1-2. 81N1-14115 [1] BAR-TIE RUBBER TRACK
2-1-3. 81E6-20190 [1] PIN-SPRING
2-2. 81N1-14120 [1] SRPING
2-2. 81N1-14121 [1] SRPING
2-3. 81N1-14131 [1] BRACKET
2-4. 81N1-14140 [1] NUT-LOCK
2-5. 81N1-14150 [1] PLATE-LOCK
2-6. S017-080252 [2] BOLT-HEX
2-7. S411-080002 [2] WASHER-SPRING
2-8. 81N1-14180 [1] SEAL-ROD
2-9. 81N1-14190 [1] RING-BACK UP
2-10. 81N1-14200 [1] SEAL-DUST
2-11. 81N1-14210 [1] ROD
2-12. E181-2013 [1] VALVE-GREASE
2-12. 81N6-14240 [1] VALVE-GREASE
2-13. 81N1-14220 [1] SPACER STD
2-13. 81N1-14520 [1] SPACER RUBBER TRACK
2-13. 81N1-14521 [1] SPACER RUBBER TRACK
3 S017-16040D [2] BOLT-HEX
4 S411-160006 [2] WASHER-SPRING



Storage Precautions:

When storing seals, please pay attention to the following items:

1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.

2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.

3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.

4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.

5. Do not place the seal near the motor or where ozone is generated.

6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.

7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.



Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
