195-63-05110 Blade Lift Hydraulic Repair Kit Cylinder Sealing Kit Fits D355A-3 Komatsu

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	195-63-05110 KOMATSU D355A-3
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability	3000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Blade Lift Hydraulic Repair Kit Cylinder Sealing Kit	Part Number	195-63-05110
AppliC.A.Tion	D355 Crawler Tractor-loader(Dozer Tilt)	Warranty	Unavailable
Rod	90MM	Bore	250MM
High Light	Blade Lift Hydraulic Repair Kit , 195-63-05110 Cylinder Sealing Kit , KOMATSU Seal Kit

Leave a Message

Product Description

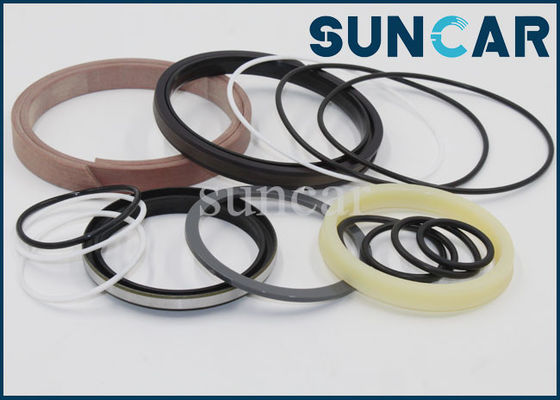

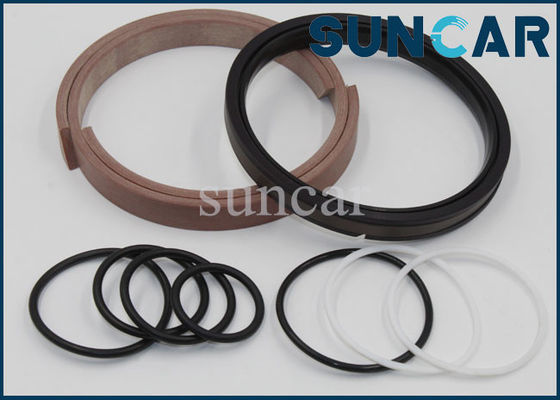

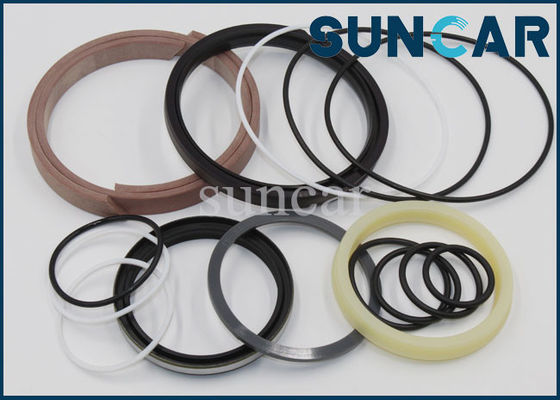

195-63-05110 Blade Lift Hydraulic Repair Kit Cylinder Sealing Kit Fits D355A-3 Komatsu

Product Name	Blade Lift Hydraulic Repair Kit Cylinder Sealing Kit
Model Number	KOMATSU D355A-3
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number	195-63-05110
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Condition	100% New
Warranty	Unavailable
Customized	OEM & ODM are welcomed
AppliC.A.Tion	D355 Crawler tractor-loader(Dozer tilt)
Preservation Notice	Closed, dry and avoid the sun
Quality	Original quality, high performance
Uses	Good oil resistance, wear resistance, and corrosion resistance
Rod	90MM
Bore	250MM

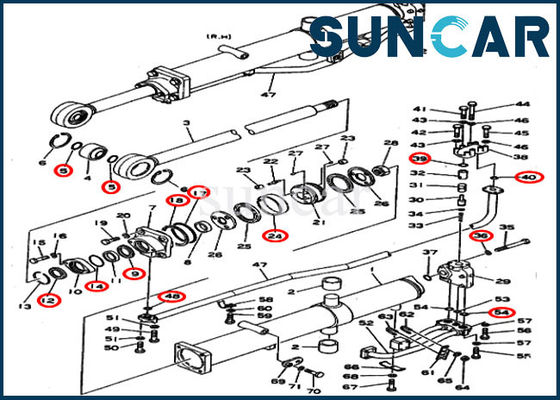

Related Parts:

Pos.	Part No.	QYT.	Parts name
	195-63-13101	[1]	CYLINDER ASSEMBLY,L.H.
	195-63-13201	[1]	CYLINDER ASSEMBLY,R.H.
1	195-63-13141	[1]	CYLINDER
2	195-63-12640	[2]	BUSHING
3	195-63-13121	[1]	ROD
4	07137-05509	[1]	BUSHING
5	07000-13055	[2]	O-RING (KIT)
6	04065-01240	[2]	RING
7	195-63-13130	[1]	HEAD
8	07177-09035	[1]	BUSHING
9	154-63-52173	[1]	U-PACKING (KIT)
10	195-63-52470	[1]	GLAND
11	07177-09020	[1]	BUSHING
12	07016-00908	[1]	SEAL,DUST (KIT)
13	07179-00113	[1]	RING
14	07000-13110	[1]	O-RING (KIT)
15	01010-31860	[2]	BOLT
16	01602-01854	[2]	WASHER
17	07000-16150	[1]	O-RING (KIT)
18	07146-05152	[1]	RING (KIT)
19	01010-62775	[4]	BOLT
20	01602-02783	[4]	WASHER
	195-63-13980	[1]	PISTON ASSEMBLY
24	07155-01640	[1]	RING (KIT)
25	141-60-34411	[2]	PACKING
26	195-63-12361	[2]	RETAINER
27	04020-00616	[2]	PIN
28	07165-15252	[1]	NUT
	195-63-14001	[1]	VALVE ASSEMBLY
32	195-63-14162	[1]	COLLAR
33	195-63-14180	[1]	SPRING
34	01642-21216	[1]	WASHER
35	01011-31615	[2]	BOLT
36	01602-01648	[2]	WASHER
37	07000-12055	[1]	O-RING (KIT)
38	195-63-14130	[1]	ELBOW
39	07000-13048	[1]	O-RING (KIT)
40	07000-13045	[1]	O-RING (KIT)
41	01010-31075	[2]	BOLT
42	01010-31065	[2]	BOLT
43	01602-01030	[4]	WASHER
44	01010-31280	[2]	BOLT
45	01010-31270	[2]	BOLT
46	01602-01236	[4]	WASHER
47	195-63-13461	[1]	TUBE,L.H.
47	195-63-13471	[1]	TUBE,R.H.
48	07000-13035	[1]	O-RING (KIT)
49	01010-31060	[2]	BOLT
50	01010-31040	[2]	BOLT
52	195-63-13562	[1]	TUBE,L.H.
52	195-63-13572	[1]	TUBE,R.H.
54	07000-13038	[2]	O-RING (KIT)
56	01010-31260	[2]	BOLT
58	07282-04311	[1]	CLAMP
59	01010-31020	[2]	BOLT
61	195-63-13880	[1]	PLATE
62	07283-13442	[1]	CLIP
63	07283-14346	[1]	CLIP
64	01599-01011	[4]	NUT
65	01643-01032	[4]	WASHER
66	175-63-12580	[2]	CLAMP
69	195-63-12170	[1]	PLATE
70	01010-31870	[1]	BOLT
KIT	195-63-05110	[2]	SERVICE KIT
