D375A-3 Komatsu Parts 707-98-74410 Tilt Sealing Kit Hydraulic Cylinder Service Kit
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | 707-98-74410 KOMATSU D375A-2, D375A-3, D375A-3A, D375A-3D |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
Supply Ability | 3200 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Tilt Sealing Kit Hydraulic Cylinder Service Kit | Part Number | 707-98-74410 |
---|---|---|---|
Rod | 110MM | Bore | 225MM |
Cylinder | 195-63-01311, 195-63-53401, 195-63-53200 | AppliC.A.Tion | Komatau Dozer Tilt |
High Light | KOMATSU Seal Kit,707-98-74410 Tilt Sealing Kit,D375A-3 Hydraulic Cylinder Service Kit |
D375A-3 Komatsu Parts 707-98-74410 Tilt Sealing Kit Hydraulic Cylinder Service Kit
Product Name | Tilt Sealing Kit Hydraulic Cylinder Service Kit |
Model Number | KOMATSU D375A-2, D375A-3, D375A-3A, D375A-3D |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
Part Number | 707-98-74410 |
Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
CertifiC.A.Tion | ISO9001 |
Condition | 100% New |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
AppliC.A.Tion | Komatsu Dozer Tilt |
Preservation Notice | Closed, dry and avoid the sun |
Quality | Original quality, high performance |
Uses | Good oil resistance, wear resistance, and corrosion resistance |
Rod | 110MM |
Bore | 225MM |
Cylinder | 195-63-01311, 195-63-53401, 195-63-53200 |
High Light | Hydraulic Seal Kits, cylinder seal kit |

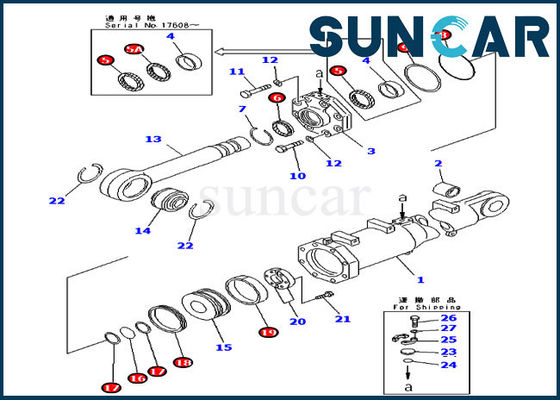

Related Parts:
Pos. | Part No. | Product Name | QYT. |
707-01-0Z390 | CYLINDER ASSEMBLY,(FINAL COATING) | 1 | |
195-63-53402 | CYLINDER ASSEMBLY | 1 | |
195-63-53401 | CYLINDER ASSEMBLY | 1 | |
1 | 195-63-53042 | • CYLINDER | 1 |
2 | 707-76-75060 | • BUSHING | 1 |
3 | 707-27-22330 | • HEAD,CYLINDER | 1 |
3 | 707-27-22291 | • HEAD,CYLINDER | 1 |
4 | 707-52-90850 | • BUSHING | 1 |
4 | 07177-01135 | • BUSHING | 1 |
5 | 707-51-11030 | • PACKING,ROD (KIT) | 1 |
5 | 707-51-11110 | • PACKING,ROD (KIT) | 1 |
5A | 707-51-11640 | • RING,BUFFER (KIT) | 1 |
6 | 198-63-94170 | • SEAL,DUST (KIT) | 1 |
7 | 07179-13126 | • RING,SNAP | 1 |
8 | 07000-15220 | • O-RING (KIT) | 1 |
9 | 07001-05220 | • RING,BACK-UP (KIT) | 1 |
10 | 01010-82795 | • BOLT | 6 |
11 | 01011-82705 | • BOLT | 2 |
12 | 01643-32780 | • WASHER | 8 |
12 | 01602-02783 | • WASHER,SPRING | 8 |
13 | 195-63-53420 | • ROD,PISTON | 1 |
14 | 195-71-51263 | • BUSHING | 1 |
15 | 707-36-22051 | • PISTON | 1 |
16 | 07000-B2090 | • O-RING (KIT) | 1 |
16 | 07000-12090 | • O-RING (KIT) | 1 |
17 | 07001-02090 | • RING,BACK-UP (KIT) | 2 |
18 | 707-44-22290 | • RING,PISTON (KIT) | 1 |
18 | 707-44-22280 | • RING,PISTON (KIT) | 1 |
19 | 07155-02250 | • RING,WEAR (KIT) | 1 |
20 | 707-40-22150 | • SPACER | 2 |
21 | 01010-61455 | • BOLT | 6 |
22 | 04071-00160 | • RING,SNAP | 2 |
23 | 07378-10500 | • HEAD | 2 |
24 | 07000-13022 | • O-RING | 2 |
25 | 07371-30500 | • FLANGE,SPLIT | 4 |
26 | 01010-80830 | • BOLT | 8 |
27 | 01643-50823 | • WASHER | 8 |
707-99-74450 | SERVICE KIT | 1 | |
707-98-74410 | SERVICE KIT | 1 |
Some Part Number Of Komatsu Bulldozer Cylinder Seal kit:
101-61-05010 | 195-63-05110 | 707-98-74110 | 707-99-34620 |
101-62-05020 | 195-63-05120 | 707-99-74130 | 707-99-34630 |
101-870-0510 | 195-63-05010 | 707-99-84200 | 707-99-52160 |
102-63-05020 | 195-63-05040 | 707-98-11350 | 707-99-43690 |
102-63-05010 | 195-63-05041 | 707-98-11360 | 707-99-52170 |
707-98-13420 | 195-63-05130 | 707-99-75600 | 707-98-52240 |
707-98-23070 | 707-98-56610 | 707-99-77620 | 707-99-52230 |
707-98-12750 | 707-98-74410 | 707-99-84050 | 707-99-52215 |
707-98-12740 | 707-98-74400 | 707-99-75530 | 707-98-52210 |
707-98-05460 | 707-98-74100 | 707-99-77400 | 707-99-25890 |
707-98-22290 | 707-98-81010 | 131-62-05080 | 707-99-25880 |
707-98-45620 | 707-99-56600 | 131-63-05050 | 707-98-52220 |
707-98-73010 | 707-99-56610 | 707-98-41010 | 707-99-40120 |
707-98-73020 | 707-99-74400 | 707-98-53410 | 707-98-28640 |
707-98-73400 | 707-99-74410 | 130-63-05070 | 150-81-05010 |
707-98-11020 | 707-99-74420 | 130-817-05030 | 154-61-05012 |
707-98-64400 | 707-99-74430 | 130-63-05020 | 154-61-05011 |
707-99-45525 | 707-99-74440 | 130-63-05050 | 154-61-05010 |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
