| Brand Name: | SUNCAR |
| Model Number: | 707-98-56625 KOMATSU D375A-3, D375A-3D, D375A-5D |
| MOQ: | Trial order acceptable |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P, Paypal |
707-98-56625 Blade Lift Cylinder Seal Kit Dozer Service Kit For D375A-3 D375A-5D Komatsu
| Product Name | Komatsu Blade Lift Cylinder Seal Kit |
| Model Number | KOMATSU D375A-3, D375A-3D, D375A-5D |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-56625 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer blade lift |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| High Light | Hydraulic seal kits, cylinder seal kit |

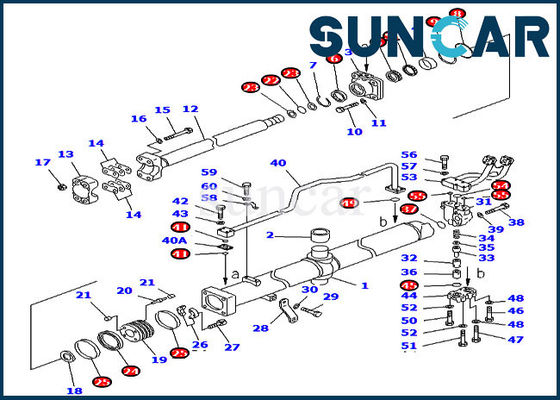

Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G1 | 707-03-X7200 | CYLINDER GROUP,L.H. (FINAL COATING) | |
| G2 | 707-03-X7210 | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| 195-63-08111 | CYLINDER ASSEMBLY | 1 | |
| 1 | 195-63-22141 | • CYLINDER | 1 |
| 2 | 195-63-13390 | • BUSHING | 2 |
| 3 | 707-27-15150 | • HEAD,CYLINDER | 1 |
| 4 | 707-52-90650 | • BUSHING | 1 |
| 5 | 707-51-90730 | • U-PACKING,ROD (KIT) | 1 |
| 5A | 707-51-90630 | • RING (KIT) | 1 |
| 6 | 195-63-94170 | • SEAL,DUST (KIT) | 1 |
| 7 | 07179-13104 | • RING,SNAP | 1 |
| 8 | 07000-52145 | • O-RING (KIT) | 1 |
| 9 | 07146-02146 | • RING,BACK-UP (KIT) | 1 |
| 10 | 01010-82785 | • BOLT | 4 |
| 11 | 01643-32780 | • WASHER | 4 |
| 12 | 195-63-22122 | • ROD,PISTON | 1 |
| 13 | 195-63-22171 | • CAP | 1 |
| 14 | 195-63-22272 | • SHIM, 1.0MM | 10 |
| 15 | 01011-82475 | • BOLT | 4 |
| 16 | 01643-32460 | • WASHER | 4 |
| 17 | 01580-12419 | • NUT | 4 |
| 18 | 707-40-15050 | • RETAINER | 1 |
| 195-63-22480 | • PISTON ASSEMBLY | 1 | |
| 19 | •• PISTON | 1 | |
| 20 | •• VALVE | 2 | |
| 20 | •• VALVE | 2 | |
| 21 | •• SEAT | 8 | |
| 22 | 07000-52055 | • O-RING (KIT) | 1 |
| 23 | 07001-02055 | • RING,BACK-UP (KIT) | 2 |
| 24 | 707-44-15180 | • RING,PISTON (KIT) | 1 |
| 25 | 707-39-15820 | • RING,WEAR (KIT) | 2 |
| 26 | 707-40-15060 | • SPACER | 2 |
| 27 | 01252-61035 | • BOLT | 6 |
| 28 | 195-63-13491 | • HOOK | 1 |
| 29 | 01010-81670 | • BOLT | 1 |
| 30 | 01643-31645 | • WASHER | 1 |
| 195-63-14300 | • VALVE ASSEMBLY,QUICK DROP | 1 | |
| 31 | •• BODY | 1 | |
| 32 | •• VALVE | 1 | |
| 33 | •• VALVE | 1 | |
| 34 | 195-63-14180 | •• SPRING | 1 |
| 35 | 01642-21216 | •• WASHER | 1 |
| 36 | 195-63-14163 | •• COLLAR | 1 |
| 37 | 07000-52055 | • O-RING (KIT) | 1 |
| 38 | 01011-81615 | • BOLT | 2 |
| 39 | 01643-31645 | • WASHER | 2 |
| 40 | 195-63-22570 | TUBE,L.H. | 1 |
| 40 | 195-63-22670 | TUBE,R.H. | 1 |
| 40A | 195-61-51410 | PLATE | 1 |
| 41 | 07000-53035 | O-RING (KIT) | 2 |
| 42 | 01010-81075 | BOLT | 4 |
| 43 | 01643-31032 | WASHER | 4 |
| 44 | 195-63-14130 | ELBOW | 1 |
| 45 | 07000-53048 | O-RING (KIT) | 1 |
| 46 | 01010-81270 | BOLT | 2 |
| 47 | 01010-81280 | BOLT | 2 |
| 48 | 01643-31232 | WASHER | 4 |
| 49 | 07000-53045 | O-RING (KIT) | 1 |
| 50 | 01010-81065 | BOLT | 2 |
| 51 | 01010-81075 | BOLT | 2 |
| 52 | 01643-31032 | WASHER | 4 |
| 53 | 195-63-22580 | TUBE,L.H. | 1 |
| 53 | 195-63-22680 | TUBE,R.H. | 1 |
| 54 | 07000-53045 | O-RING (KIT) | 1 |
| 55 | 07000-53038 | O-RING (KIT) | 2 |
| 56 | 01010-81270 | BOLT | 5 |
| 57 | 01643-31232 | WASHER | 5 |
| 58 | 07282-03411 | CLAMP | 1 |
| 59 | 01010-81020 | BOLT | 2 |
| 60 | 01643-31032 | WASHER | 2 |
| 707-98-56625 | SERVICE KIT | 2 |
When You Open And Repair The Cylinder, Please Follow Below Operation:
1. Take off the cylinder from the machine.
2. Remove the head assembly and the rod assembly from the stick cylinder group.
3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.
4. Measure the seal kits before fitting.
5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.
Our Services:
1. We will respond to your inquiry shortly.
2. We provide competitive price and high quality products.
3. Professional staff will help you solve product problems.
4. We can design mold opening according to customer needs.
5. We mainly produce seals& rubber products.
6. 100% quality control, 100% full inspection before packaging to ensure zero defect.
7. We can provide you with OEM services with your own trademark.
8. Good after-sales service, please contact me if you have any questions.
9. Looking forward to your inquiry.
